Integra™ Center Console Midsection Shelving Options
Refer to: the Cabinet Color Options for the order number extension of your desired color.
Pebble Grey
|
Model |
FCC |
| Serial Number | All |

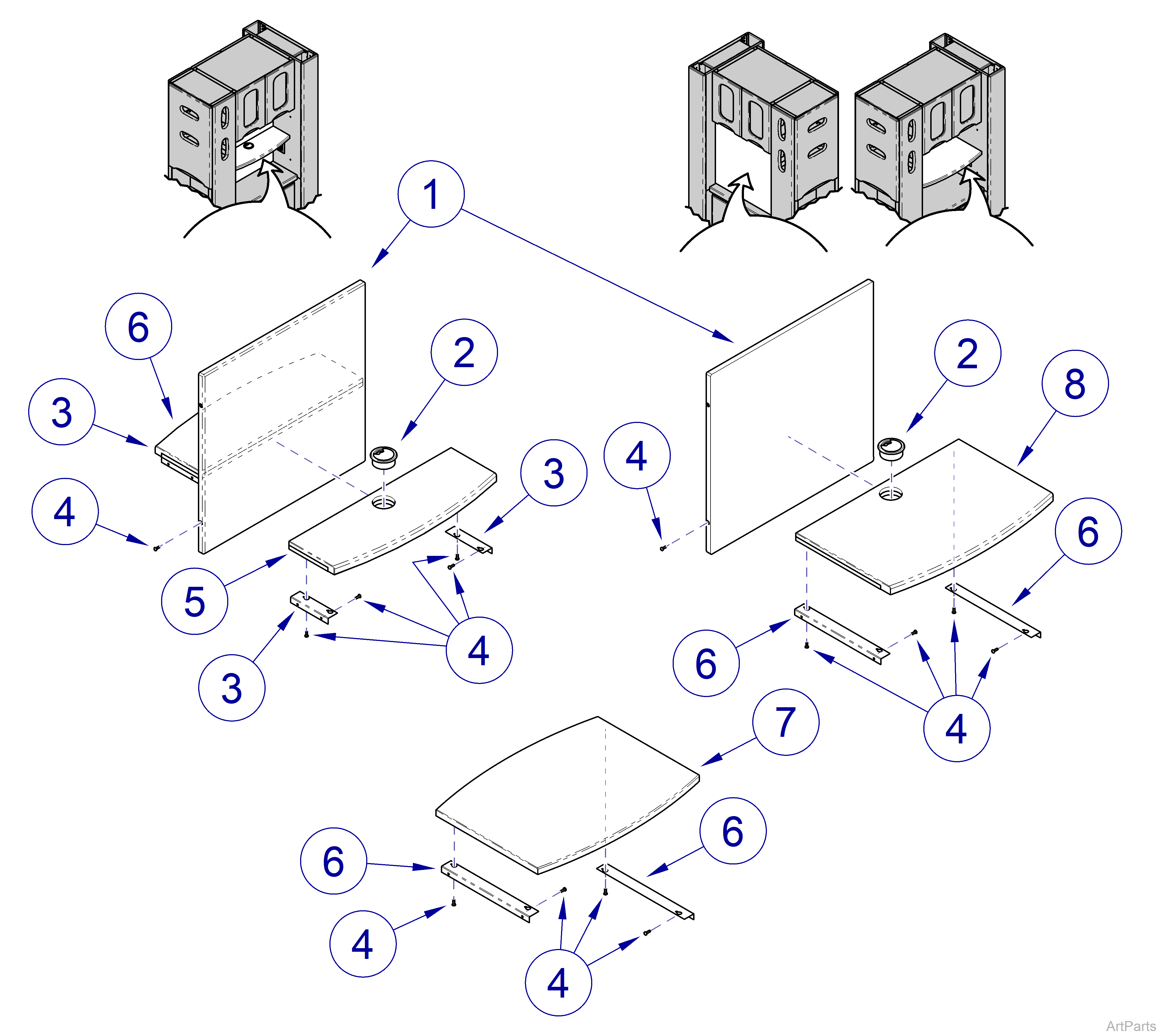

| Integra™ Center Console Midsection Shelving Options | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
24” Privacy Panel Options | ||
| 063-9993-01-00 | Non-Lead Privacy Panel | 1 | |
| 068-0065-01-00 | Lead Privacy Panel | 1 | |
|
2 |
053-1160-00 | 2.375” Wire Grommet | 1 |
|
3 |
050-7646-00-216 | 5.5” Shelf Bracket | 1 |
|
4 |
040-0010-12 | Screw #24-5/8” | AR |
|
5 |
24” Half Shelf Options | ||
| 029-4690-00-xxx | Corian Half Shelf | 1 | |
| 068-0568-00-xxx | Laminate Half Shelf | 1 | |
| 068-0583-00-xxx | Quartz Half Shelf | 1 | |
|
6 |
050-7651-00-216 | 12.75” Shelf Bracket | 1 |
|
7 |
24” Pass Thru Shelf Options | ||
| 029-4753-00-xxx | Corian Pass Thru Shelf | 1 | |
| 068-0581-00-xxx | Laminate Pass Thru Shelf | 1 | |
| 068-0584-00-442 | Quartz Pass Thru Shelf | 1 | |
|
8 |
24” Full Shelf Options | ||
| 029-4697-00-xxx | Corian Full Shelf | 1 | |
| 068-0567-00-xxx | Laminate Full Shelf | 1 | |
| 068-0582-00-xxx | Quartz Full Shelf | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Frost White
|
Model |
FCC |
| Serial Number | All |
| Integra™ Center Console Midsection Shelving Options | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
24” Privacy Panel Options | ||
| 068-0595-00-00 | Non-Lead Privacy Panel | 1 | |
| 068-0596-00-216 | Lead Privacy Panel | 1 | |
|
2 |
053-1160-00 | 2.375” Wire Grommet | 1 |
|
3 |
050-7646-00-791 | 5.5” Shelf Bracket | 1 |
|
4 |
040-0010-12 | Screw #24-5/8” | AR |
|
5 |
24” Half Shelf Options | ||
| 029-4690-00-xxx | Corian Half Shelf | 1 | |
| 068-0568-00-xxx | Laminate Half Shelf | 1 | |
| 068-0583-00-xxx | Quartz Half Shelf | 1 | |
|
6 |
050-7651-00-791 |
12.75” Shelf Bracket | 1 |
|
7 |
24” Pass Thru Shelf Options | ||
| 029-4753-00-xxx | Corian Pass Thru Shelf | 1 | |
| 068-0581-00-xxx | Laminate Pass Thru Shelf | 1 | |
| 068-0584-00-442 | Quartz Pass Thru Shelf | 1 | |
|
8 |
24” Full Shelf Options | ||
| 029-4697-00-xxx | Corian Full Shelf | 1 | |
| 068-0567-00-xxx | Laminate Full Shelf | 1 | |
| 068-0582-00-442 | Quartz Full Shelf | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
