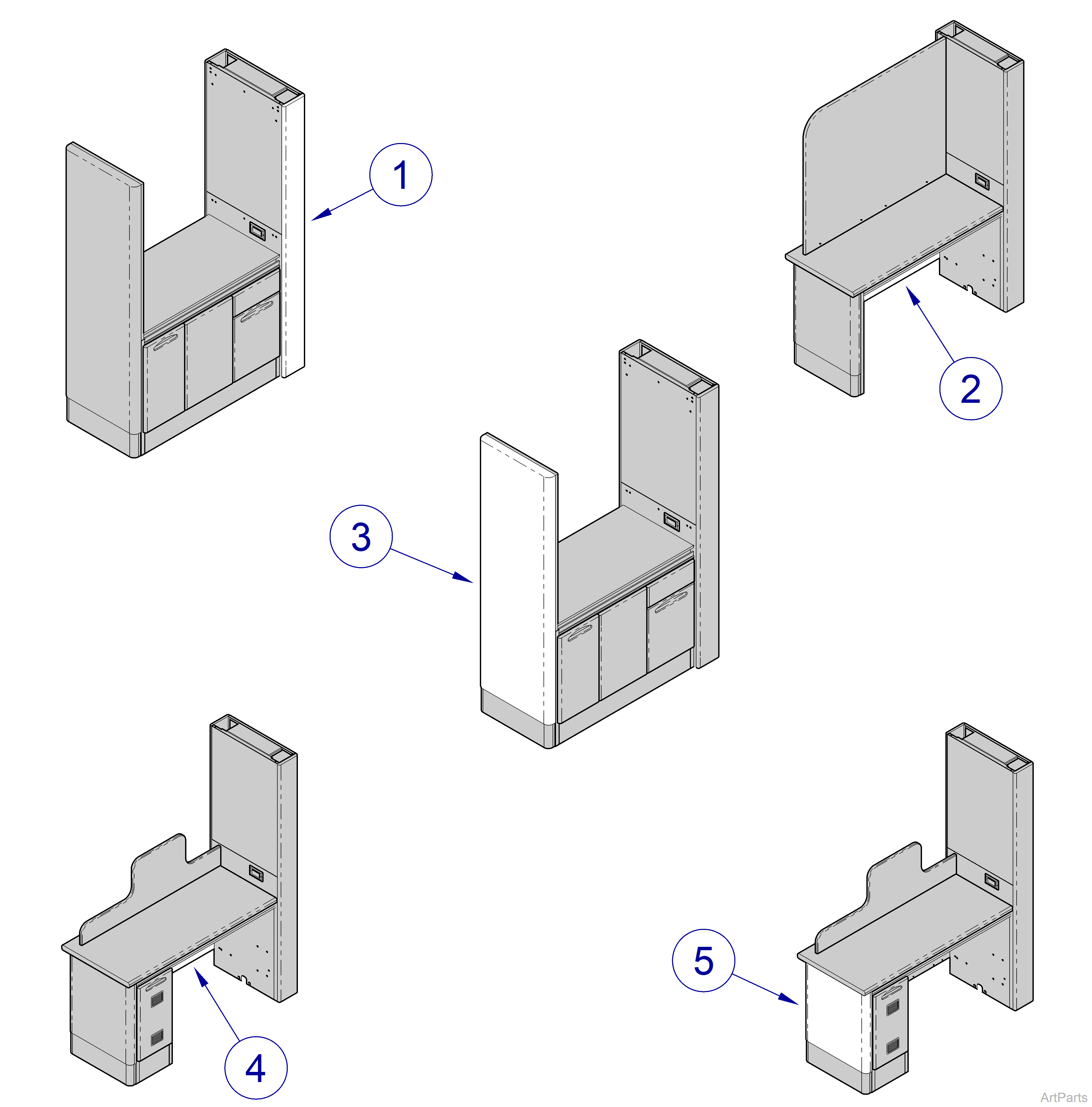

Integra™ Center Console Equipment End Panels
All panels must be ordered separately to specify color.
Refer to: the Cabinet Color Options for the order number extension of your desired color.
Pebble Grey
Date Range: Prior to 9/25/2014
|
Model |
FCC10672 | FCC10690 | FCC11272 | FCC11290 |
| Date | Prior to 9/25/2014 | Prior to 9/25/2014 | Prior to 9/25/2014 | Prior to 9/25/2014 |
| Integra™ Center Console Equipment End Panels | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Column Side Panel Options | ||
| 029-4830-00 | Column Side Panel Assembly 72” | AR | |
| 063-9989-00-xxx | Column Side Panel 72" | AR | |
| 029-4830-01 | Column Side Panel Assembly 90” | AR | |
| 063-9989-01-xxx | Column Side Panel 90" | AR | |
| 029-4830-02 | Lead Column Side Panel Assembly 72” | AR | |
| 068-0059-00-999 | Lead Column Side Panel 72" | AR | |
| 029-4830-03 | Lead Column Side Panel Assembly 90” | AR | |
| 068-0059-01-999 | Lead Column Side Panel 90" | AR | |
|
2 |
068-0524-00-xxx | Privacy Panel 40.75” | AR |
|
3 |
End Panel Options | ||
| 068-0571-00-xxx | End Panel 72” | 1 | |
| 068-0571-01-xxx | End Panel 90” | 1 | |
| 050-7654-00-216 | Metal Rounded End Cap | 1 | |
| 040-0010-109 | Screw | 10 | |
|
4 |
068-0525-00-xxx | Privacy Panel 36” | AR |
|
5 |
068-0571-02-xxx | End Panel 32” | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Date Range: 9/25/2014 thru Present
|
Model |
FCC10672 | FCC10690 | FCC11272 | FCC11290 |
| Date | 9/25/2014 thru Present | 9/25/2014 thru Present | 9/25/2014 thru Present | 9/25/2014 thru Present |
| Integra™ Center Console Equipment End Panels | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Column Side Panel Options | ||
| 029-4830-00 | Column Side Panel Assembly 72” | AR | |
| 063-9989-00-xxx | Column Side Panel 72" | AR | |
| 029-4830-01 | Column Side Panel Assembly 90” | AR | |
| 063-9989-01-xxx | Column Side Panel 90" | AR | |
| 029-4830-02 | Lead Column Side Panel Assembly 72” | AR | |
| 068-0059-00-999 | Lead Column Side Panel 72" | AR | |
| 029-4830-03 | Lead Column Side Panel Assembly 90” | AR | |
| 068-0059-01-999 | Lead Column Side Panel 90" | AR | |
|
2 |
068-0524-00-xxx | Privacy Panel 40.75” | AR |
|
3 |
End Panel Options | ||
| 068-1127-00-xxx | End Panel 72” | AR | |
| 068-1127-01-xxx | End Panel 90” | AR | |
|
4 |
068-0525-00-xxx | Privacy Panel 36” | AR |
|
5 |
068-1127-02-xxx | End Panel 32” | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Frost White
Date Range: Prior to 9/25/2014
|
Model |
FCC10672 | FCC10690 | FCC11272 | FCC11290 |
| Date | Prior to 9/25/2014 | Prior to 9/25/2014 | Prior to 9/25/2014 | Prior to 9/25/2014 |
| Integra™ Center Console Equipment End Panels | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Column Side Panel Options | ||
| 029-4830-00 | Column Side Panel Assembly 72” | AR | |
| 063-9989-00-xxx | Column Side Panel 72" | AR | |
| 029-4830-01 | Column Side Panel Assembly 90” | AR | |
| 063-9989-01-xxx | Column Side Panel 90" | AR | |
| 029-4830-02 | Lead Column Side Panel Assembly 72” | AR | |
| 068-0059-00-999 | Lead Column Side Panel 72" | AR | |
| 029-4830-03 | Lead Column Side Panel Assembly 90” | AR | |
| 068-0059-01-999 | Lead Column Side Panel 90" | AR | |
|
2 |
068-0524-00-xxx | Privacy Panel 40.75” | AR |
|
3 |
End Panel Options | ||
| 068-1127-00-xxx | End Panel 72” | 1 | |
| 068-1127-01-xxx | End Panel 90” | 1 | |
| 050-9981-00-xxx | Metal Rounded End Cap | 1 | |
| 040-0010-109 | Screw | 10 | |
|
4 |
068-0525-00-xxx | Privacy Panel 36” | AR |
|
5 |
068-0571-02-xxx | End Panel 32” | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Date Range: 9/25/2014 thru Present
|
Model |
FCC10672 | FCC10690 | FCC11272 | FCC11290 |
| Date | 9/25/2014 thru Present | 9/25/2014 thru Present | 9/25/2014 thru Present | 9/25/2014 thru Present |
| Integra™ Center Console Equipment End Panels | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Column Side Panel Options | ||
| 029-6388-00 | Column Side Panel Assembly 72” | AR | |
| 068-1026-00-xxx | Column Side Panel 72" | AR | |
| 029-6388-01 | Column Side Panel Assembly 90” | AR | |
| 068-1026-01-xxx | Column Side Panel 90" | AR | |
| 029-6388-02 | Lead Column Side Panel Assembly 72” | AR | |
| 068-1095-00-xxx | Lead Column Side Panel 72" | AR | |
| 029-6388-03 | Lead Column Side Panel Assembly 90” | AR | |
| 068-1095-01-xxx | Lead Column Side Panel 90" | AR | |
|
2 |
068-1060-00-xxx | Privacy Panel 40.75” | AR |
|
3 |
End Panel Options | ||
| 068-1127-00-xxx | End Panel 72” | AR | |
| 068-1127-01-xxx | End Panel 90” | AR | |
|
4 |
068-1061-00-xxx | Privacy Panel 36” | AR |
|
5 |
068-1127-02-xxx | End Panel 32” | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
