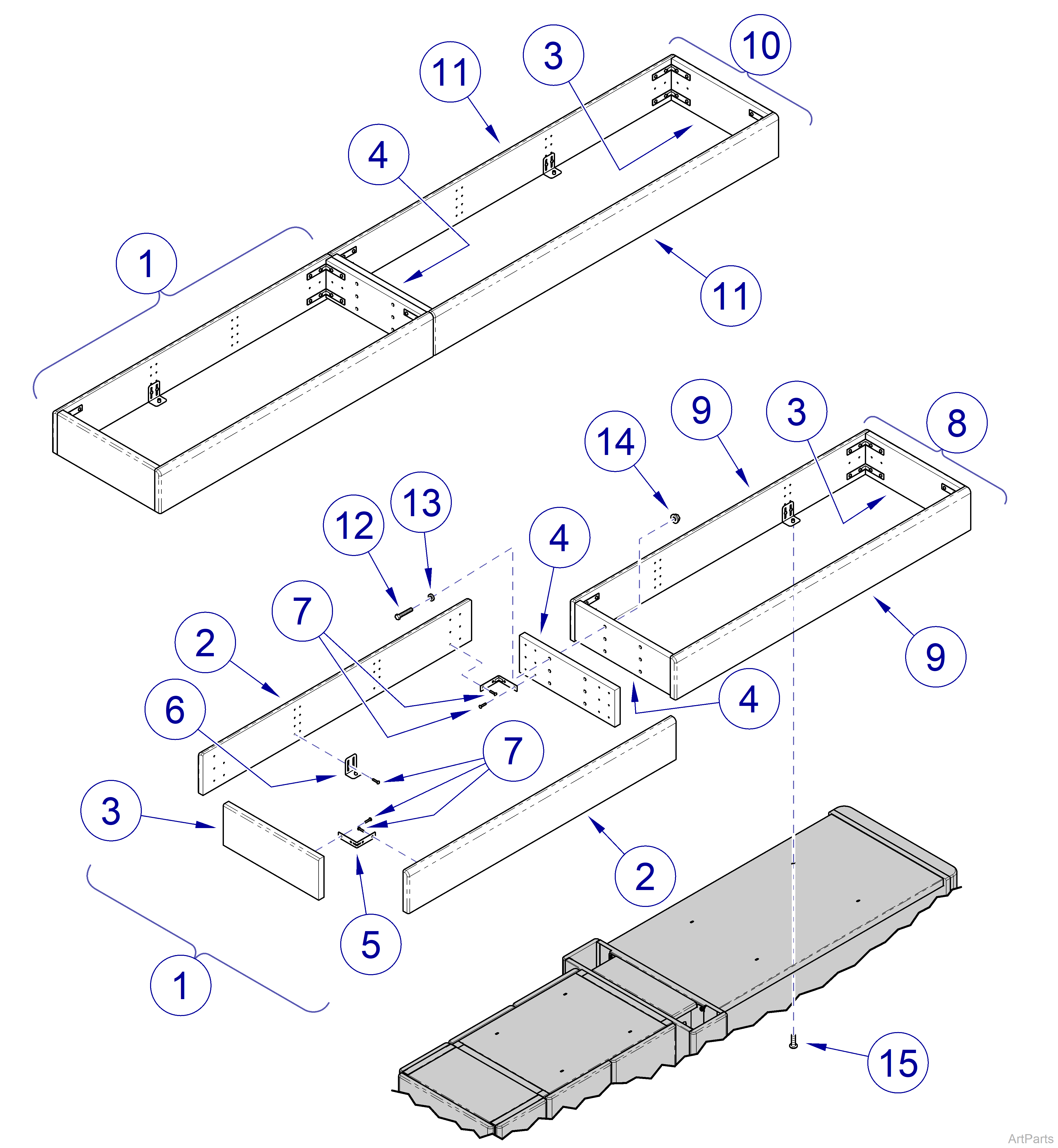

Integra™ Center Console Top Extension Assembly
All panels must be ordered separately to specify color.
Refer to: the Cabinet Color Options for the order number extension of your desired color.
Pebble Grey
|
Model |
FCC10690 | FCC11290 |
| Serial Number | All | All |
| Integra™ Center Console Top Extension Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-4766-00 | 38” Top Extension Assembly - includes items 2 thru 7 | 1 |
|
2 |
068-0591-00-xxx | 38” Side Panel - Specify Color | 2 |
|
3 |
068-0005-00-xxx | End Panel - Specify Color | 1 |
|
4 |
068-0006-00 | Support Board - Specify Color | 1 |
|
5 |
016-1525-00 | Corner Brace | 8 |
|
6 |
050-5494-50 | Mounting Bracket | 2 |
|
7 |
040-0008-46 | Pan Head Screw #8 x 3/4” | 36 |
|
8 |
029-4766-01 | 41.88” Top Extension Assembly - includes items 3 thru 7 and 9 | 1 |
|
9 |
068-0591-01-xxx | 41.88” Side Panel - Specify Color | 2 |
|
10 |
029-4766-02 | 47.88” Top Extension Assembly - includes items 3 thru 7 and 11 | 1 |
|
11 |
068-0591-02-xxx | 47.88” Side Panel - Specify Color | 2 |
|
12 |
040-0250-69 | Hex Head Screw 1/4 -20 x 2-1/4” | 4 |
|
13 |
045-0001-02 | Flat Washer 1/4” | 4 |
|
14 |
041-0250-13 | Whiz Lock Nut 1/4-20 | 4 |
|
15 |
040-0010-12 | Pan Head Screw #10-24 x 5/8” | 4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Frost White
|
Model |
FCC10690 | FCC11290 |
| Serial Number | All | All |
| Integra™ Center Console Top Extension Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-6381-00 | 38” Top Extension Assembly - includes items 2 thru 7 | 1 |
|
2 |
068-1047-00-xxx | 38” Side Panel | 2 |
|
3 |
068-1027-00-xxx | End Panel | 1 |
|
4 |
068-1028-00-xxx | Support Board | 1 |
|
5 |
016-1525-00 | Corner Brace | 8 |
|
6 |
050-5494-00-791 |
Mounting Bracket | NSS |
|
7 |
040-0008-46 | Pan Head Screw #8 x 3/4” | 36 |
|
8 |
029-6381-01 | 41.88” Top Extension Assembly - includes items 3 thru 7 and 9 | 1 |
|
9 |
068-1047-01-xxx | 41.88” Side Panel - Specify Color | 2 |
|
10 |
029-6381-02 | 47.88” Top Extension Assembly - includes items 3 thru 7 and 11 | 1 |
|
11 |
068-1047-02-xxx | 47.88” Side Panel | 2 |
|
12 |
040-0250-69 | Hex Head Screw 1/4 -20 x 2-1/4” | 4 |
|
13 |
045-0001-02 | Flat Washer 1/4” | 4 |
|
14 |
041-0250-13 | Whiz Lock Nut 1/4 -20 | 4 |
|
15 |
040-0010-12 | Pan Head Screw #10-24 x 5/8” | 4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
