Integra™ Center Console Task Light Assembly
Pebble Grey
|
Model |
FCC10672 | FCC10690 |
| Serial Number | All | All |
| Integra™ Center Console Task Light Assembly | |||
|---|---|---|---|

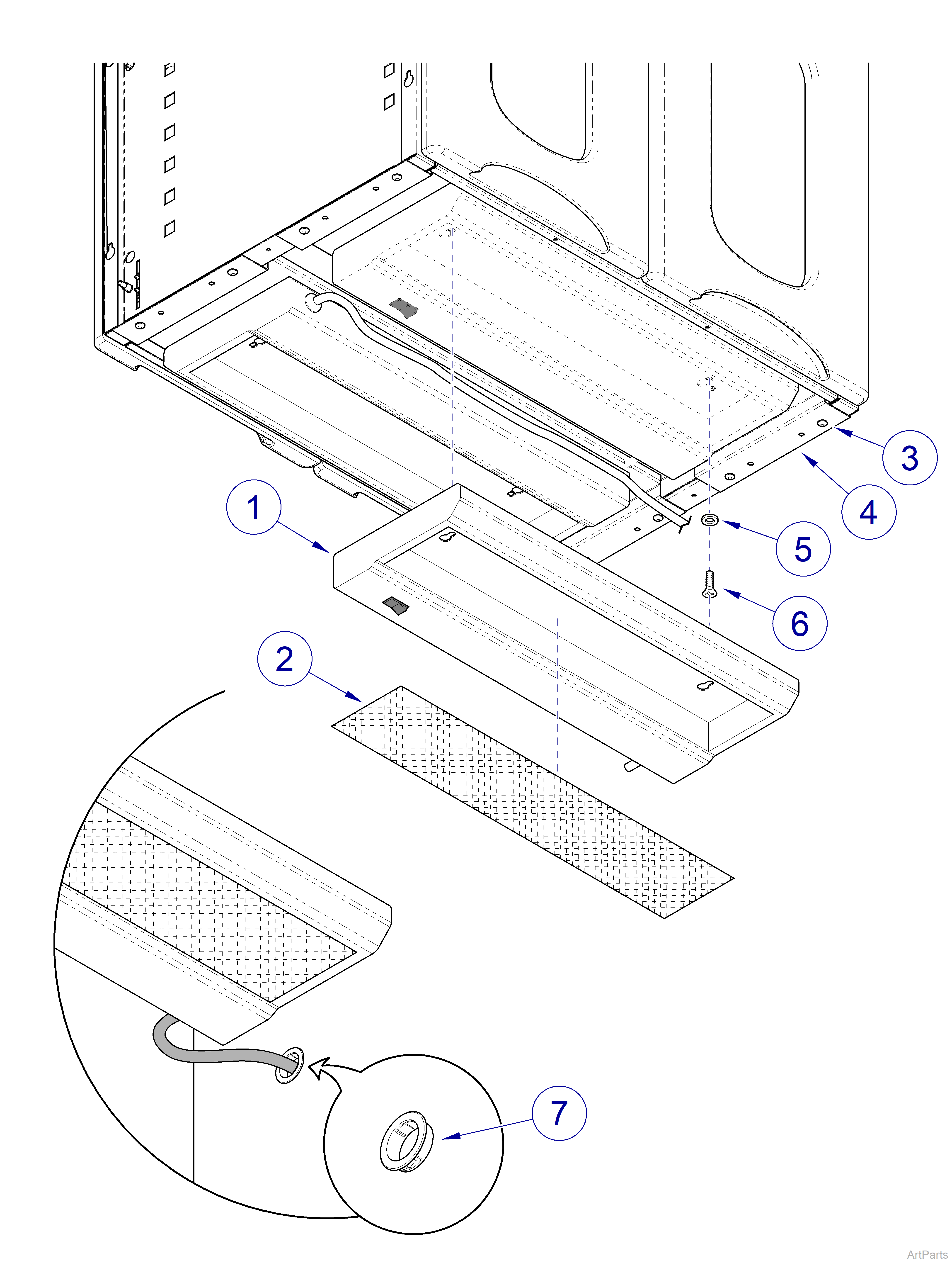

| Item | Part Number | Description | Qty |
|
1 |
18” Task Light w/ 9’ cord - includes item 2 |
1 |
|
|
2 |
015-1278-20 | 18” Task Light Lens | 1 |
|
3 |
040-0010-109 | Phillips Pan Head Screw 0.190-24 x 0.375” | 4 |
|
4 |
029-4687-00 |
Task Light Bracket Assembly - includes nutserts | NSS |
|
5 |
045-0001-08 | Lock Tooth Washer #10 | 2 |
|
6 |
040-0010-12 | Pan Screw #10-24 x 5/8” | 2 |
|
7 |
053-0068-12 | Snap Bushing 1 1/2” | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Frost White
|
Model |
FCC10672 | FCC10690 |
| Serial Number | All | All |
| Integra™ Center Console Task Light Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
18” Task Light w/ 9’ cord - includes item 2 |
1 |
|
|
2 |
015-1278-20 | 18” Task Light Lens | 1 |
|
3 |
040-0010-109 | Phillips Pan Head Screw 0.190-24 x 0.375” | 4 |
|
4 |
029-6840-00 | Task Light Bracket Assembly - includes nutserts | 1 |
|
5 |
045-0001-08 | Lock Tooth Washer #10 | 2 |
|
6 |
040-0010-12 | Pan Screw #10-24 x 5/8” | 2 |
|
7 |
053-0068-12 | Snap Bushing 1 1/2” | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
