Integra™ Center Console Complete Hardware Kit

Model

 FCC
Serial Number All

Integra™ Center Console Complete Hardware Kit

Integra™ Center Console Complete Hardware Kit
Item Part Number Description Qty

1

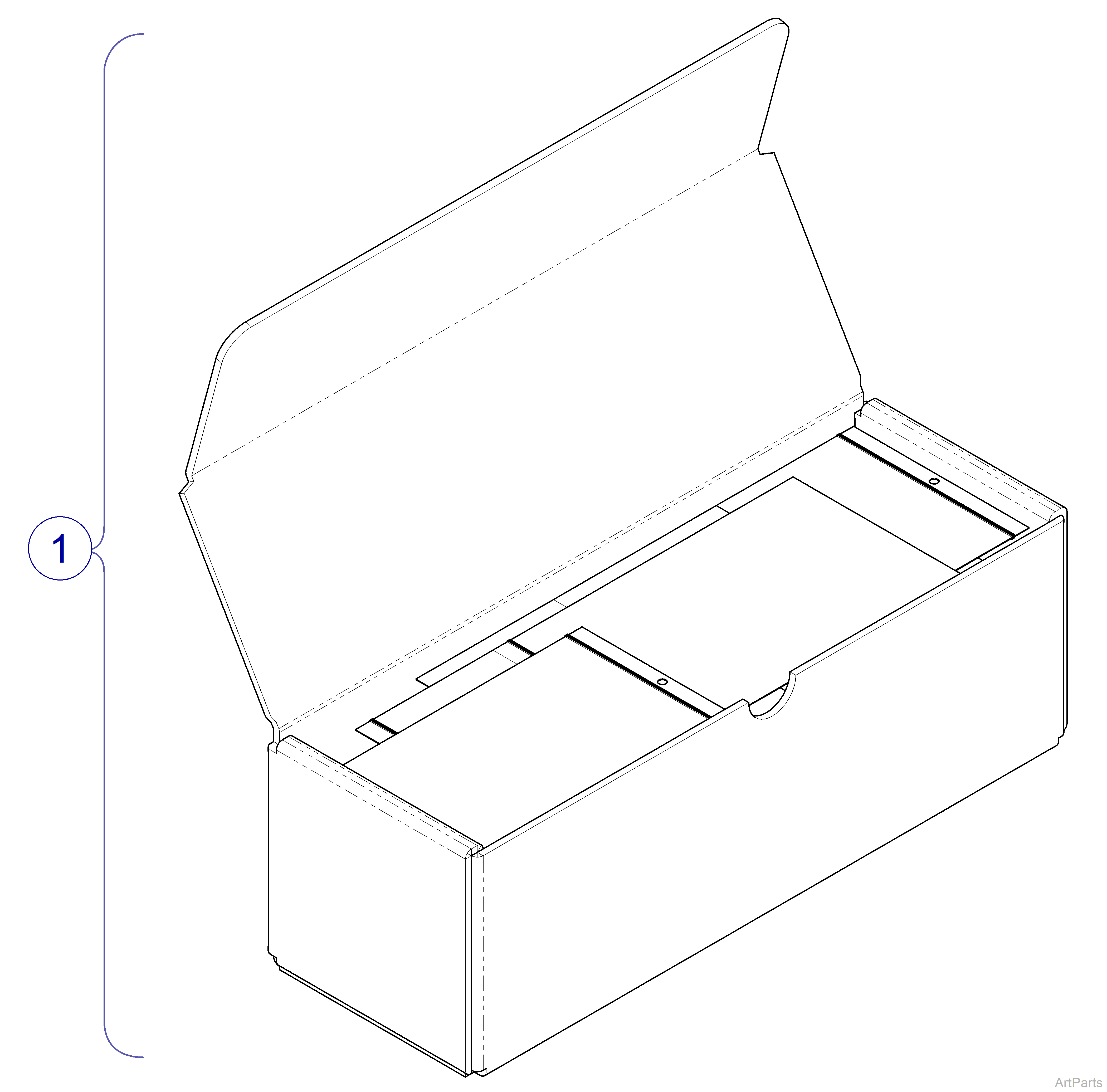

 002-1606-00 Hardware Kit - includes items 2 thru 37 1
Items 2 thru 37 Not Shown

2

 042-0208-00 Bag A - 3/8” x 3-1/2” Concrete Anchor 10

3

 042-0209-00 Bag B - 3/8” x 2-1/2” Hex Lag Screw 10

4

 106009 Bag C - 1/4” x 2” Hex Lag Screw 4

5

 040-0312-16 Bag D - 5/16”-18 x 2” Hex Head Screw 6

6

 040-0250-69 Bag E - 1/4”-20 x 2-1/4” Hex Head Screw 4

7

 040-0010-156 Bag F - 10-24 x 2” Pan Head Phillips Screw 4

8

 042-0144-00 Bag G - 10-24 x 3/4” Special Hex Head Screw 13

9

040-0010-100

 Bag H - 10-13 1/2” Pan Head Wood Screw NSS

10

 040-0010-48 Bag I - 10-13 5/8” Pan Head Wood Screw 14

11

 040-0010-109 Bag J - 10-24 x 3/8” Pan Head Phillips Screw 8

12

 040-0010-12 Bag K - 10-24 x 5/8” Pan Head Phillips Screw 32

13

 040-0010-157 Bag L - 10-24 x 5/8 Pan Head Phillips Screw w/ Lock Washer 34

14

 041-0375-01 Bag M - 3/8”-16 Hex Nut 10

15

 041-0312-01 Bag N - 5/16”-18 Hex Flange Nut 6

16

 045-0001-49 Bag O - 3/8” Plain Washer 10

17

 045-0001-02 Bag P - 1/4” Plain Washer 8

18

 045-0001-46 Bag Q - 5/16” Plain Washer 12

19

 045-0001-00 Bag R - 7/32” Plain Washer 4

20

 045-0001-27 Bag S - 5/16” Lock Washer 6

21

 045-0001-03 Bag T - 1/4” Lock Washer 4

22

 045-0001-23 Bag U - 1/4” Black Oxide Lock Washer 4

23

 050-4108-50 Towel Plate Partition 2

24

050-5512-50

 Bi-Fold Door Guide

NLA

25

 053-0068-12 Snap Bushing SB-1500-18 2

26

 053-1160-00 2.375 Diameter Wire Grommet 2

27

 120227-50 0.75 Diameter Hole Plug Button 2

28

 050-5812-50 Mounting Clip Anchor 8

29

 109191 1/2” Cord Clip 6

30

 053-1327-50 1.5 Diameter Hole Plug 2

31

 016-0916-00 Cover Cap 60

32

 029-1761-02 Shelf Clip Bag Assembly - Qty. 4 10

33

050-6313-50

 X-Ray Mount Washer NLA

34

 053-1374-00 3/4” Cord Clip 2

35

 053-0716-00 Bumper 8

36

 053-1242-00 Shim 8

37

 003-1956-00 Installation Instructions 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 FCC
Serial Number All

Integra™ Center Console Complete Hardware Kit

Integra™ Center Console Complete Hardware Kit
Item Part Number Description Qty

1

 002-1970-00 Hardware Kit - includes items 2 thru 37 1
Items 2 thru 37 Not Shown

2

 042-0208-00 Bag A - 3/8” x 3-1/2” Concrete Anchor 10

3

 042-0209-00 Bag B - 3/8” x 2-1/2” Hex Lag Screw 10

4

 106009 Bag C - 1/4” x 2” Hex Lag Screw 4

5

 040-0312-16 Bag D - 5/16”-18 x 2” Hex Head Screw 6

6

 040-0250-69 Bag E - 1/4”-20 x 2-1/4” Hex Head Screw 4

7

 040-0010-156 Bag F - 10-24 x 2” Pan Head Phillips Screw 4

8

 042-0144-00 Bag G - 10-24 x 3/4” Special Hex Head Screw 13

9

040-0010-100

 Bag H - 10-13 1/2” Pan Head Wood Screw NSS

10

 040-0010-48 Bag I - 10-13 5/8” Pan Head Wood Screw 14

11

 040-0010-109 Bag J - 10-24 x 3/8” Pan Head Phillips Screw 8

12

 040-0010-12 Bag K - 10-24 x 5/8” Pan Head Phillips Screw 32

13

 040-0010-157 Bag L - 10-24 x 5/8 Pan Head Phillips Screw w/ Lock Washer 34

14

 041-0375-01 Bag M - 3/8”-16 Hex Nut 10

15

 041-0312-01 Bag N - 5/16”-18 Hex Flange Nut 6

16

 045-0001-49 Bag O - 3/8” Plain Washer 10

17

 045-0001-02 Bag P - 1/4” Plain Washer 8

18

 045-0001-46 Bag Q - 5/16” Plain Washer 12

19

 045-0001-00 Bag R - 7/32” Plain Washer 4

20

 045-0001-27 Bag S - 5/16” Lock Washer 6

21

 045-0001-03 Bag T - 1/4” Lock Washer 4

22

 045-0001-23 Bag U - 1/4” Black Oxide Lock Washer 4

23

 050-4108-00-791 Towel Plate Partition 2

24

050-5512-00-791

 Bi-Fold Door Guide

NLA

25

 053-0068-12 Snap Bushing SB-1500-18 2

26

 053-1160-00 2.375 Diameter Wire Grommet 2

27

 120227 0.75 Diameter Hole Plug Button 2

28

050-5812-00-791

 Mounting Clip Anchor NSS

29

 109191 1/2” Cord Clip 6

30

 053-0050-15 1.5 Diameter Hole Plug 2

31

 016-0916-01 Cover Cap 60

32

 029-1761-02 Shelf Clip Bag Assembly - Qty. 4 10

33

050-6313-00-791

 X-Ray Mount Washer NLA

34

 053-1374-00 3/4” Cord Clip 2

35

 053-0716-00 Bumper 8

36

 053-1242-00 Shim 8

37

 003-1956-00 Installation Instructions 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
