Integra™ Center Console Door and Drawer Components
|
Model |
FCC |
| Serial Number | All |

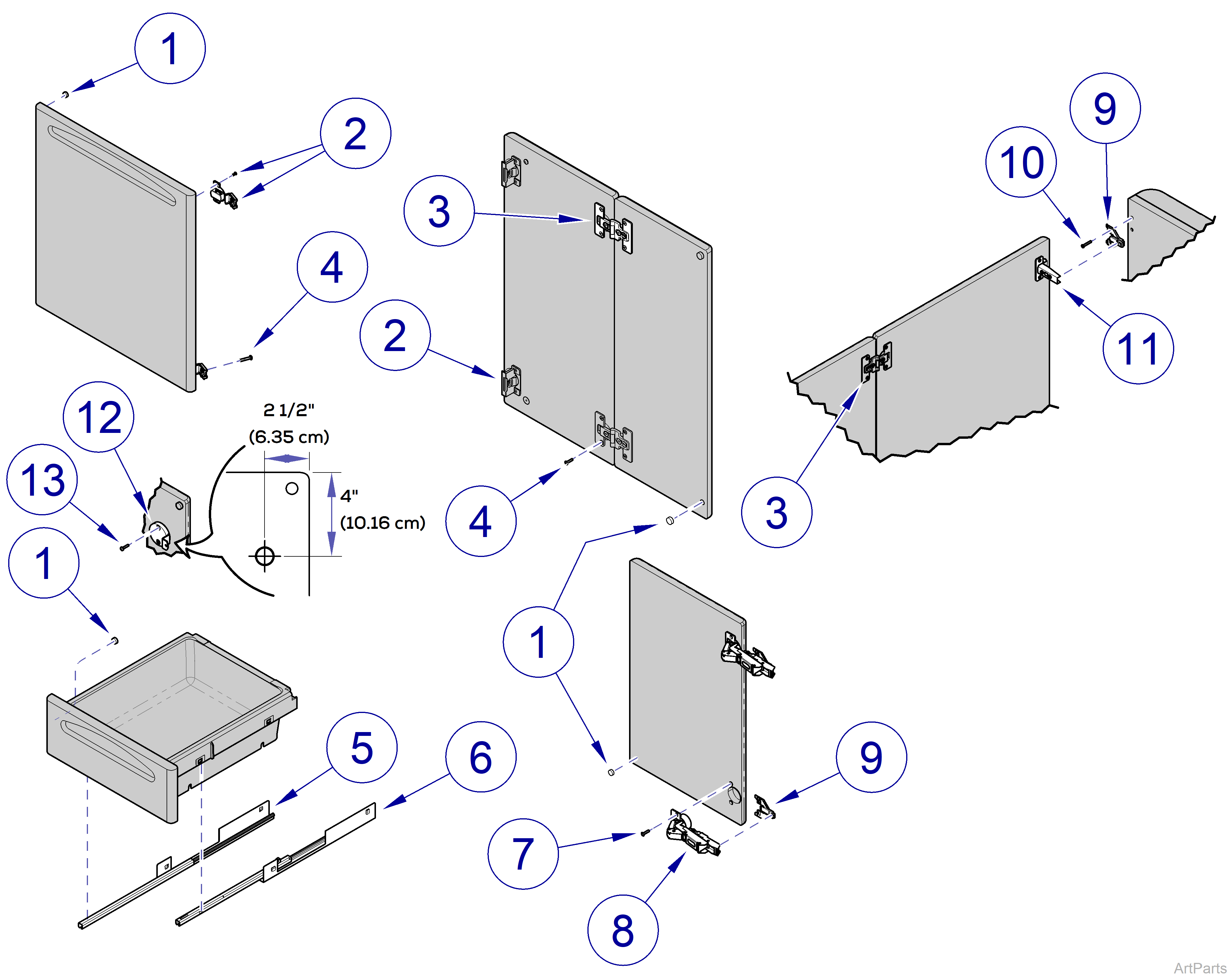

| Integra™ Center Console Door and Drawer Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
053-0716-00 | Bumper - included w/ drawer-door assembly number | AR |
|
2 |
016-0510-00 | Hinge - included w/ door assembly number | 2 |
|
3 |
016-0927-00 | Folding Door Hinge | 2 |
|
4 |
040-0006-71 | Phillips Particle Board FH Screw #6 x 5/8” | AR |
|
5 |
016-0513-00 | LH Slide | 1 |
|
6 |
016-0513-01 | RH Slide | 1 |
|
7 |
016-0510-02 | Flat Head Screw #6 | AR |
|
8 |
016-0783-00 | Work Surface Door Hinge | 1 |
|
9 |
016-0783-01 | Mounting Plate | 1 |
|
10 |
040-0008-38 | Phillips Flat Head Screw #8-32 x 3/4 | 1 |
|
11 |
016-0930-00 | 120° Top Clip-On Hinge | 1 |
|
12 |
002-1415-00 |
Single Door Lock Kit - includes item 13 -00 is service kit unless lock # is legible on lock or key: -01 thru -13, Example: Lock # 105T = Kit # -05 |
1 |
|
13 |
040-0006-63 | Screw #6 x 5/8” | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
