Integra™ Center Console Column Electrical Assembly Wiring Diagram

Model

 FCC
Serial Number All

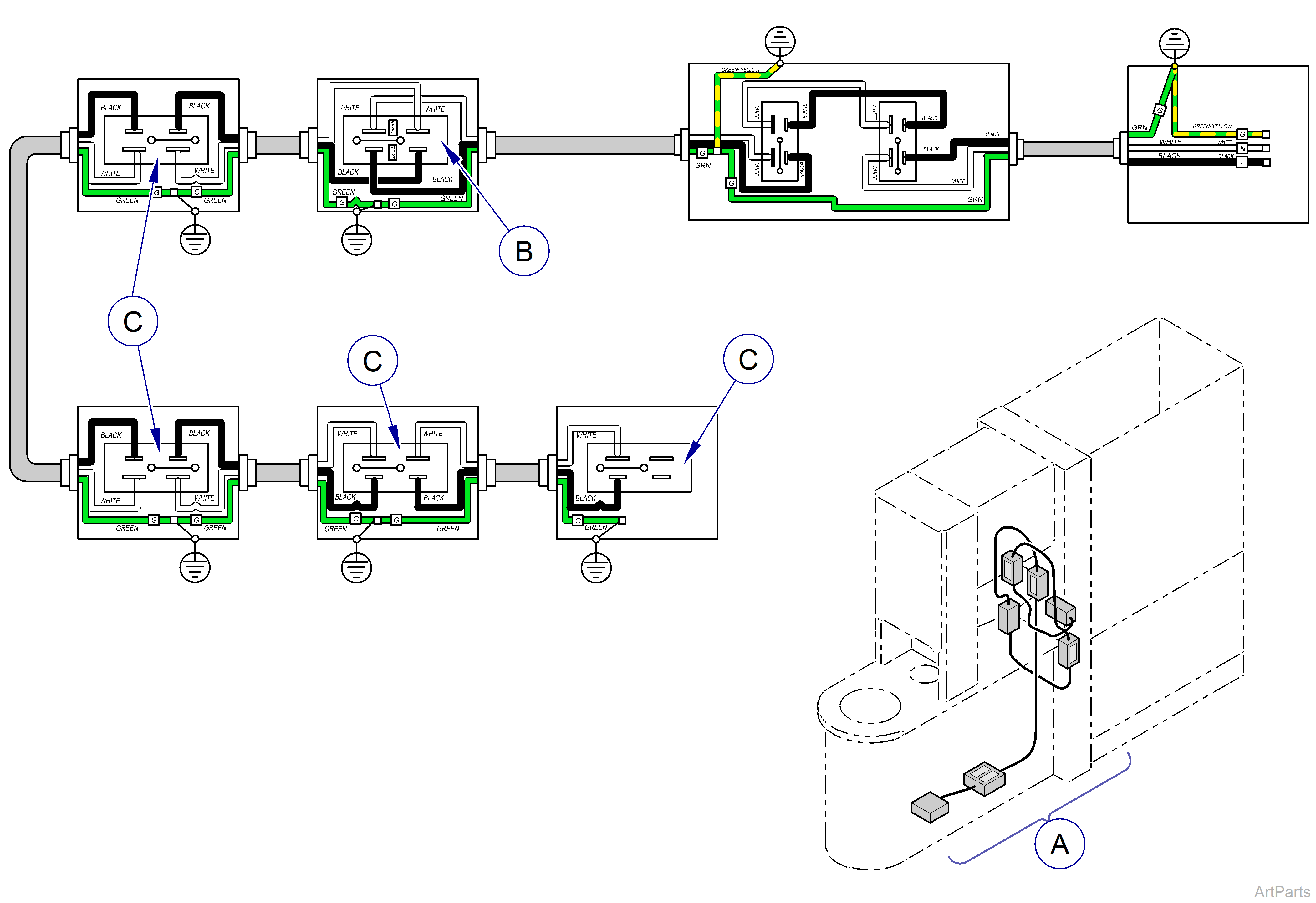

Integra™ Center Console Column Electrical Assembly Wiring Diagram

Item Part Number Description

A

 FCC Column Electrical Assembly - includes receptacles


029-4477-00

 Pebble Grey Electrical Assembly
  029-6821-00 Frost White Electrical Assembly

B

 015-2295-00 GFCI Duplex Receptacle

C

 015-1575-00 Duplex Receptacle
Color Abbreviation Chart

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
