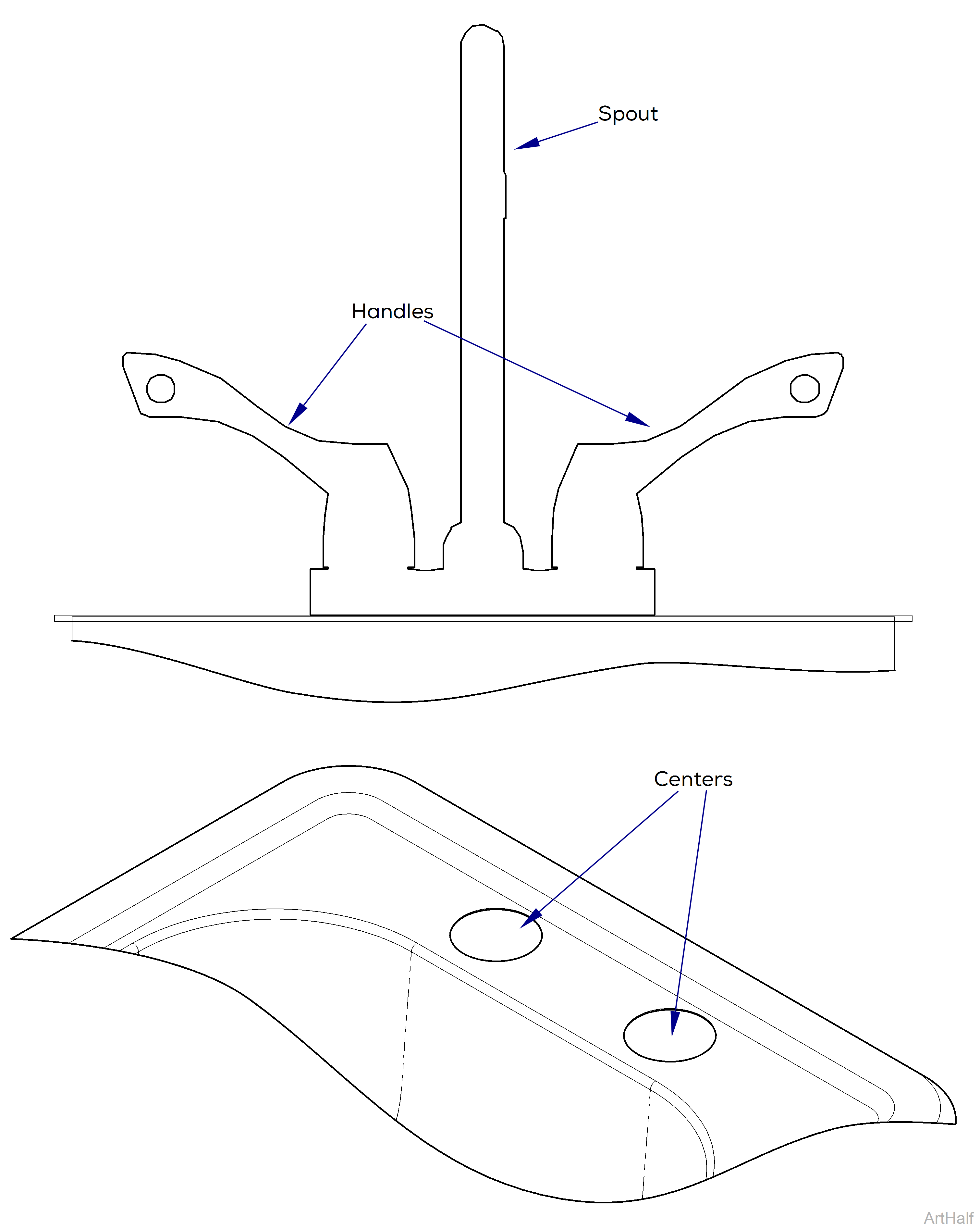

CFT-3GS4WB-2: Manufacturer: Moen #8938

•Hole Deck Mount, 4” Centers (2)

•4.31” Wristblade Handles

•3.5” Swivel Gooseneck Spout

•Powdercoated 18 gauge cold rolled steel; multi-piece shell and frame design; riveted and press joined (Tog-L-Loc®)

•Front/Back: 12 Mil. Seamless polymer-covered front; melamine back (Frost in color).

•Core: 45 lb. LEED IEQ compliant MDF board, 3/4 inch thick. All composite wood material to meet CARB P2 emission std of CARB reg. 91320.2.

•Hinges: Manufacturer’s standard Blum®, concealed, self-closing. 110 deg. opening, nickel-plated metal, clip-on mount, three adjustment points.

•Pulls: 128 mm pull offering for Serenity.

•Deep Drawer Construction: One piece molded polystyrene drawer bodies w/rounded corners; (Frost in color).

•File Drawer Construction: 18 gauge cold rolled steel frame; including suspended file system and file bars.

•Front/Back: 12 Mil. Seamless polymer-covered front; melamine back (Frost in color).

•Core: 45 lb. LEED IEQ compliant MDF board, 3/4 inch thick. All composite wood material to meet CARB P2 emission std of CARB reg. 91320.2.

•Slide: Manufacturer’s standard Accuride Aero (100 lb. capacity) ball bearing slides; Accuride Model 3832 (100 lb. capacity) for pullout writing surfaces and waste cans; and heavy duty Accuride Model 3640 (200 lb. capacity) slide for file drawers and heavy duty pull out shelves.

•Pulls: 128 mm pull offering for Serenity.

•Powdercoated 18 gauge cold rolled steel, painted to match cabinet color; manufacturer’s standard die cast zinc support clips.

•Doors: Manufacturer’s standard Timberline, individually mounted, cam style lock removable lock plug; locks keyed alike with two keys per lock.

•Drawers: Manufacturer’s standard Timberline lock body with removable lock plug with 14 gauge cold rolled steel pivoting lock bar for central lock system; locks keyed alike with two keys per lock.

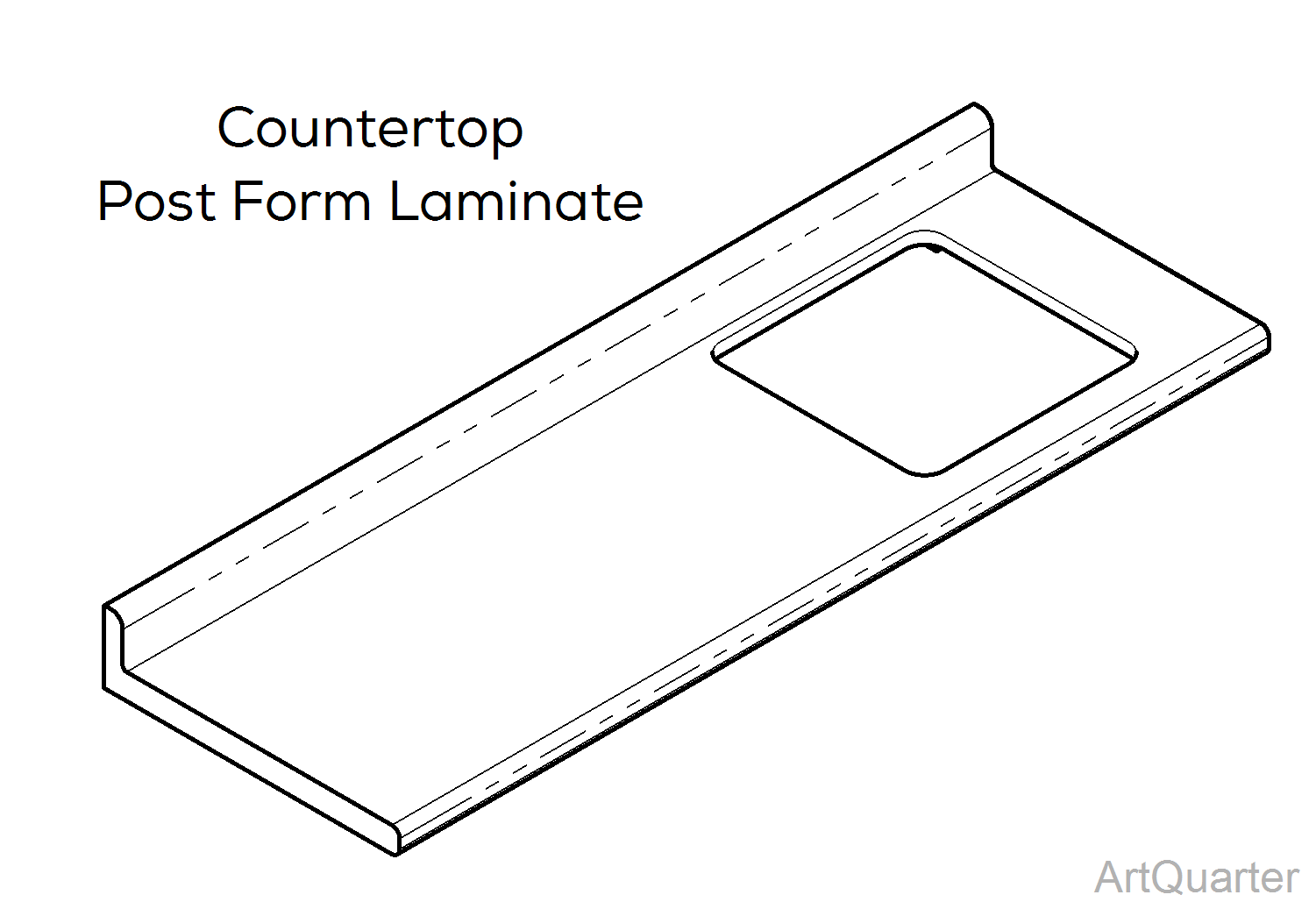

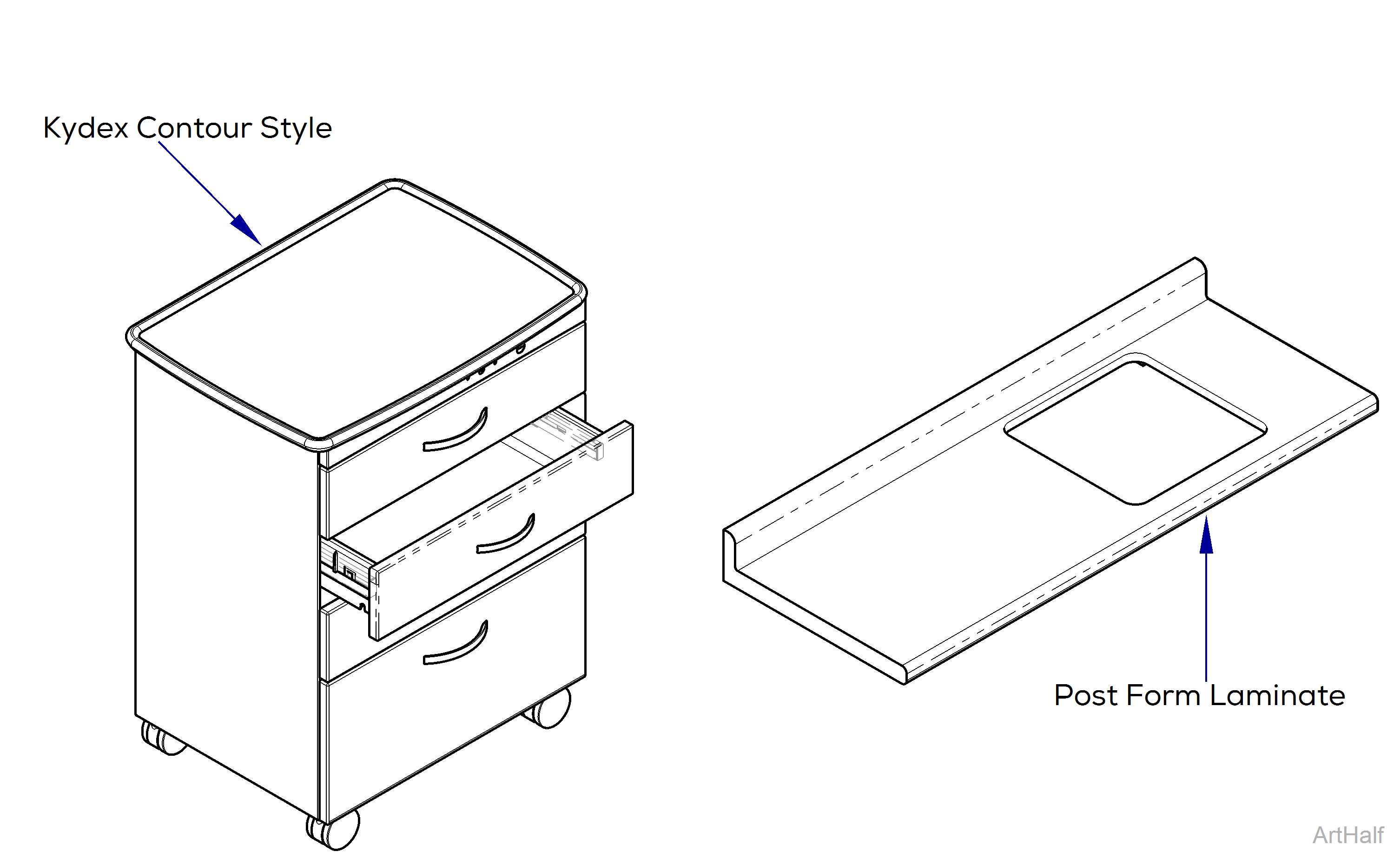

•Standard Laminate Countertops (Postform): LEED IEQ compliant particle board core. All composite wood material to meet CARB P2 emission std of CARB regulation 91320.2.

•Horizontal: High pressure laminate surfacing material is .045 inch thick, matte finish.

•Plastic Laminate: Wilsonart; Formica®, as selected.

CFT-3GS4WB-2: Manufacturer: Moen #8938

•Hole Deck Mount, 4” Centers (2)

•4.31” Wristblade Handles

•3.5” Swivel Gooseneck Spout

•Powdercoated 18 gauge cold rolled steel; multi-piece shell and frame design; riveted and press joined (Tog-L-Loc®)

•Front/Back: 12 Mil. Seamless polymer-covered front; melamine back (Frost in color).

•Core: 45 lb. LEED IEQ compliant MDF board, 3/4 inch thick. All composite wood material to meet CARB P2 emission std of CARB reg. 91320.2.

•Hinges: Manufacturer’s standard Blum®, concealed, self-closing. 110 deg. opening, nickel-plated metal, clip-on mount, three adjustment points.

•Pulls: 128 mm pull offering for Serenity.

•Deep Drawer Construction: One piece molded polystyrene drawer bodies w/rounded corners; (Frost in color).

•File Drawer Construction: 18 gauge cold rolled steel frame; including suspended file system and file bars.

•Front/Back: 12 Mil. Seamless polymer-covered front; melamine back (Frost in color).

•Core: 45 lb. LEED IEQ compliant MDF board, 3/4 inch thick. All composite wood material to meet CARB P2 emission std of CARB reg. 91320.2.

•Slide: Manufacturer’s standard Accuride Aero (100 lb. capacity) ball bearing slides; Accuride Model 3832 (100 lb. capacity) for pullout writing surfaces and waste cans; and heavy duty Accuride Model 3640 (200 lb. capacity) slide for file drawers and heavy duty pull out shelves.

•Pulls: 128 mm pull offering for Serenity.

•Powdercoated 18 gauge cold rolled steel, painted to match cabinet color; manufacturer’s standard die cast zinc support clips.

•Doors: Manufacturer’s standard Timberline, individually mounted, cam style lock removable lock plug; locks keyed alike with two keys per lock.

•Drawers: Manufacturer’s standard Timberline lock body with removable lock plug with 14 gauge cold rolled steel pivoting lock bar for central lock system; locks keyed alike with two keys per lock.

•Standard Laminate Countertops (Postform): LEED IEQ compliant particle board core. All composite wood material to meet CARB P2 emission std of CARB regulation 91320.2.

•Horizontal: High pressure laminate surfacing material is .045 inch thick, matte finish.

•Plastic Laminate: Wilsonart; Formica®, as selected.

CFT-3GS4WB-2: Manufacturer: Moen #8938

•Hole Deck Mount, 4” Centers (2)

•4.31” Wristblade Handles

•3.5” Swivel Gooseneck Spout

•Powdercoated 18 gauge cold rolled steel; multi-piece shell and frame design; riveted and press joined (Tog-L-Loc®)

•Front/Back: 12 Mil. Seamless polymer-covered front; melamine back (Frost in color).

•Core: 45 lb. LEED IEQ compliant MDF board, 3/4 inch thick. All composite wood material to meet CARB P2 emission std of CARB reg. 91320.2.

•Hinges: Manufacturer’s standard Blum®, concealed, self-closing. 110 deg. opening, nickel-plated metal, clip-on mount, three adjustment points.

•Pulls: 128 mm pull offering for Serenity.

•Deep Drawer Construction: One piece molded polystyrene drawer bodies w/rounded corners; (Frost in color).

•File Drawer Construction: 18 gauge cold rolled steel frame; including suspended file system and file bars.

•Front/Back: 12 Mil. Seamless polymer-covered front; melamine back (Frost in color).

•Core: 45 lb. LEED IEQ compliant MDF board, 3/4 inch thick. All composite wood material to meet CARB P2 emission std of CARB reg. 91320.2.

•Slide: Manufacturer’s standard Accuride Aero (100 lb. capacity) ball bearing slides; Accuride Model 3832 (100 lb. capacity) for pullout writing surfaces and waste cans; and heavy duty Accuride Model 3640 (200 lb. capacity) slide for file drawers and heavy duty pull out shelves.

•Pulls: 128 mm pull offering for Serenity.

•Powdercoated 18 gauge cold rolled steel, painted to match cabinet color; manufacturer’s standard die cast zinc support clips.

•Doors: Manufacturer’s standard Timberline, individually mounted, cam style lock removable lock plug; locks keyed alike with two keys per lock.

•Drawers: Manufacturer’s standard Timberline lock body with removable lock plug with 14 gauge cold rolled steel pivoting lock bar for central lock system; locks keyed alike with two keys per lock.

•Manufacturer’s standard Shepherd Caster Corp®, 60 mm nylon or 4” twin wheel design with elastomeric treads, stem mounting; locking wheel.

•Standard Laminate Countertops (Postform): LEED IEQ compliant particle board core. All composite wood material to meet CARB P2 emission std of CARB regulation 91320.2.

•Horizontal: High pressure laminate surfacing material is .045 inch thick, matte finish.

•Plastic Laminate: Wilsonart; Formica®, as selected.

CFT-3GS4WB-2: Manufacturer: Moen #8938

•Hole Deck Mount, 4” Centers (2)

•4.31” Wristblade Handles

•3.5” Swivel Gooseneck Spout

•Powdercoated 18 gauge cold rolled steel; multi-piece shell and frame design; riveted and press joined (Tog-L-Loc®)

•Front/Back: 12 Mil. Seamless polymer-covered front; melamine back (Frost in color).

•Core: 45 lb. LEED IEQ compliant MDF board, 3/4 inch thick. All composite wood material to meet CARB P2 emission std of CARB reg. 91320.2.

•Hinges: Manufacturer’s standard Blum®, concealed, self-closing. 110 deg. opening, nickel-plated metal, clip-on mount, three adjustment points.

•Pulls: 128 mm pull offering for Serenity.

•Deep Drawer Construction: One piece molded polystyrene drawer bodies w/rounded corners; (Frost in color).

•File Drawer Construction: 18 gauge cold rolled steel frame; including suspended file system and file bars.

•Front/Back: 12 Mil. Seamless polymer-covered front; melamine back (Frost in color).

•Core: 45 lb. LEED IEQ compliant MDF board, 3/4 inch thick. All composite wood material to meet CARB P2 emission std of CARB reg. 91320.2.

•Slide: Manufacturer’s standard Accuride Aero (100 lb. capacity) ball bearing slides; Accuride Model 3832 (100 lb. capacity) for pullout writing surfaces and waste cans; and heavy duty Accuride Model 3640 (200 lb. capacity) slide for file drawers and heavy duty pull out shelves.

•Pulls: 128 mm pull offering for Serenity.

•Powdercoated 18 gauge cold rolled steel, painted to match cabinet color; manufacturer’s standard die cast zinc support clips.

•Doors: Manufacturer’s standard Timberline, individually mounted, cam style lock removable lock plug; locks keyed alike with two keys per lock.

•Drawers: Manufacturer’s standard Timberline lock body with removable lock plug with 14 gauge cold rolled steel pivoting lock bar for central lock system; locks keyed alike with two keys per lock.

•Standard Laminate Countertops (Postform): LEED IEQ compliant particle board core. All composite wood material to meet CARB P2 emission std of CARB regulation 91320.2.

•Horizontal: High pressure laminate surfacing material is .045 inch thick, matte finish.

•Plastic Laminate: Wilsonart; Formica®, as selected.

CFT-3GS4WB-2: Manufacturer: Moen #8938

•Hole Deck Mount, 4” Centers (2)

•4.31” Wristblade Handles

•3.5” Swivel Gooseneck Spout

•Powdercoated 18 gauge cold rolled steel; multi-piece shell and frame design; riveted and press joined (Tog-L-Loc®)

•Front/Back: 12 Mil. Seamless polymer-covered front; melamine back (Frost in color).

•Core: 45 lb. LEED IEQ compliant MDF board, 3/4 inch thick. All composite wood material to meet CARB P2 emission std of CARB reg. 91320.2.

•Hinges: Manufacturer’s standard Blum®, concealed, self-closing. 110 deg. opening, nickel-plated metal, clip-on mount, three adjustment points.

•Pulls: 128 mm pull offering for Serenity.

•Deep Drawer Construction: One piece molded polystyrene drawer bodies w/rounded corners; (Frost in color).

•File Drawer Construction: 18 gauge cold rolled steel frame; including suspended file system and file bars.

•Front/Back: 12 Mil. Seamless polymer-covered front; melamine back (Frost in color).

•Core: 45 lb. LEED IEQ compliant MDF board, 3/4 inch thick. All composite wood material to meet CARB P2 emission std of CARB reg. 91320.2.

•Slide: Manufacturer’s standard Accuride Aero (100 lb. capacity) ball bearing slides; Accuride Model 3832 (100 lb. capacity) for pullout writing surfaces and waste cans; and heavy duty Accuride Model 3640 (200 lb. capacity) slide for file drawers and heavy duty pull out shelves.

•Pulls: 128 mm pull offering for Serenity.

•Powdercoated 18 gauge cold rolled steel, painted to match cabinet color; manufacturer’s standard die cast zinc support clips.

•Doors: Manufacturer’s standard Timberline, individually mounted, cam style lock removable lock plug; locks keyed alike with two keys per lock.

•Drawers: Manufacturer’s standard Timberline lock body with removable lock plug with 14 gauge cold rolled steel pivoting lock bar for central lock system; locks keyed alike with two keys per lock.

•Manufacturer’s standard Shepherd Caster Corp®, 60 mm nylon or 4” twin wheel design with elastomeric treads, stem mounting; locking wheel.

•Standard Laminate Countertops (Postform): LEED IEQ compliant particle board core. All composite wood material to meet CARB P2 emission std of CARB regulation 91320.2.

•Horizontal: High pressure laminate surfacing material is .045 inch thick, matte finish.

•Plastic Laminate: Wilsonart; Formica®, as selected.

CFT-3GS4WB-2: Manufacturer: Moen #8938

•Hole Deck Mount, 4” Centers (2)

•4.31” Wristblade Handles

•3.5” Swivel Gooseneck Spout

•Powdercoated 18 gauge cold rolled steel; multi-piece shell and frame design; riveted and press joined (Tog-L-Loc®)

•Front/Back: 12 Mil. Seamless polymer-covered front; melamine back (Frost in color).

•Core: 45 lb. LEED IEQ compliant MDF board, 3/4 inch thick.

•All composite wood material to meet CARB P2 emission std of CARB reg. 91320.2.

•Hinges: Manufacturer’s standard Blum®, concealed, self-closing.

•110 deg. opening, nickel-plated metal, clip-on mount, three adjustment points.

•Pulls: 128 mm pull offering for Serenity.

•Deep Drawer Construction: One piece molded polystyrene drawer bodies w/rounded corners; (Frost in color).

•File Drawer Construction: 18 gauge cold rolled steel frame; including suspended file system and file bars.

•Front/Back: 12 Mil. Seamless polymer-covered front; melamine back (Frost in color).

•Core: 45 lb. LEED IEQ compliant MDF board, 3/4 inch thick. All composite wood material to meet CARB P2 emission std of CARB reg. 91320.2.

•Slide: Manufacturer’s standard Accuride Aero (100 lb. capacity) ball bearing slides; Accuride Model 3832 (100 lb. capacity) for pullout writing surfaces and waste cans; and heavy duty Accuride Model 3640 (200 lb. capacity) slide for file drawers and heavy duty pull out shelves.

•Pulls: 128 mm pull offering for Serenity.

•Powdercoated 18 gauge cold rolled steel, painted to match cabinet color; manufacturer’s standard die cast zinc support clips.

•Doors: Manufacturer’s standard Timberline, individually mounted, cam style lock removable lock plug; locks keyed alike with two keys per lock.

•Drawers: Manufacturer’s standard Timberline lock body with removable lock plug with 14 gauge cold rolled steel pivoting lock bar for central lock system; locks keyed alike with two keys per lock.

•Manufacturer’s standard Shepherd Caster Corp®, 60 mm nylon or 4” twin wheel design with elastomeric treads, stem mounting; locking wheel.

•Standard Laminate Countertops (Postform): LEED IEQ compliant particle board core. All composite wood material to meet CARB P2 emission std of CARB regulation 91320.2.

•Horizontal: High pressure laminate surfacing material is .045 inch thick, matte finish.

•Plastic Laminate: Wilsonart; Formica®, as selected.

CFT-3GS4WB-2: Manufacturer: Moen #8938

•Hole Deck Mount, 4” Centers (2)

•4.31” Wristblade Handles

•3.5” Swivel Gooseneck Spout

•Powdercoated 18 gauge cold rolled steel; multi-piece shell and frame design; riveted and press joined (Tog-L-Loc®)

•Front/Back: 12 Mil. Seamless polymer-covered front; melamine back (Frost in color).

•Core: 45 lb. LEED IEQ compliant MDF board, 3/4 inch thick.

•All composite wood material to meet CARB P2 emission std of CARB reg. 91320.2.

•Hinges: Manufacturer’s standard Blum®, concealed, self-closing.

•110 deg. opening, nickel-plated metal, clip-on mount, three adjustment points.

•Pulls: 128 mm pull offering for Serenity.

•Deep Drawer Construction: One piece molded polystyrene drawer bodies w/rounded corners; (Frost in color).

•File Drawer Construction: 18 gauge cold rolled steel frame; including suspended file system and file bars.

•Front/Back: 12 Mil. Seamless polymer-covered front; melamine back (Frost in color).

•Core: 45 lb. LEED IEQ compliant MDF board, 3/4 inch thick. All composite wood material to meet CARB P2 emission std of CARB reg. 91320.2.

•Slide: Manufacturer’s standard Accuride Aero (100 lb. capacity) ball bearing slides; Accuride Model 3832 (100 lb. capacity) for pullout writing surfaces and waste cans; and heavy duty Accuride Model 3640 (200 lb. capacity) slide for file drawers and heavy duty pull out shelves.

•Pulls: 128 mm pull offering for Serenity.

•Powdercoated 18 gauge cold rolled steel, painted to match cabinet color; manufacturer’s standard die cast zinc support clips.

•Doors: Manufacturer’s standard Timberline, individually mounted, cam style lock removable lock plug; locks keyed alike with two keys per lock.

•Drawers: Manufacturer’s standard Timberline lock body with removable lock plug with 14 gauge cold rolled steel pivoting lock bar for central lock system; locks keyed alike with two keys per lock.

•Manufacturer’s standard Shepherd Caster Corp®, 60 mm nylon or 4” twin wheel design with elastomeric treads, stem mounting; locking wheel.

•Standard Laminate Countertops (Postform): LEED IEQ compliant particle board core. All composite wood material to meet CARB P2 emission std of CARB regulation 91320.2.

•Horizontal: High pressure laminate surfacing material is .045 inch thick, matte finish.

•Plastic Laminate: Wilsonart; Formica®, as selected.
