Integra™ Side Cabinetry Door and Drawer Components
|
Model |
All |
| Serial Number | All |

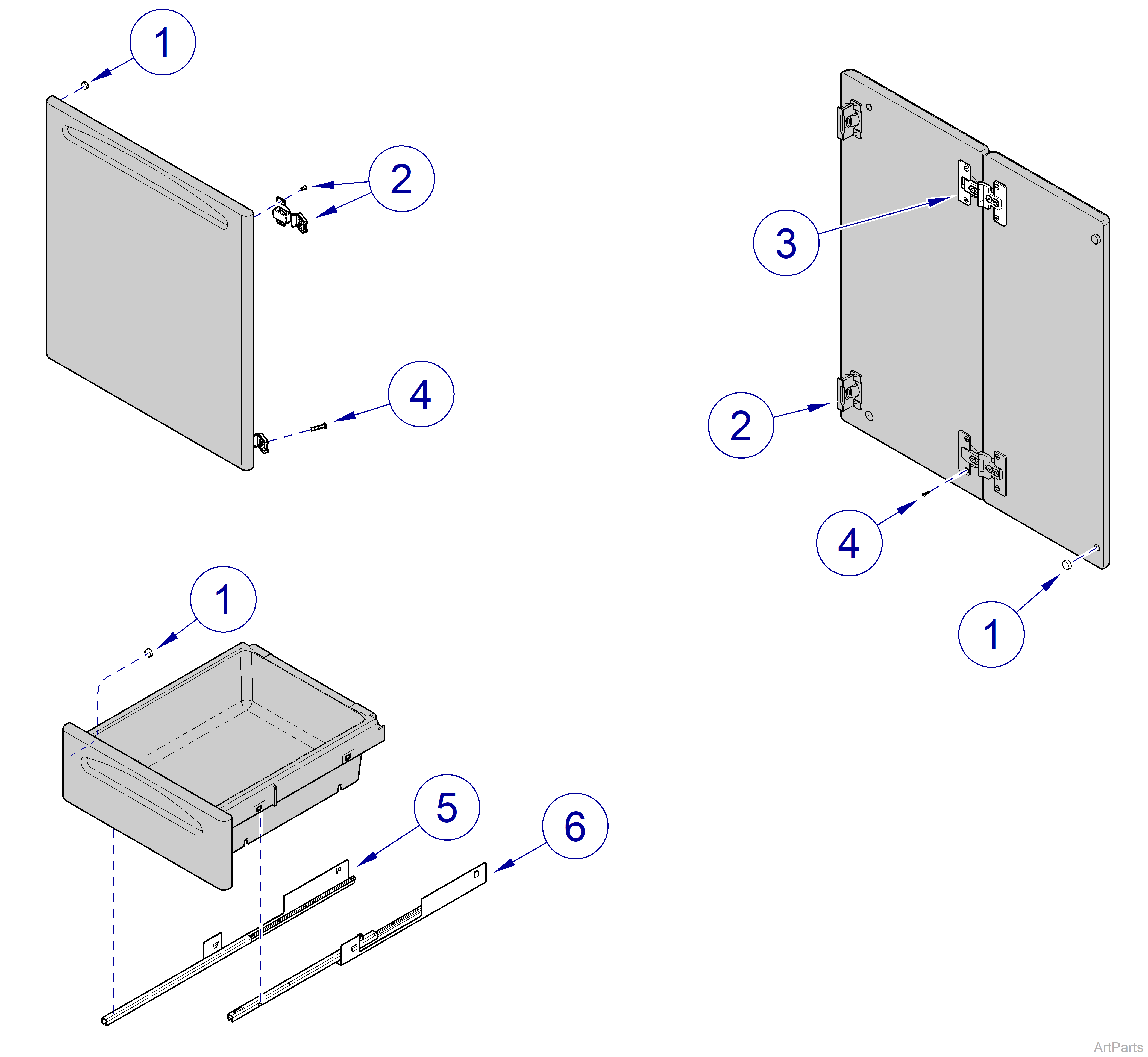

| Integra™ Side Cabinetry Door and Drawer Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
053-0716-00 | Bumper - included w/ drawer-door assembly number | AR |
|
2 |
016-0510-00 | Hinge - included w/ door assembly number | 2 |
|
3 |
016-0927-00 | Folding Door Hinge | 2 |
|
4 |
040-0006-71 | Flat Head Phillips Screw #18 x 5/8” | AR |
|
5 |
016-0513-00 | LH Slide | 1 |
|
6 |
016-0513-01 | RH Slide | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
