Midmark Synthesis® Cabinetry Handles
|
Model |
All |
| Serial Number | All |

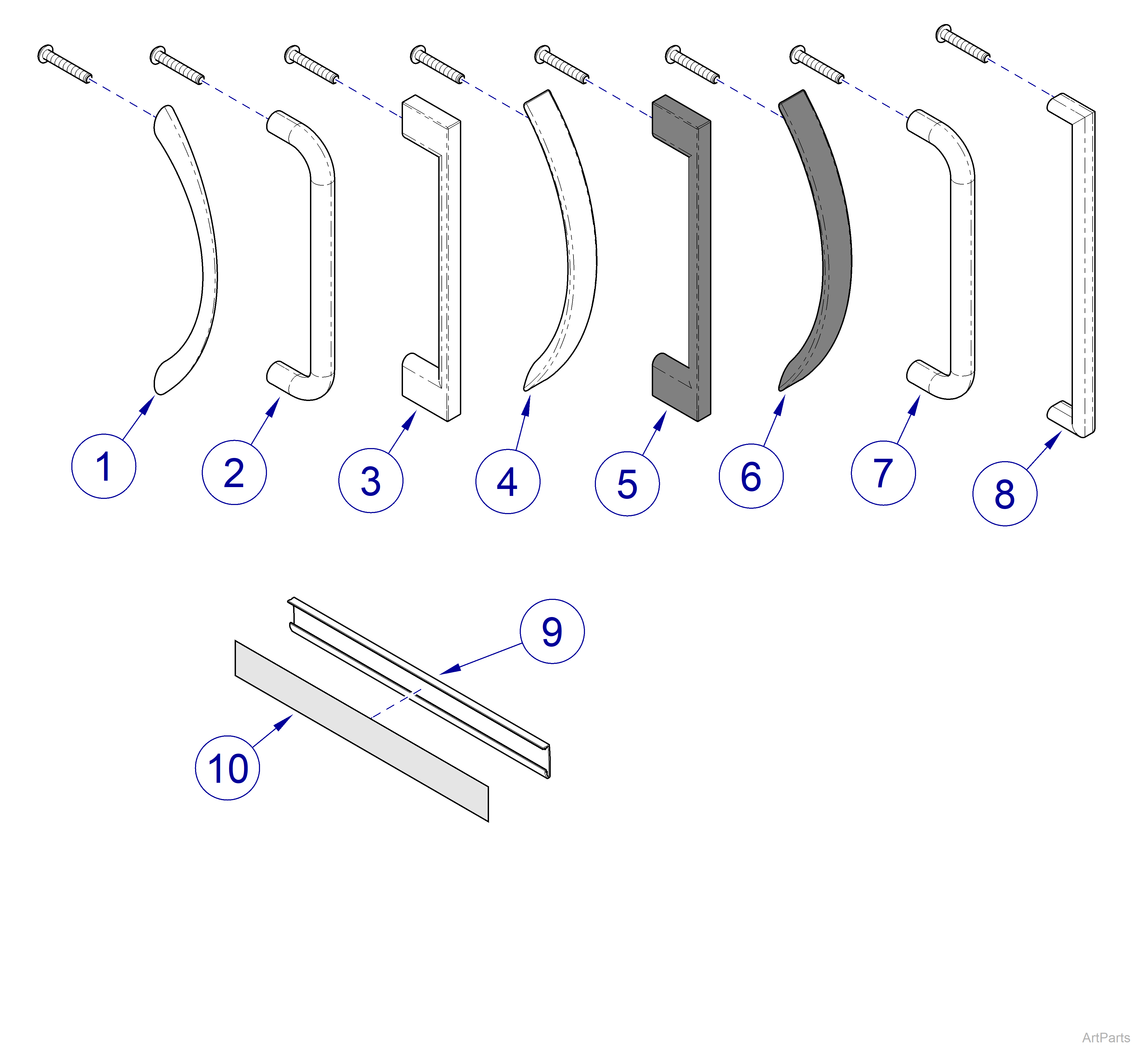

| Midmark Synthesis® Cabinetry Handles | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-6428-00 | Flare Handle - includes Screw #8-32 x 23mm | 1 |
|
2 |
029-6428-01 | Bent Handle - includes Screw #8-32 x 25mm | 1 |
|
3 |
029-6428-02 | Edge Handle - includes Screw #8-32 x 25mm | 1 |
|
4 |
029-6428-03 | Arc Handle - includes Screw #8-32 x 23mm | 1 |
|
5 |
029-6428-04 | Matte Black Edge Handle - includes Screw #8-32 x 25mm | 1 |
|
6 |
029-6428-05 | Matte Black Arc Handle - includes Screw #8-32 x 23mm | 1 |
|
7 |
Bent w/ Anti-Microbial Handle Options | ||
|
|
Bent w/ Anti-Microbial Handle - includes Screw #8-32 x 1” - Copper - Before 12/21 | 1 | |
| Bent w/ Anti-Microbial Handle - includes Screw #8-32 x 1” -Gold - 12/21 and later. | 1 | ||
|
8 |
016-10243-00 | Waste and Linen Handle - includes Screw M4 x 0.7 pitch x 25mm | 1 |
|
9 |
Handle Clear Cover Options | ||
| 053-1574-01 | 7.750” Handle Clear Cover | 1 | |
| 053-1574-02 | 10.625” Handle Clear Cover | 1 | |
| 053-1574-03 | 13.625” Handle Clear Cover | 1 | |
| 053-1574-04 | 16.625” Handle Clear Cover | 1 | |
| 053-1574-05 | 19.625” Handle Clear Cover | 1 | |
| 053-1574-09 | 25.625” Handle Clear Cover | 1 | |
| 053-1574-10 | 31.625” Handle Clear Cover | 1 | |
|
10 |
Handle Vinyl Insert Options - Specify Color | ||
| 053-1591-00-xxx | 7.720” Handle Vinyl Insert | 1 | |
| 053-1591-01-xxx | 10.595” Handle Vinyl Insert | 1 | |
| 053-1591-02-xxx | 13.595” Handle Vinyl Insert | 1 | |
| 053-1591-03-xxx | 16.595” Handle Vinyl Insert | 1 | |
| 053-1591-04-xxx | 19.595” Handle Vinyl Insert | 1 | |
| 053-1591-09-xxx | 25.595” Handle Vinyl Insert | 1 | |
| 053-1591-10-xxx | 31.595” Handle Vinyl Insert | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
