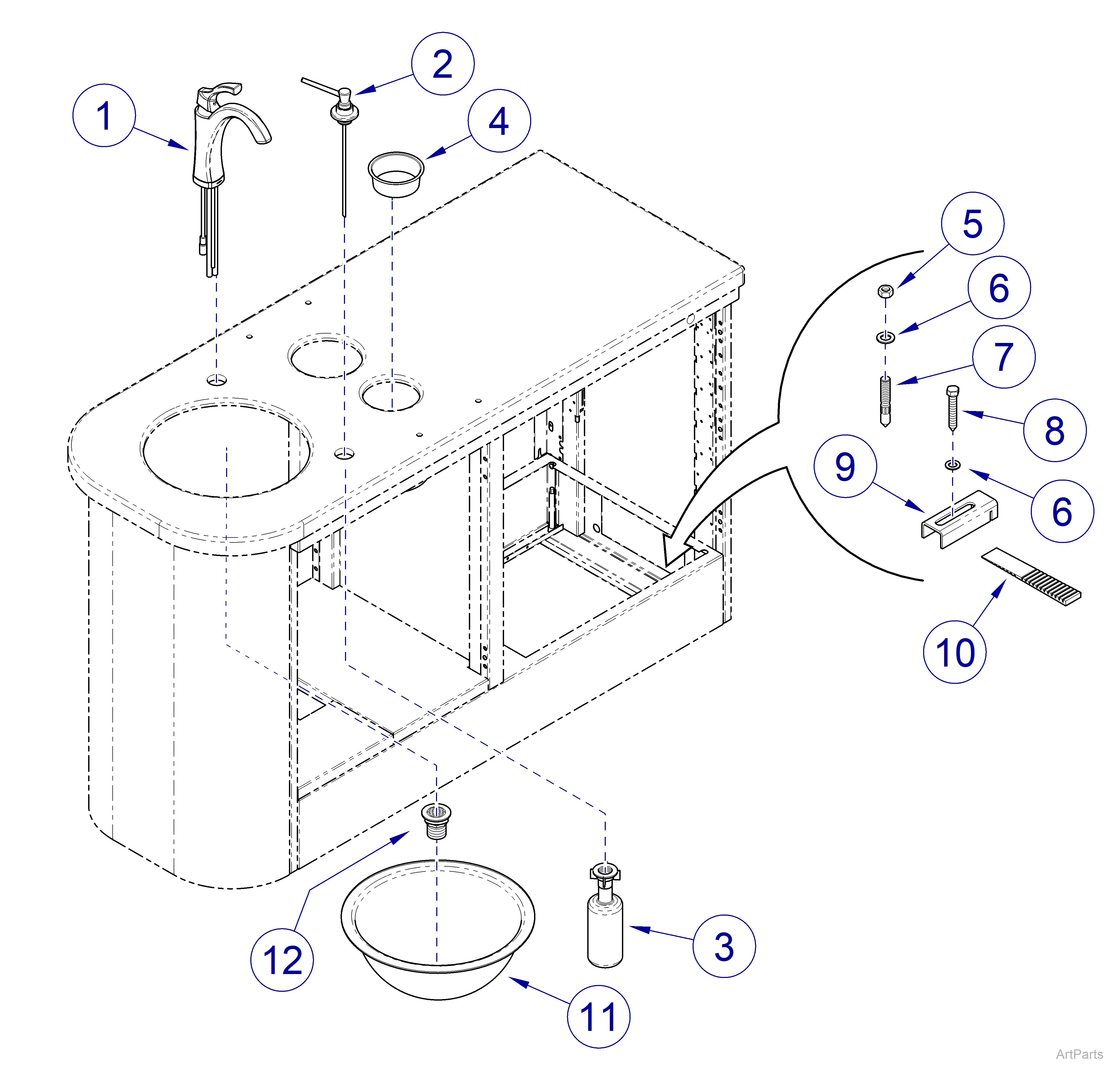

Midmark Synthesis® Cabinetry Sink Components
|
Model |
CS |
| Serial Number | All |
| Midmark Synthesis® Cabinetry Sink Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
CFT-5STPRX-1 | Stainless Steel Faucet | 1 |
|
2 |
CPA-PMPDSPS-1 | Stainless Steel Dispenser - includes item 3 | 1 |
|
3 |
016-0446-00 | Soap Bottle | 1 |
|
4 |
016-0925-00 | Waste Ring - Laminate Only | 1 |
|
5 |
041-0375-01 | Nut | 1 |
|
6 |
045-0001-49 | Washer | 1 |
|
7 |
042-0208-00 | Concrete Anchor | 1 |
|
8 |
042-0209-00 | Lag Screw | 1 |
|
9 |
050-5812-00-791 |
Hold-Down Clip | NSS |
|
10 |
053-1242-00 | Shim | 1 |
|
11 |
Sink Options - Solid Top Only |
||
| 016-1634-00 | 12” Under Mount - Shown | 1 | |
|
016-1751-00 |
12” Top Mount | NSS | |
|
12 |
Drain Strainer Options | ||
| CPA-1STRAIN | 1.25” Grid Drain - White | 1 | |
| CPA-3STRAIN | 2” Grid Drain - Stainless Steel | 1 | |
|
13 |
002-0651-00 |
Corian Care Kit - Not Shown | NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
