Integra™ Treatment Console Accessory Panels w/ Cut-Outs
Refer to: the Cabinet Color Options for the order number extension of your desired color.
All panels must be ordered separately to specify color.
Pebble Grey

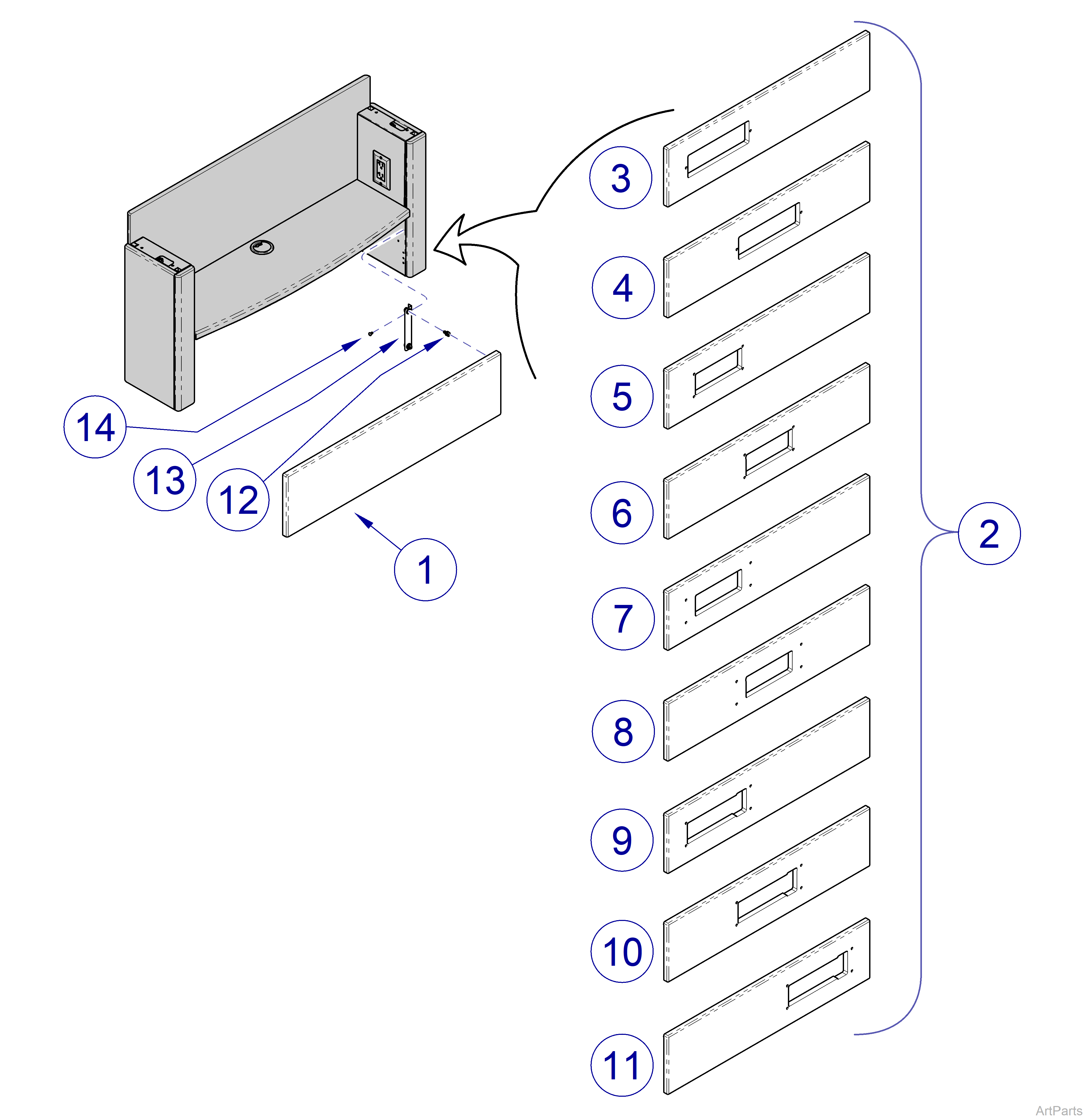

9" Accessory Panel w/ Cut-Outs
|
Model |
4472 |
| Date | All |
| Integra™ Treatment Console 9" Accessory Panels w/ Cut-Outs | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
9” Accessory Panel Assembly, 36.44”w x 9.125”h - Specify color | ||
| 029-4362-00 | 9" Accessory Panel Assembly | 1 | |
| 068-0449-00-xxx | 9" Accessory Panel | 1 | |
|
2 |
9” Accessory Panel Assembly w/ Cut-Outs Components, 36.44”w x 9.125”h - Specify color and cut-out | ||
| 029-4362-00 | 9” Accessory Panel Assembly w/ Cut-Outs | 1 | |
| 068-0449-00-xxx | 9” Accessory Panel w/ Cut-Outs | 1 | |
|
3 |
9" LH/RH Porter Cutout Panel | NSS | |
|
4 |
9" Center Porter Cutout Panel | NSS | |
|
5 |
9" LH/RH Small MDM Matrix Cutout Panel | NSS | |
|
6 |
9" Center Small MDM Matrix Cutout Panel | NSS | |
|
7 |
9" LH/RH Large MDM Matrix Cutout Panel | NSS | |
|
8 |
9" Center Large MDM Matrix Cutout Panel | NSS | |
|
9 |
9" LH W/O2 MDM Matrix Cutout Panel | NSS | |
|
10 |
9" Center W/O2 MDM Matrix Cutout Panel | NSS | |
|
11 |
9" RH W/O2 MDM Matrix Cutout Panel | NSS | |
|
12 |
053-1373-00 | Panel Tree-Lock Fastener | AR |
|
13 |
Accessory Panel Bracket w/ Nutsert Components | ||
| 050-7600-00-216 | Accessory Panel Bracket | AR | |
| 042-0045-05 | Nutsert | AR | |
|
14 |
040-0010-109 | Phillips Pan Head Screw #24 x 3/8” | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

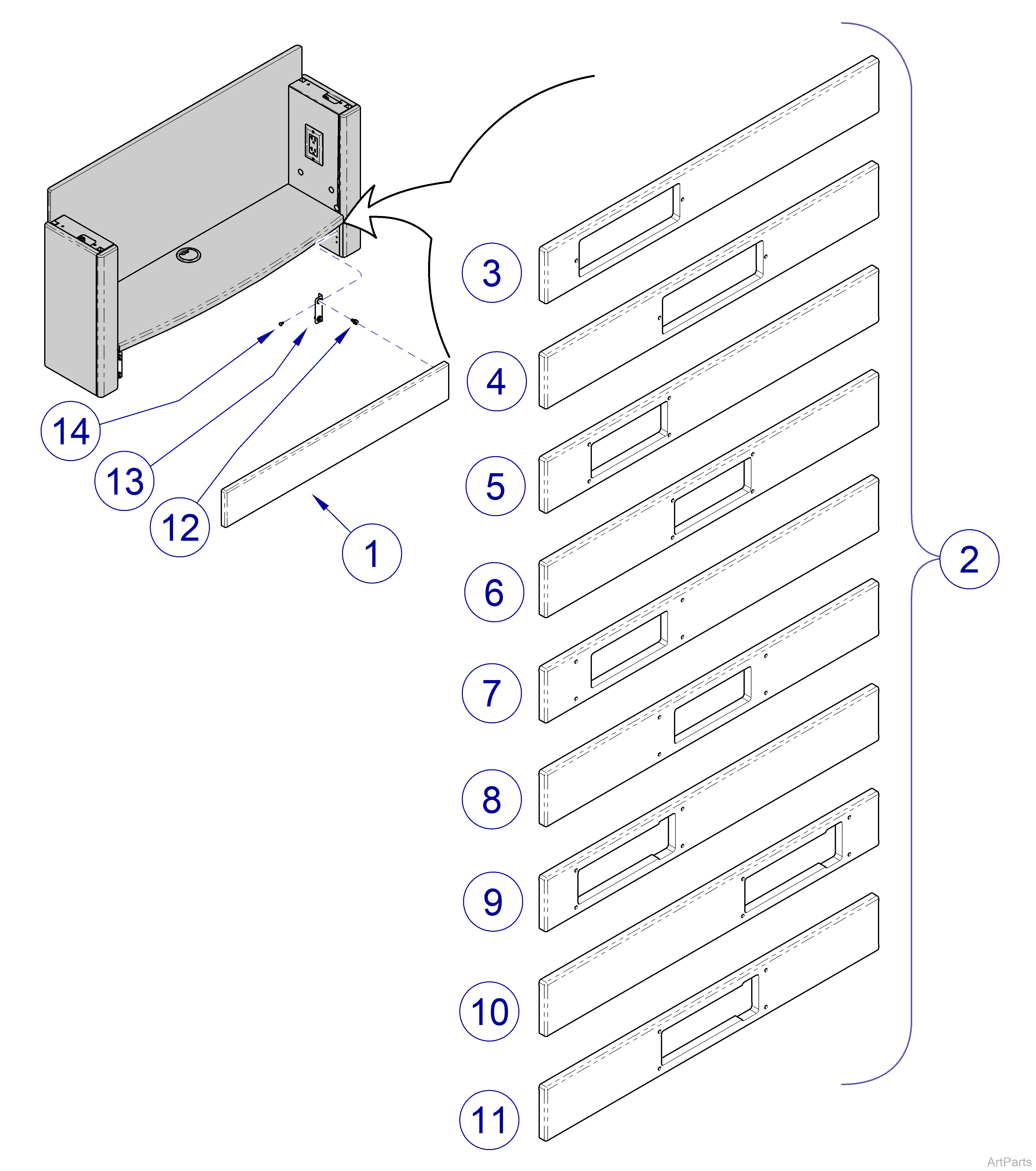

5" Accessory Panel w/ Cut-Outs
|
Model |
4472 | 4452 |
| Date | All | All |
| Integra™ Treatment Console 5" Accessory Panels w/ Cut-Outs | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
5” Accessory Panel Assembly, 36.44”w x 5.094”h - Specify color | ||
| 029-4362-01 | 5” Accessory Panel Assembly | 1 | |
| 068-0449-01-xxx | 5” Accessory Panel | 1 | |
|
2 |
5” Accessory Panel Assembly w/ Cut-Out, 36.44”w x 5.094”h - Specify color and cut-out | ||
| 029-4362-01 | 5” Accessory Panel Assembly w/ Cut-Out | 1 | |
| 068-0449-01-xxx | 5” Accessory Panel w/ Cut-Out | 1 | |
|
3 |
5" LH/RH Porter Cutout Panel | NSS | |
|
4 |
5" Center Porter Cutout Panel | NSS | |
|
5 |
5" LH/RH Small MDM Matrix Cutout Panel | NSS | |
|
6 |
5" Center Small MDM Matrix Cutout Panel | NSS | |
|
7 |
5" LH/RH Large MDM Matrix Cutout Panel | NSS | |
|
8 |
5" Center Large MDM Matrix Cutout Panel | NSS | |
|
9 |
5" LH W/O2 MDM Matrix Cutout Panel | NSS | |
|
10 |
5" RH W/O2 MDM Matrix Cutout Panel | NSS | |
|
11 |
5" Center W/O2 MDM Matrix Cutout Panel | NSS | |
|
12 |
053-1373-00 | Panel Tree-Lock Fastener | AR |
|
13 |
Accessory Panel Bracket w/ Nutsert Components | ||
| 050-7429-00-216 | Accessory Panel Bracket | AR | |
| 042-0045-05 | Nutsert | AR | |
|
14 |
040-0010-109 | Phillips Pan Head Screw #24 x 3/8” | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Frost White
9" Accessory Panel w/ Cut-Outs
|
Model |
4472 |
| Date | All |
| Integra™ Treatment Console 9" Accessory Panels w/ Cut-Outs | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
9” Accessory Panel Assembly, 36.44”w x 9.125”h - Specify color | ||
| 029-6349-00 | 9" Accessory Panel Assembly | 1 | |
| 068-1048-00-xxx | 9" Accessory Panel | 1 | |
|
2 |
9” Accessory Panel Assembly w/ Cut-Outs, 36.44”w x 9.125”h - Specify color and cut-out | ||
| 029-6349-00 | 9” Accessory Panel Assembly w/ Cut-Outs | 1 | |
| 068-1048-00-xxx | 9” Accessory Panel w/ Cut-Outs | 1 | |
|
3 |
9" LH/RH Porter Cutout Panel | NSS | |
|
4 |
9" Center Porter Cutout Panel | NSS | |
|
5 |
9" LH/RH Small MDM Matrix Cutout Panel | NSS | |
|
6 |
9" Center Small MDM Matrix Cutout Panel | NSS | |
|
7 |
9" LH/RH Large MDM Matrix Cutout Panel | NSS | |
|
8 |
9" Center Large MDM Matrix Cutout Panel | NSS | |
|
9 |
9" LH W/O2 MDM Matrix Cutout Panel | NSS | |
|
10 |
9" Center W/O2 MDM Matrix Cutout Panel | NSS | |
|
11 |
9" RH W/O2 MDM Matrix Cutout Panel | NSS | |
|
12 |
053-1373-00 | Panel Tree-Lock Fastener | AR |
|
13 |
Accessory Panel Bracket w/ Nutsert Components | ||
|
050-7600-00-791 |
Accessory Panel Bracket | NSS | |
| 042-0045-05 | Nutsert | AR | |
|
14 |
040-0010-109 | Phillips Pan Head Screw #24 x 3/8” | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
5" Accessory Panel w/ Cut-Outs
|
Model |
4472 | 4452 |
| Date | All | All |
| Integra™ Treatment Console 5" Accessory Panels w/ Cut-Outs | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
5” Accessory Panel Assembly, 36.44”w x 5.094”h - Specify color | ||
| 029-6349-01 | 5” Accessory Panel Assembly | 1 | |
| 068-1048-01-xxx | 5” Accessory Panel | 1 | |
|
2 |
5” Accessory Panel Assembly w/ Cut-Out, 36.44”w x 5.094”h - Specify color and cut-out | ||
| 029-6349-01 | 5” Accessory Panel Assembly w/ Cut-Out | 1 | |
| 068-1048-01-xxx | 5” Accessory Panel w/ Cut-Out | 1 | |
|
3 |
5" LH/RH Porter Cutout Panel | NSS | |
|
4 |
5" Center Porter Cutout Panel | NSS | |
|
5 |
5" LH/RH Small MDM Matrix Cutout Panel | NSS | |
|
6 |
5" Center Small MDM Matrix Cutout Panel | NSS | |
|
7 |
5" LH/RH Large MDM Matrix Cutout Panel | NSS | |
|
8 |
5" Center Large MDM Matrix Cutout Panel | NSS | |
|
9 |
5" LH W/O2 MDM Matrix Cutout Panel | NSS | |
|
10 |
5" RH W/O2 MDM Matrix Cutout Panel | NSS | |
|
11 |
5" Center W/O2 MDM Matrix Cutout Panel | NSS | |
|
12 |
053-1373-00 | Panel Tree-Lock Fastener | AR |
|
13 |
Accessory Panel Bracket w/ Nutsert Components | ||
|
050-7429-00-791 |
Accessory Panel Bracket | NSS | |
| 042-0045-05 | Nutsert | AR | |
|
14 |
040-0010-109 | Phillips Pan Head Screw #24 x 3/8” | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
