Integra™ Treatment Console Glove Overhead Door Assembly
Refer to: the Cabinet Color Options for the order number extension of your desired color.
All panels must be ordered separately to specify color.

Model |
4472 |
Date | All |

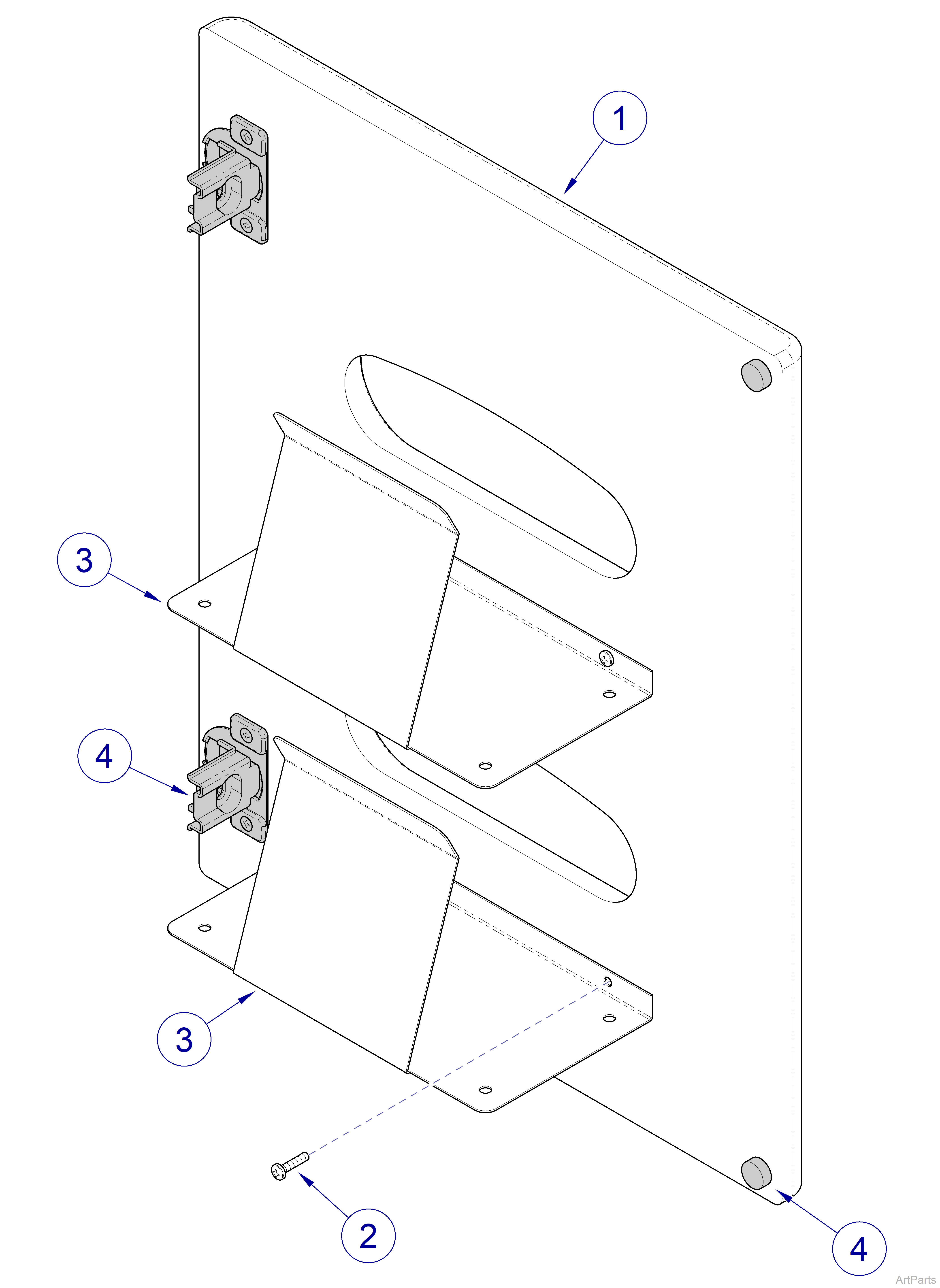

Integra™ Treatment Console Glove Overhead Door Assembly | |||
---|---|---|---|
Item | Part Number | Description | Qty |
1 |
Door Assembly Options - Specify Color | ||
029-5524-00 | RH Door Assembly - 13.5"w x 17"h | 1 | |
029-5524-01 | LH Door Assembly - 13.5"w x 17"h | 1 | |
068-0805-00-xxx | Glove Dispenser Door Panel | 1 | |
2 |
040-0006-63 | Screw #6 x 5/8” | 4 |
3 |
050-5473-50 | Retainer Bracket | 2 |
4 |
Refer to: | Door Components | - |
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |

Model |
4472 |
Date | All |
Integra™ Treatment Console Glove Overhead Door Assembly | |||
---|---|---|---|
Item | Part Number | Description | Qty |
1 |
Door Assembly Options - Specify Color | ||
029-6391-00 | RH Door Assembly - 13.5"w x 17"h | 1 | |
068-1133-00-xxx | Glove Dispenser RH Door Panel | ||
029-6391-01 | LH Door Assembly - 13.5"w x 17"h | 1 | |
068-1133-00-xxx | Glove Dispenser LH Door Panel | 1 | |
2 |
040-0006-63 | Screw #6 x 5/8” | 4 |
3 |
050-5473-00-791 | Retainer Bracket | 2 |
4 |
Refer to: | Door Components | - |
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
