Integra™ Treatment Console Wiring Diagram
Sensors and switches not included unless noted.

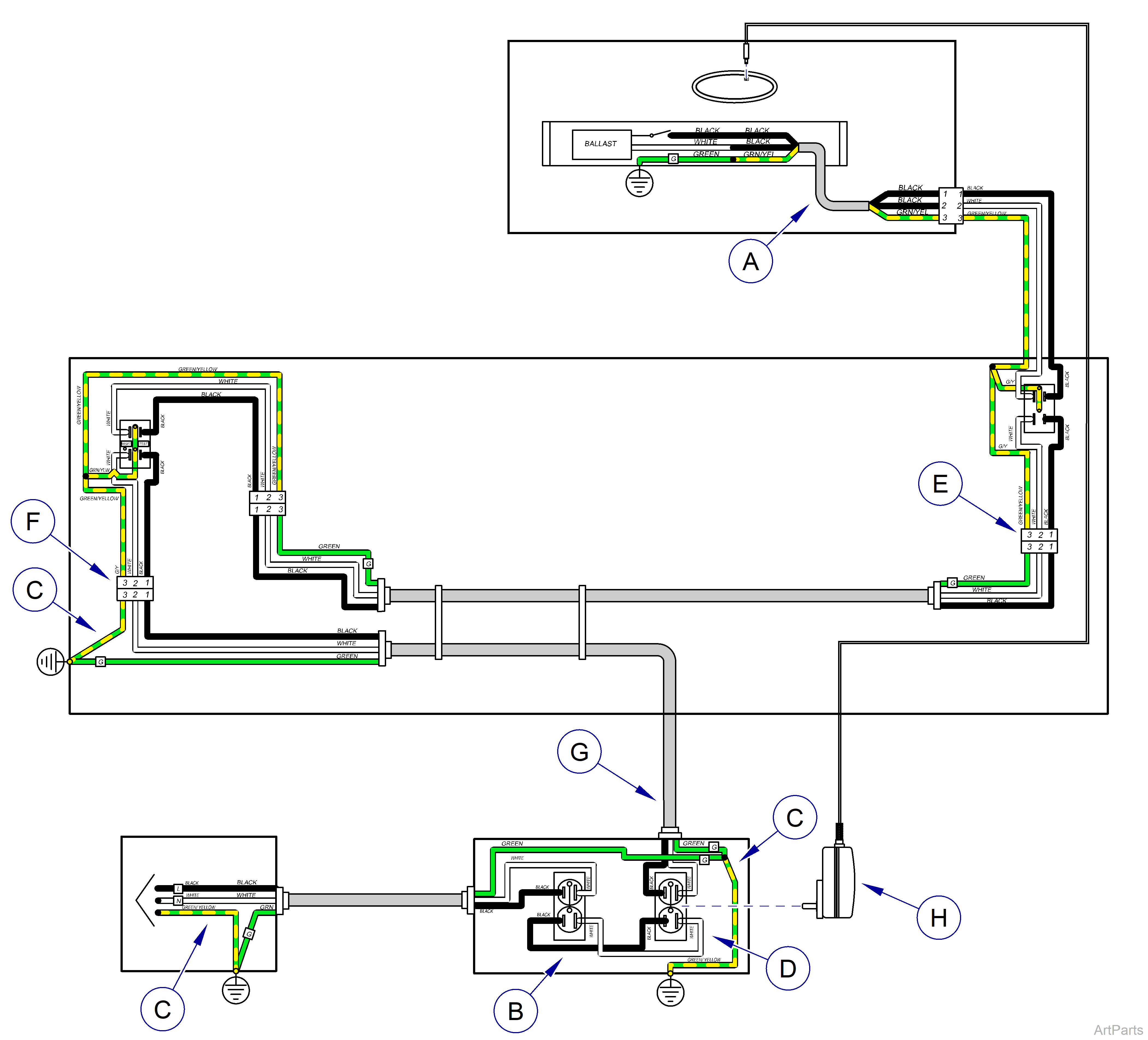

FTC w/ Task Light
|
Model |
FTC-4472 | FTC-4452 |
| Date | All | All |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-1582-00 | Task Light Wire Harness |
|
B |
015-1634-05 | Black Jumper Wire |
|
C |
015-1634-01 | Green/Yellow Jumper Wire w/ Hook |
|
D |
015-1634-06 | White Jumper Wire |
|
E |
015-2353-00 | Upper Box and Harness Assembly |
|
F |
015-2353-01 | Upper Box and Harness Assembly |
|
G |
12:00 Freestanding Treatment Wiring Harness Options | |
| 015-2365-00 | Pebble Grey Wiring Harness | |
| 015-3436-00 | Frost White Wiring Harness | |
|
H |
015-2459-00 | Power Supply Assembly - 5VDC |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||

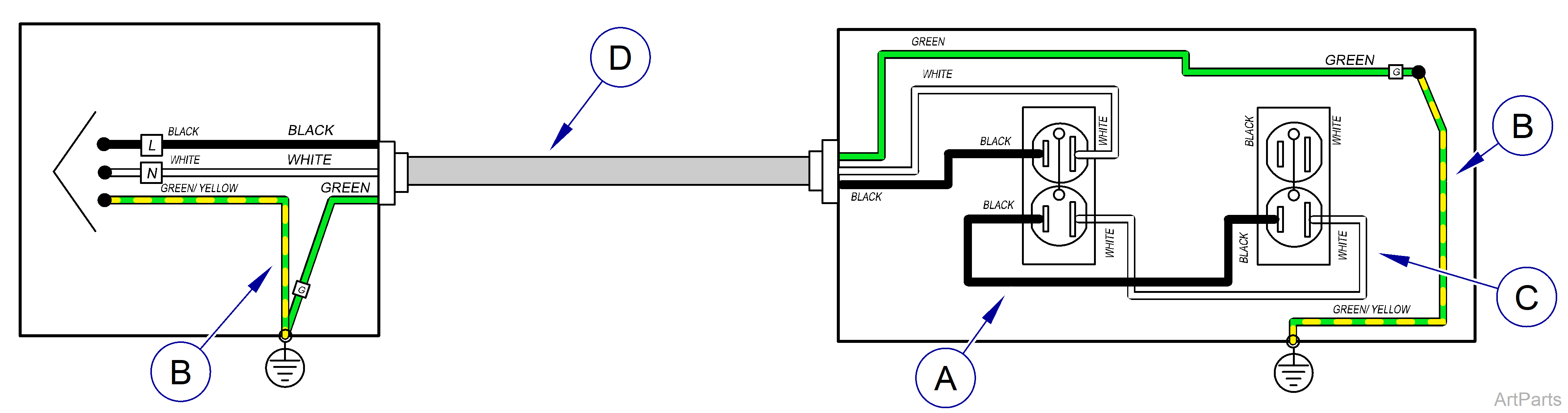

FTC Base Only
|
Model |
FTC-4472 | FTC-4452 |
| Date | All | All |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-1634-05 | Black Jumper Wire |
|
B |
015-1634-01 | Green/Yellow Jumper Wire w/ Hook |
|
C |
015-1634-06 | White Jumper Wire |
|
D |
12:00 Freestanding Treatment Wiring Harness Options | |
| 015-2365-01 | Pebble Grey Wiring Harness | |
| 015-3436-01 | Frost White Wiring Harness | |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
