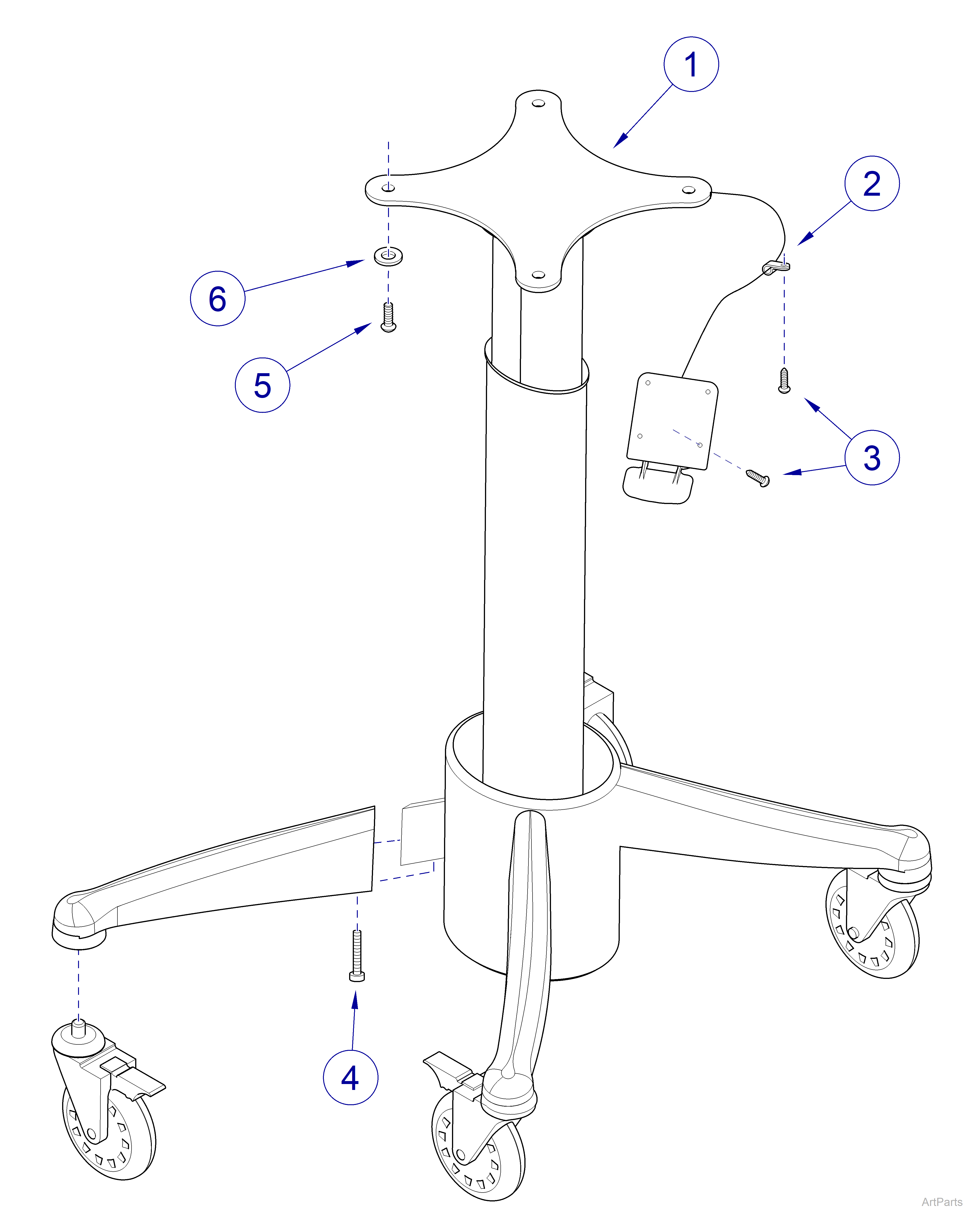

6231 Procedure Cart Base / Cartridge Components
|
Model |
6231-001 |
| Serial Number | All |
| 6231 Procedure Cart Base / Cartridge Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Column Assembly Kit Options - includes cable release lever | ||
| 002-1627-00 | Light Duty - blue sticker on bottom of cylinder | 1 | |
| 002-1627-01 | Medium Duty - green sticker on bottom of cylinder | 1 | |
| 002-1627-02 | Standard - no sticker or yellow sticker on bottom of cylinder | 1 | |
| 002-1627-03 | Heavy Duty - red sticker on bottom of cylinder | 1 | |
|
2 |
7390-208 | Cable Clamp | 1 |
|
3 |
7390-206 | Screw #8 x 1/2” | 5 |
|
4 |
7390-203NP | Screw 1/4-20 x 1 3/4” | 8 |
|
5 |
7390-202 | Screw 3/8-16 x 7/8” | 4 |
|
6 |
AS-618 | Lockwasher | 4 |
|
7 |
Thread Locking Adhesive - Not Shown | AR | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
