Midmark® Workstations Med Drawer Options MD31-MM Med Drawer w/o Lock

Model

 MD31-MM Med Drawer w/o Lock
Serial Number Previous

Med Drawer Options MD31-MM Med Drawer w/o Lock (previous)

To convert previous design to present: Use 002-2062-01-xxx to replace 002-1456-01-xxx (1).

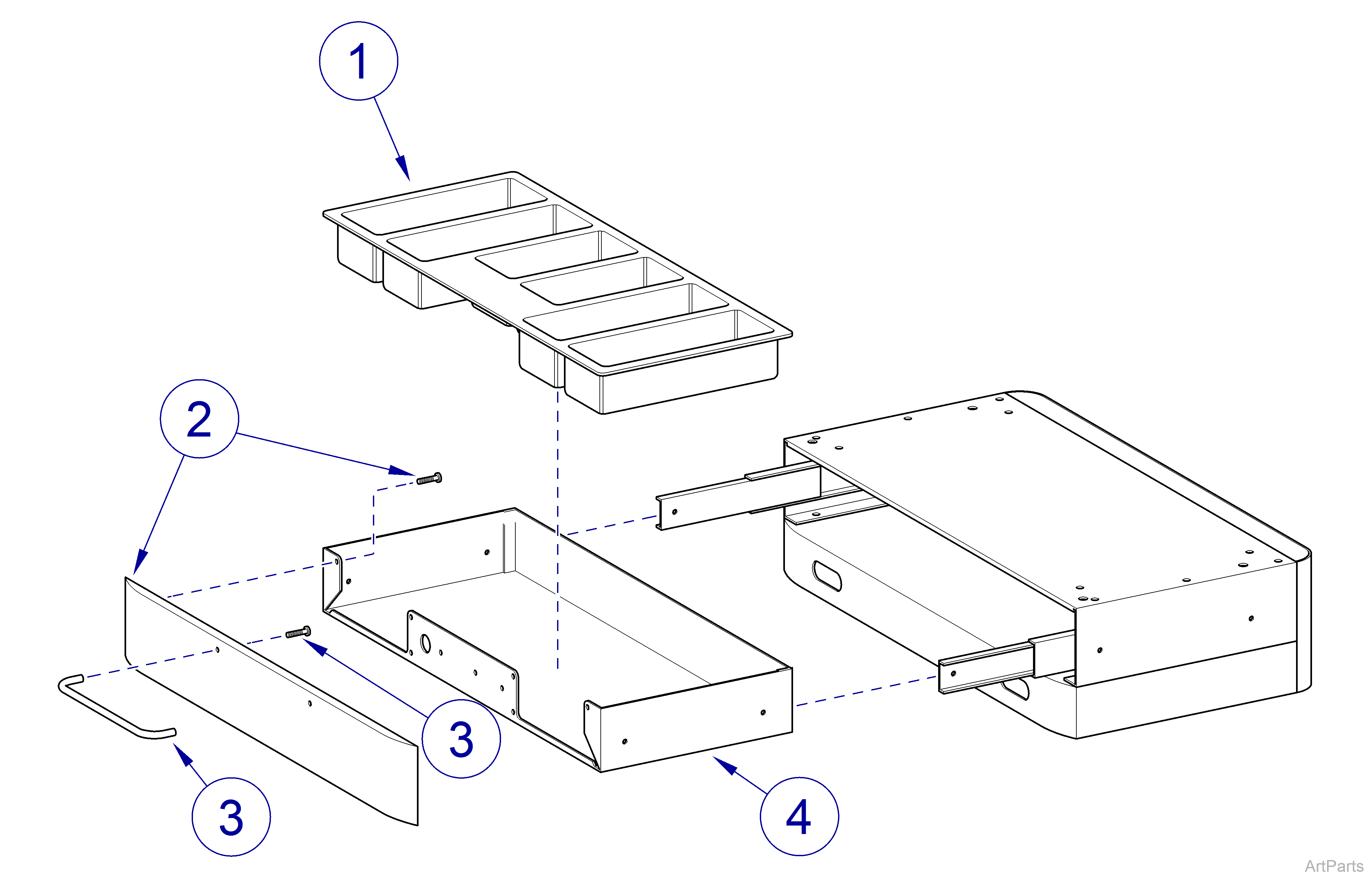

Midmark® Workstations Med Drawer Options MD31-MM Med Drawer w/o Lock - Previous
Item Part Number Description Qty

1

 AS-773 Med Drawer Insert 1

2

 002-2062-01-xxx Drawer Front w/o Lock Cutout Kit 1

3

 002-1455-00 Drawer Bin Pull Kit 1

4

AS-684

 Med Drawer Bin NLA

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 MD31-MM Med Drawer w/o Lock
Serial Number Current

Med Drawer Options MD31-MM Med Drawer W/o Lock

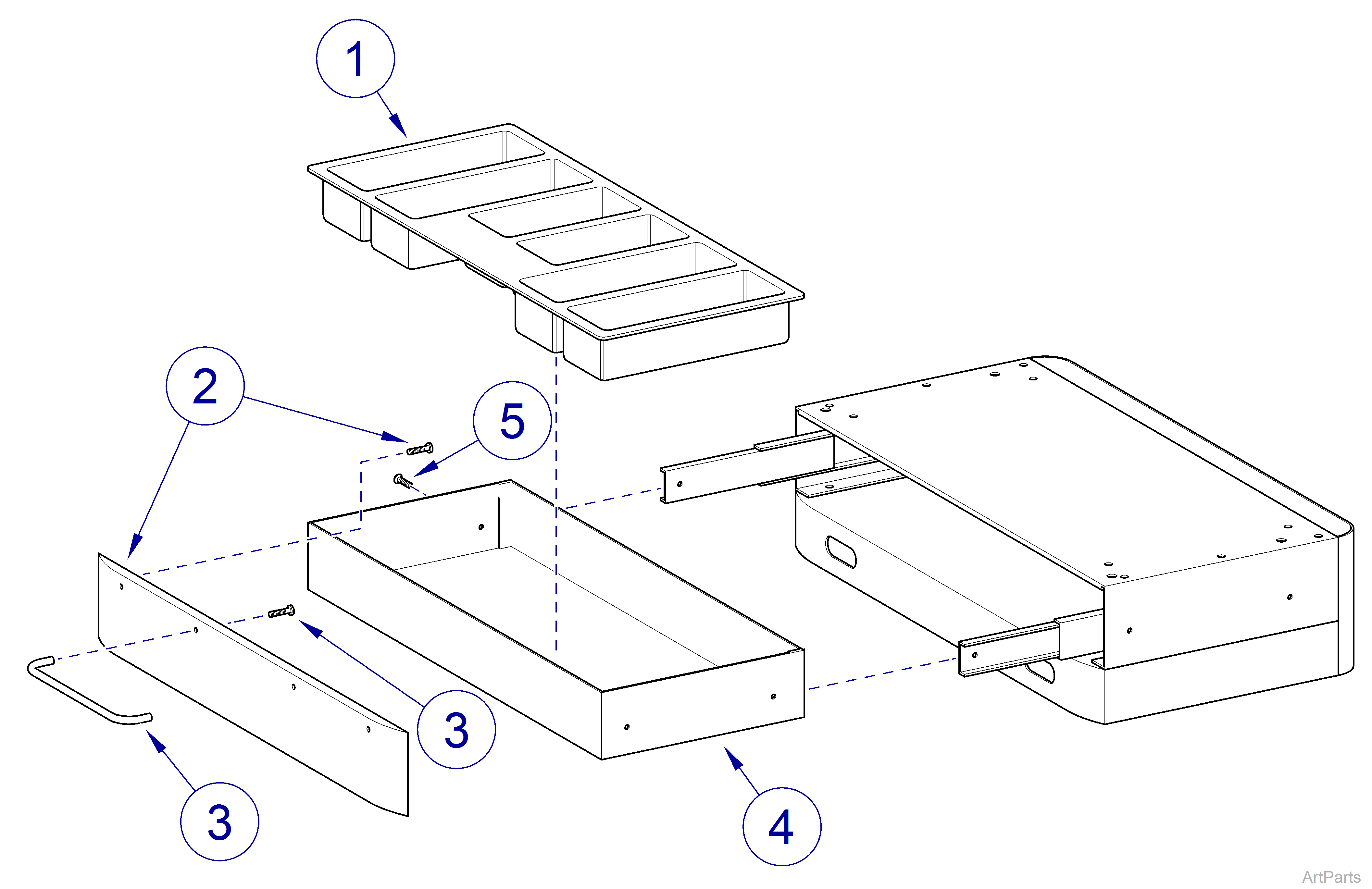

Midmark® Workstations Med Drawer Options MD31-MM Med Drawer w/o Lock
Item Part Number Description Qty

1

 AS-773 Med Drawer Insert 1

2

 002-2062-01-xxx Drawer Front w/o Lock Cutout Kit 1

3

 002-1455-00 Drawer Bin Pull Kit 1

4

 AS-1769 Med Drawer Bin 1

5

 AS-386 Screw #8-32 x 1/4 4

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
