Midmark® Workstations Med Drawer Options MD40-MM Med Drawer w/ Lock
Model Range Previous
|
Model |
MD 40-MM Med Drawer w/ Lock |
| Serial Number | Previous |
To convert previous design to present: Use 002-2061-00-xxx to replace 002-1456-00 (1) and 002-1454-00 (1).

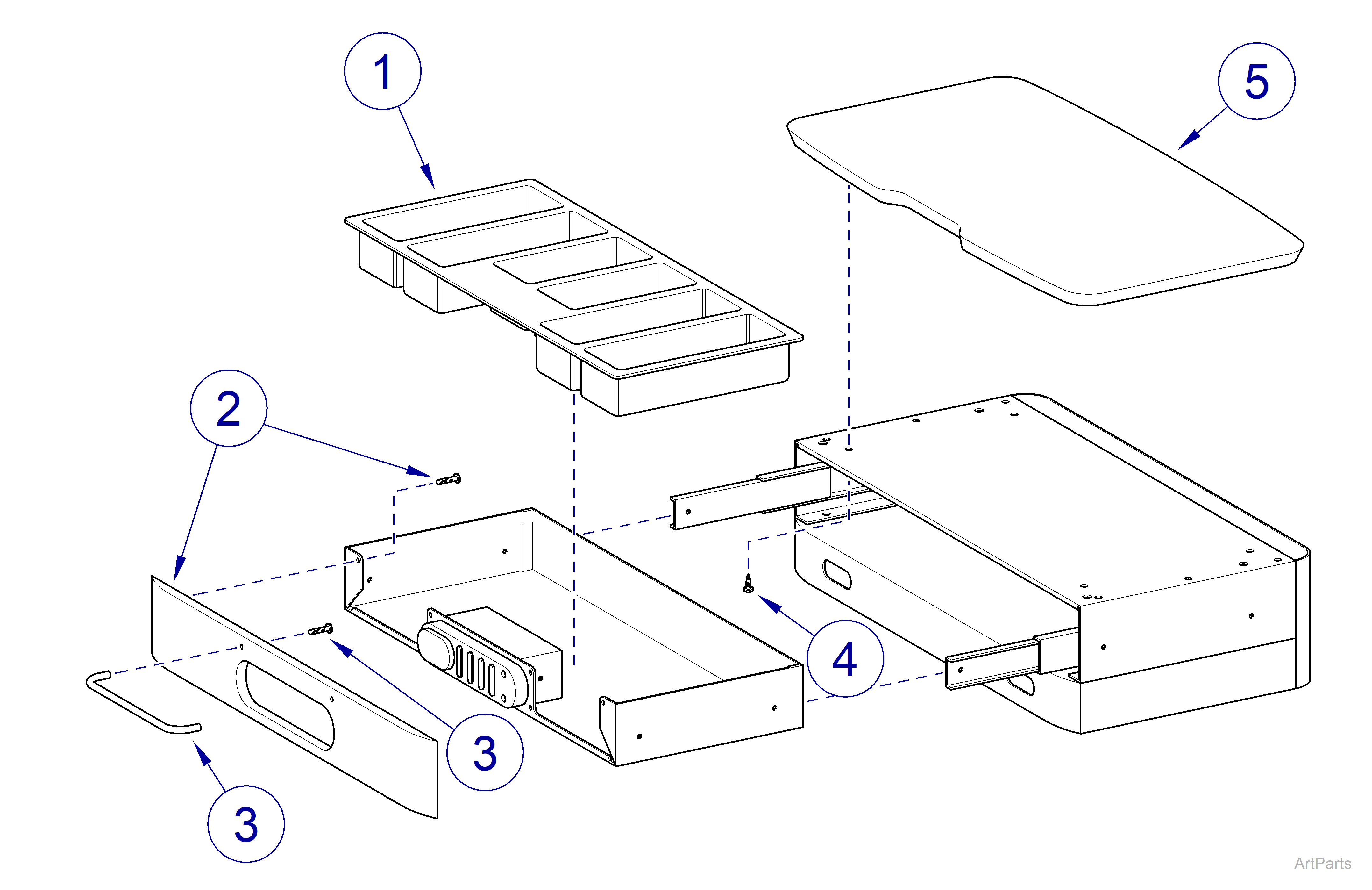

| Midmark® Workstations Med Drawer Options MD40-MM Med Drawer w/ Lock - Previous | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
AS-773 | Med Drawer Insert | 1 |
|
2 |
002-2061-00-xxx | Med Drawer Locking Kit | 1 |
|
3 |
002-1455-00 | Drawer Bin Pull Kit | 1 |
|
4 |
AS-634 | Screw - 10 x 1/2” Sheet Metal | 4 |
|
5 |
AS-1545-xxx |
Med Drawer Work Surface | NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Model Range Current
|
Model |
MD 40-MM Med Drawer w/ Lock |
| Serial Number | Current |

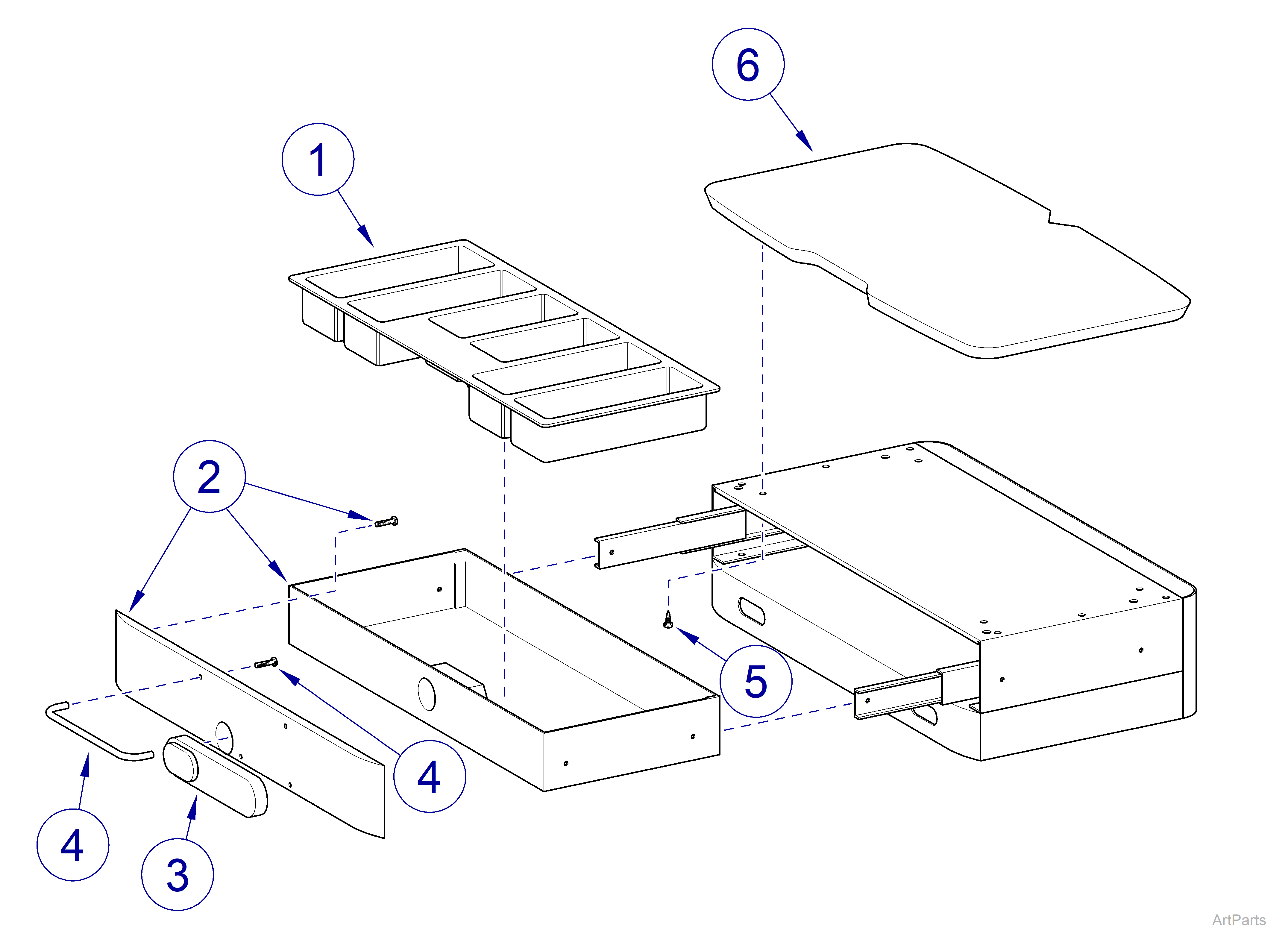

| Midmark® Workstations Med Drawer Options MD40-MM Med Drawer w/ Lock | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
AS-773 | Med Drawer Insert | 1 |
|
2 |
002-2061-00-xxx | Med Drawer Locking Kit | 1 |
|
3 |
3780-021E-23821E | Code Lock | 1 |
|
4 |
002-1455-00 | Drawer Bin Pull Kit | 1 |
|
5 |
AS-634 | Screw 10 x 1/2” Sheet Metal | 4 |
|
6 |
AS-1545-xxx |
Med Drawer Work Surface | NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
