Midmark® Workstations Med Drawer Options MD41-MM Med Drawer w/o Lock

Model

 MD 41-MM Med Drawer w/o Lock
Serial Number Previous

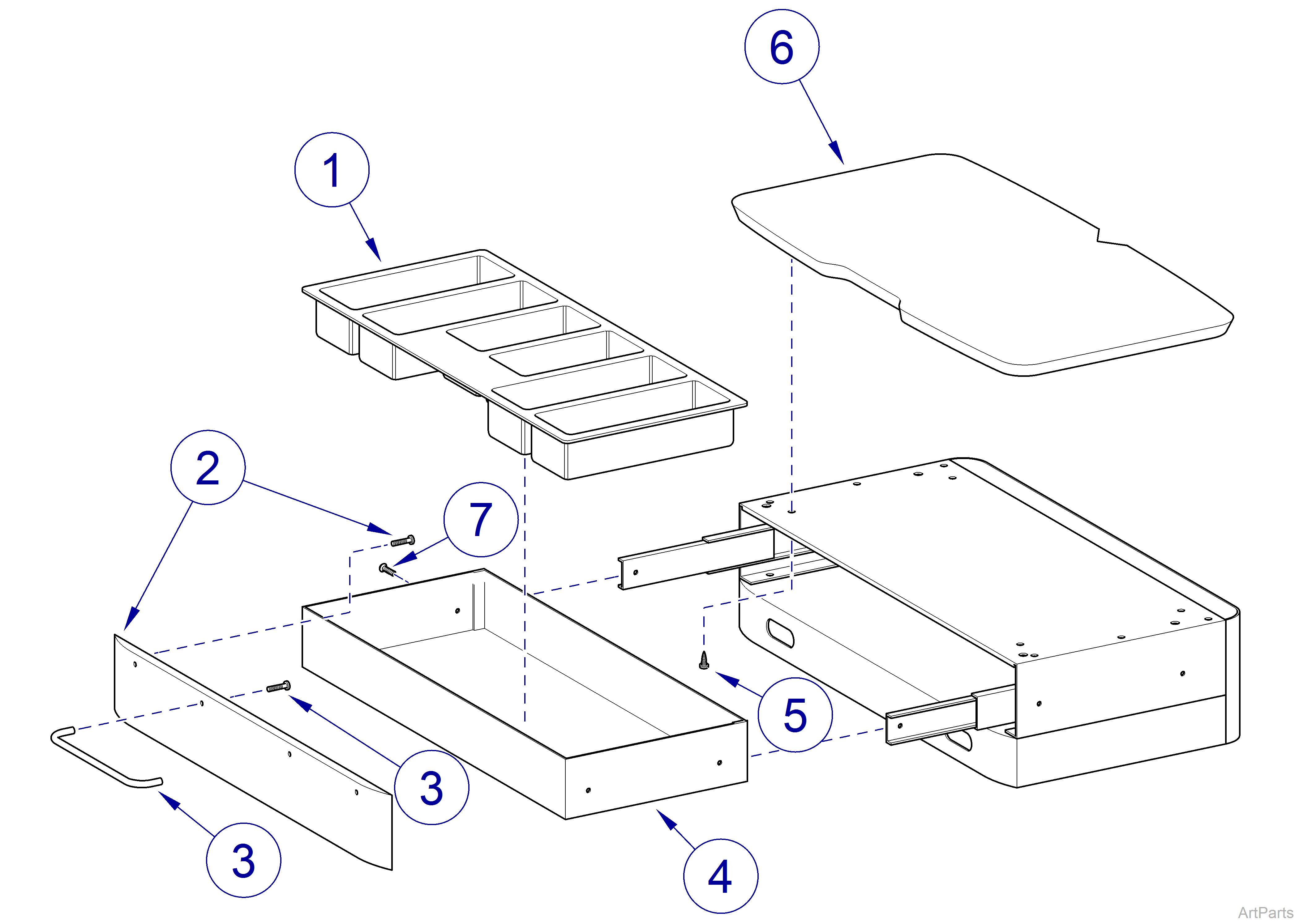

Med Drawer Options MD41-MM Med Drawer w/o Lock (previous)

To convert previous design to present: Use 002-2062-01-xxx to replace 002-1456-01-xxx (1).

Midmark® Workstations Med Drawer Options MD41-MM Med Drawer w/o Lock - previous
Item Part Number Description Qty

1

 AS-773 Med Drawer Insert 1

2

 002-2062-01-xxx Drawer Front w/ Lock Cutout Kit 1

3

 002-1455-00 Drawer Bin Pull Kit 1

4

AS-1769

 Med Drawer Bin NLA

5

 AS-634 Screw 10 x 1/2” Sheet Metal 4

6

AS-1545-xxx

 Med Drawer Work Surface NLA

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 MD 41-MM Med Drawer w/o Lock
Serial Number Current

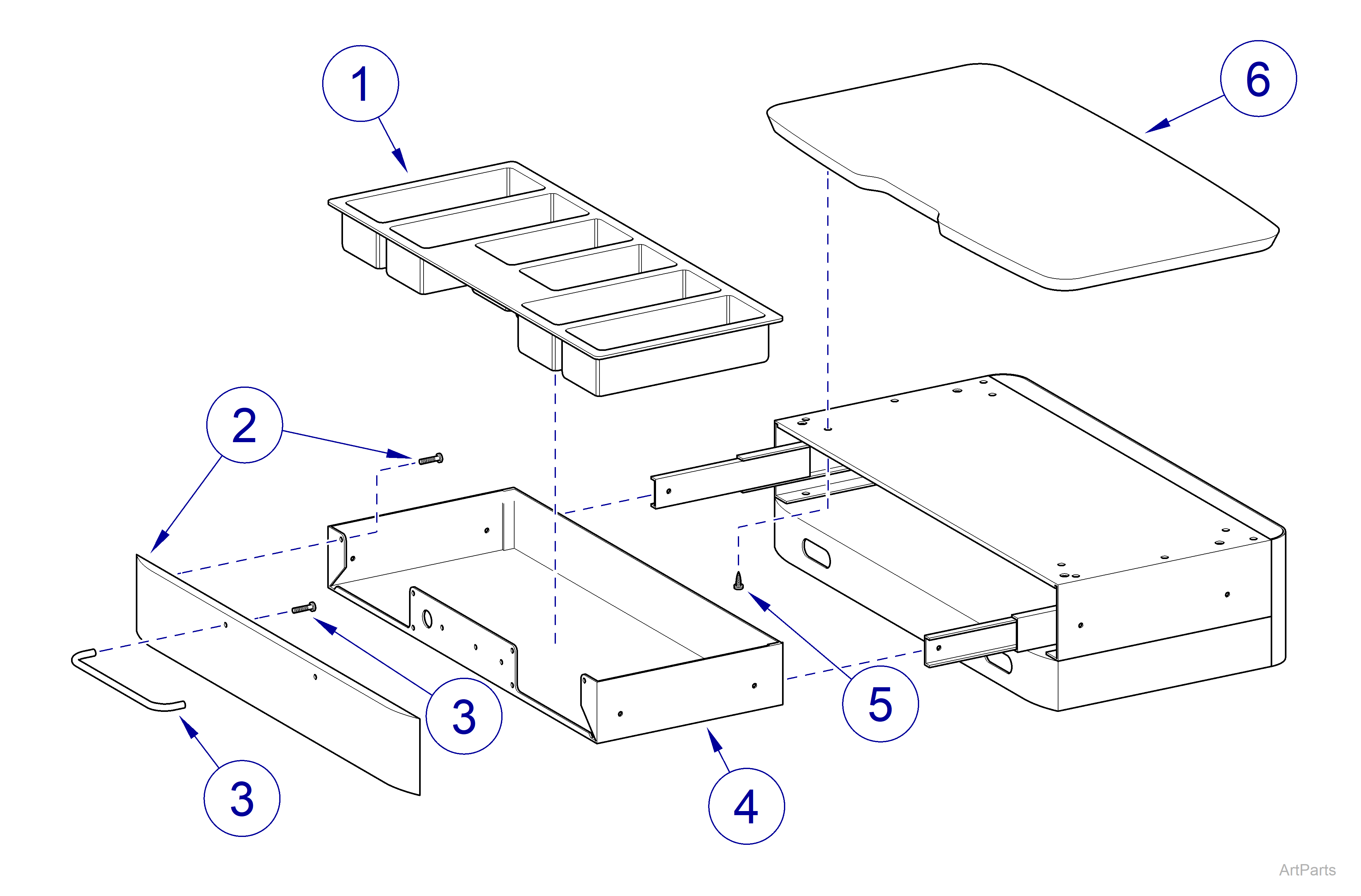

Med Drawer Options MD40-MM Med Drawer w/o Lock

Midmark® Workstations Med Drawer Options MD41-MM Med Drawer w/o Lock
Item Part Number Description Qty

1

 AS-773 Med Drawer Insert 1

2

 002-2062-01-xxx Drawer Front w/ Lock Cutout Kit 1

3

 002-1455-00 Drawer Bin Pull Kit 1

4

 AS-1769 Med Drawer Bin 1

5

 AS-634 Screw 10 x 1/2” Sheet Metal 4

6

AS-1545-xxx

 Med Drawer Work Surface NLA

7

 AS-386 Screw #8-32 x 1/4” 4

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
