6201 Laptop Worksurface

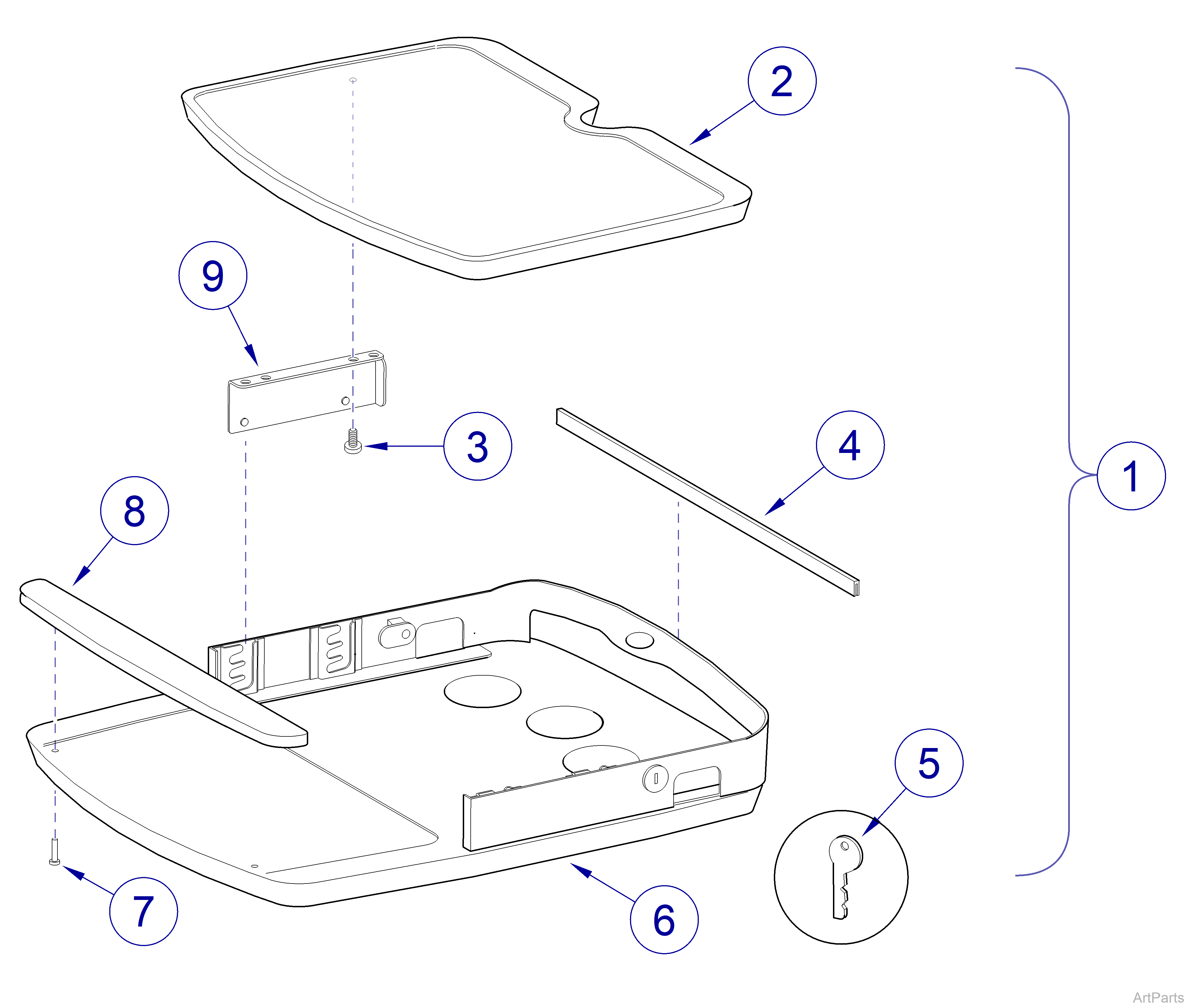

Model Range 6201-001
|
Model |
6201-001 |
| Date | All |
Refer to: the Cabinet Color Options for the order number extension of your desired color.
| 6201 Laptop Worksurface | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
TL2020-xxx | Laptop Worksurface Assembly - Includes items 2 thru 9 | 1 |
|
2 |
002-1329-xxx | Upper Worksurface | 1 |
|
3 |
ENC-105 | Screw 1/4-20 x 5/8” | 4 |
|
4 |
AS-359 | Vinyl Edge Trim, per foot | 2 ft |
|
5 |
Key2 | Key | 2 |
|
6 |
002-1286-xxx | Lower Worksurface / Lock Assembly | 1 |
|
7 |
AS-255 | Screw #8-32 x 1” | 2 |
|
8 |
AS-572 | Wrist Rest | 1 |
|
9 |
Upper Mounting Bracket Options | ||
|
|
AS-342-R |
RH Upper Mounting Bracket |
1 |
|
|
AS-342-L | LH Upper Mounting Bracket - Shown | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

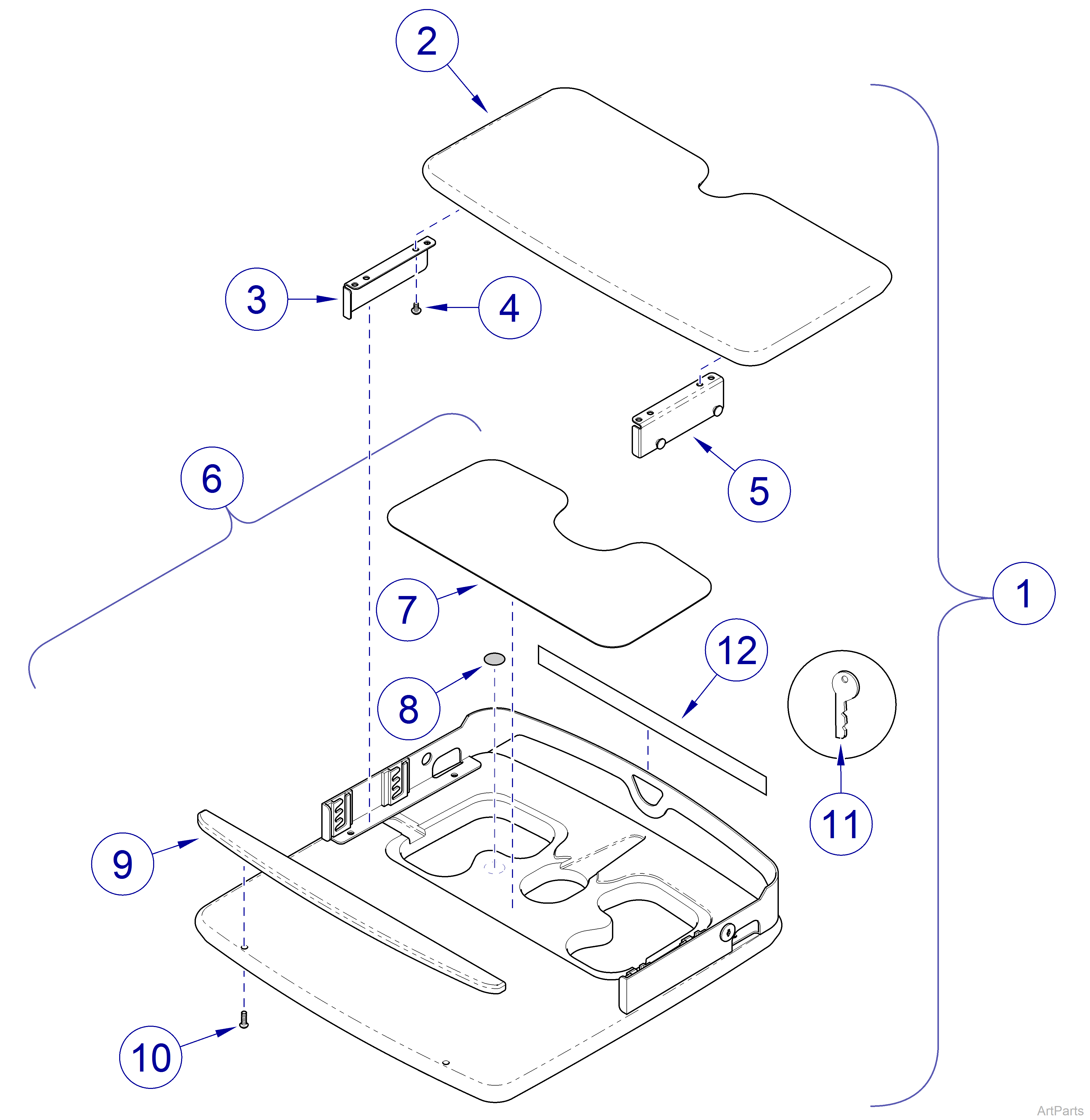

Model Range 6201-002
|
Model |
6201-002 |
| Date | All |
Refer to: the Cabinet Color Options for the order number extension of your desired color.
| 6201 Laptop Worksurface | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
TLB2020-xxx | Laptop Worksurface Assembly - Includes items 2 thru 6 | 1 |
|
2 |
002-1585-xxx | Upper Worksurface | 1 |
|
3 |
AS-342-L | Upper Mounting Bracket - LH | 1 |
|
4 |
ENC-105 | Screw 1/4-20 x 5/8” | 4 |
|
5 |
AS-342-R | Upper Mounting Bracket - RH | 1 |
|
6 |
002-1588-xxx | Lower Worksurface Assembly - Includes items 7 thru 12 | 1 |
|
7 |
AS-1387 | Acrylic Cover Plate | 1 |
|
8 |
AS-1384 | Adhesive Disk | 2 |
|
9 |
AS-572 | Wrist Rest | 1 |
|
10 |
AS-255 | Screw #8-32 x 1” | 2 |
|
11 |
Key2 | Key | 2 |
|
12 |
AS-359 | Vinyl Edge Trim, per foot | 2 ft |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
