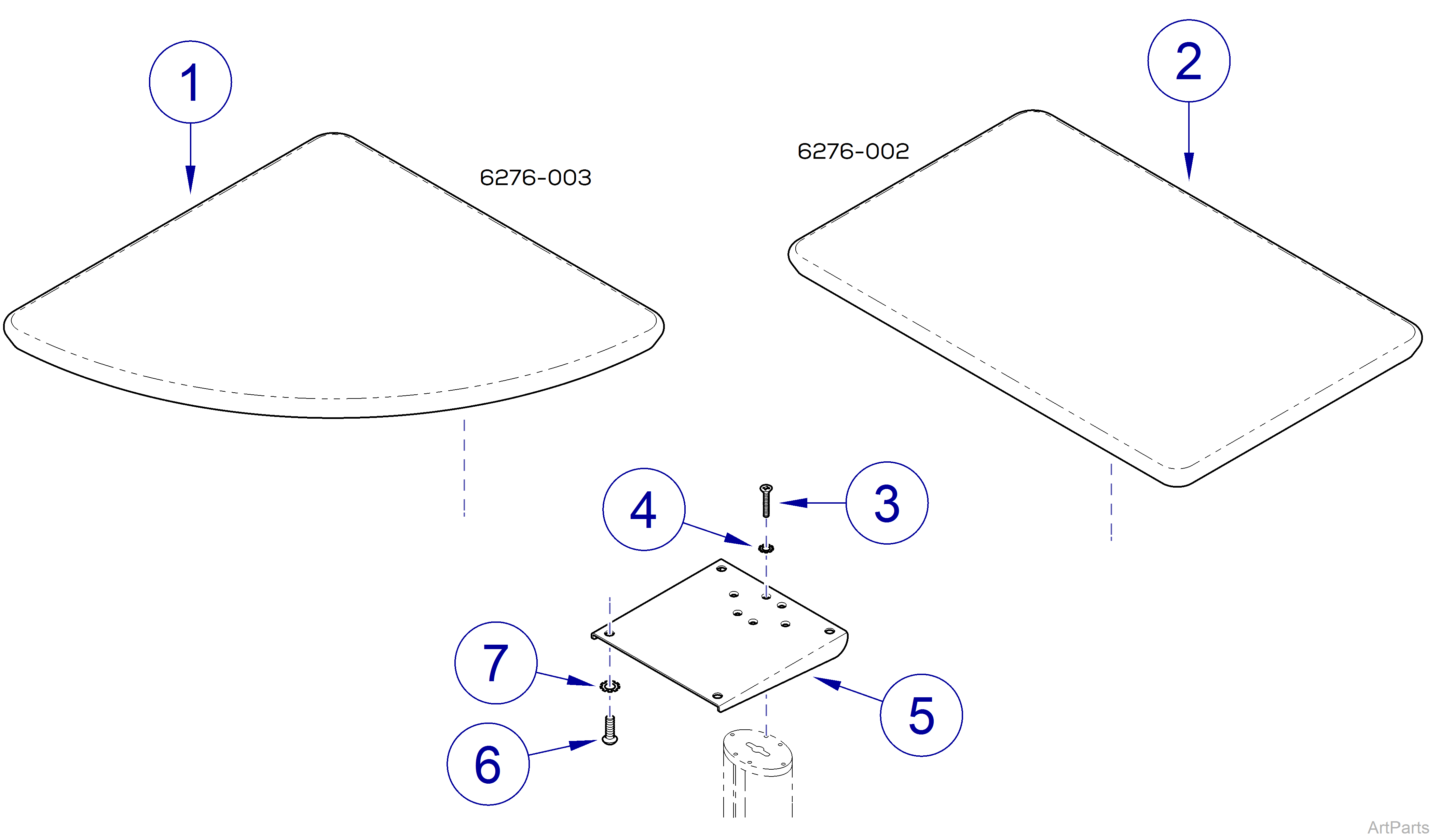

6276 Wall Mounted Units Worksurfaces
|
Model |
6276 -002 / -003 |
| Date | All |
| 6276 Wall Mounted Units Worksurfaces | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
TI2020 | Quarter Round Worksurface, 6276-003 - 20” | 1 |
|
2 |
TI2516 | Rectangular Worksurface, 6276-002 - 25” x 16” | 1 |
|
3 |
AS-1378 | Screw, flat-head, Type 23 #10-24 x 2” | 6 |
|
4 |
AS-688 | Lockwasher, ext. tooth, countersunk #10 | 6 |
|
5 |
AS-1371 | Mounting Bracket | 1 |
|
6 |
AS-633 | Screw 3/8-16 x 3/4” | 4 |
|
7 |
AS-618 | Washer, series W 3/8” | 4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
