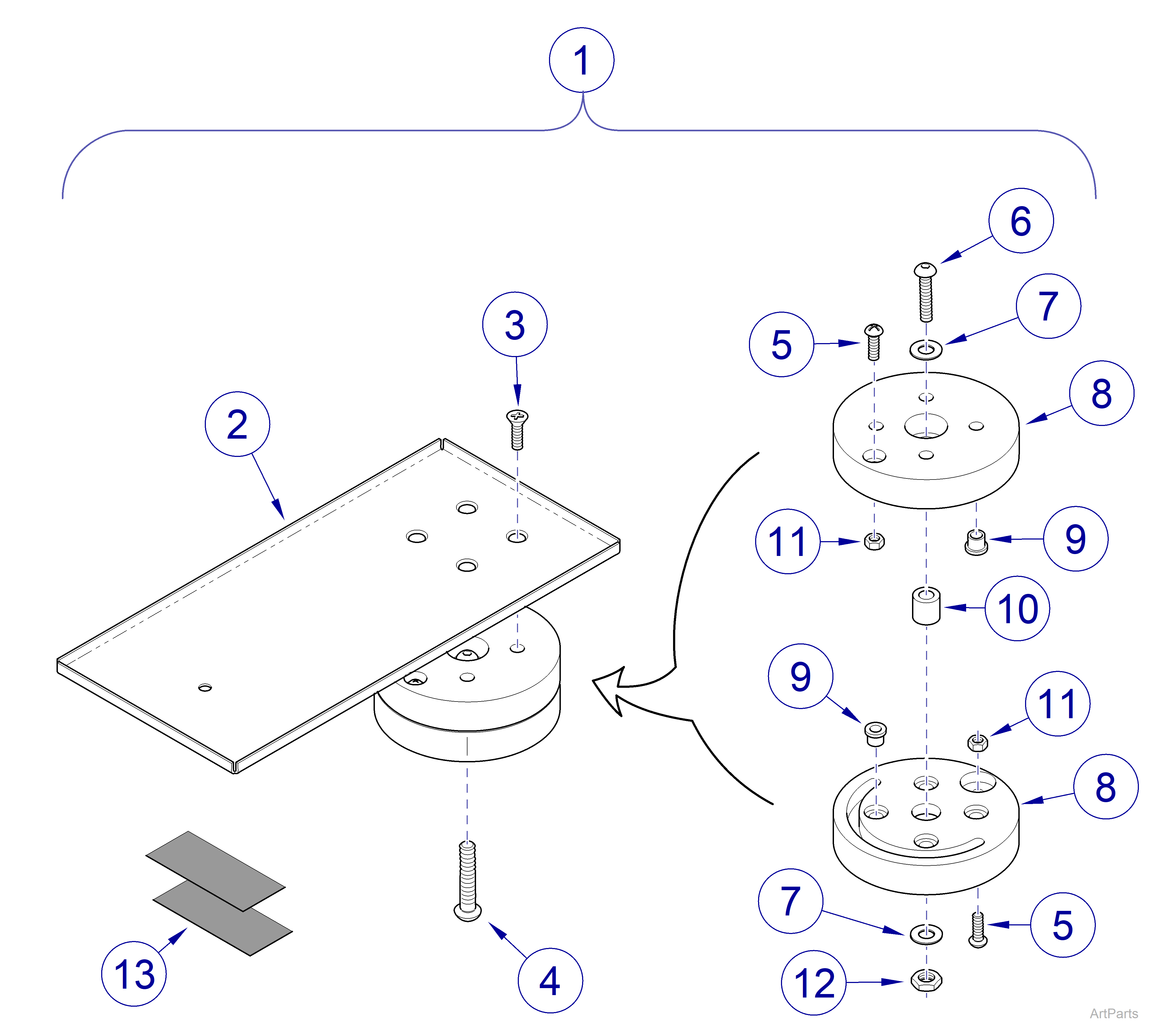

Midmark® Workstations Cordless Bar Code Holder 9A480001
| Midmark® Workstations Cordless Bar Code Holder 9A480001 | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
9A480001 |
Cordless Bar Code Holder Assembly - Includes items 2 thru 12 | NLA |
|
2 |
AS-1038 | Tray - BCH4 | 1 |
|
3 |
JMI002-12 | Flat Head Machine Screw #10-24 x 5/8” | 4 |
|
4 |
AS-1037 | Self Locking PHMS #10-24 x 1 1/4” | 4 |
|
5 |
AS-546 | Pan Head Machine Screw #10-32 x 3/4” | 2 |
|
6 |
AS-1023 | Pivot Screw 1/4-20 x 7/8” | 1 |
|
7 |
AS-299 | Flat Washer 1/4” ID | 2 |
|
8 |
AS-1019 | Pivot Puck | 2 |
|
9 |
AS-1017 | Insert Nut #10-24 | 8 |
|
10 |
AS-1033 | Pivot Spacer 1/2” OD x 7/16” Long - 1/4” screw ID | 1 |
|
11 |
AS-587 | Nylock Hex Nut #10-32 | 2 |
|
12 |
AS-423 | Nylock Hex Nut 1/4-20 | 1 |
|
Hook side |
1 | ||
| AS-557 | Loop Side | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
