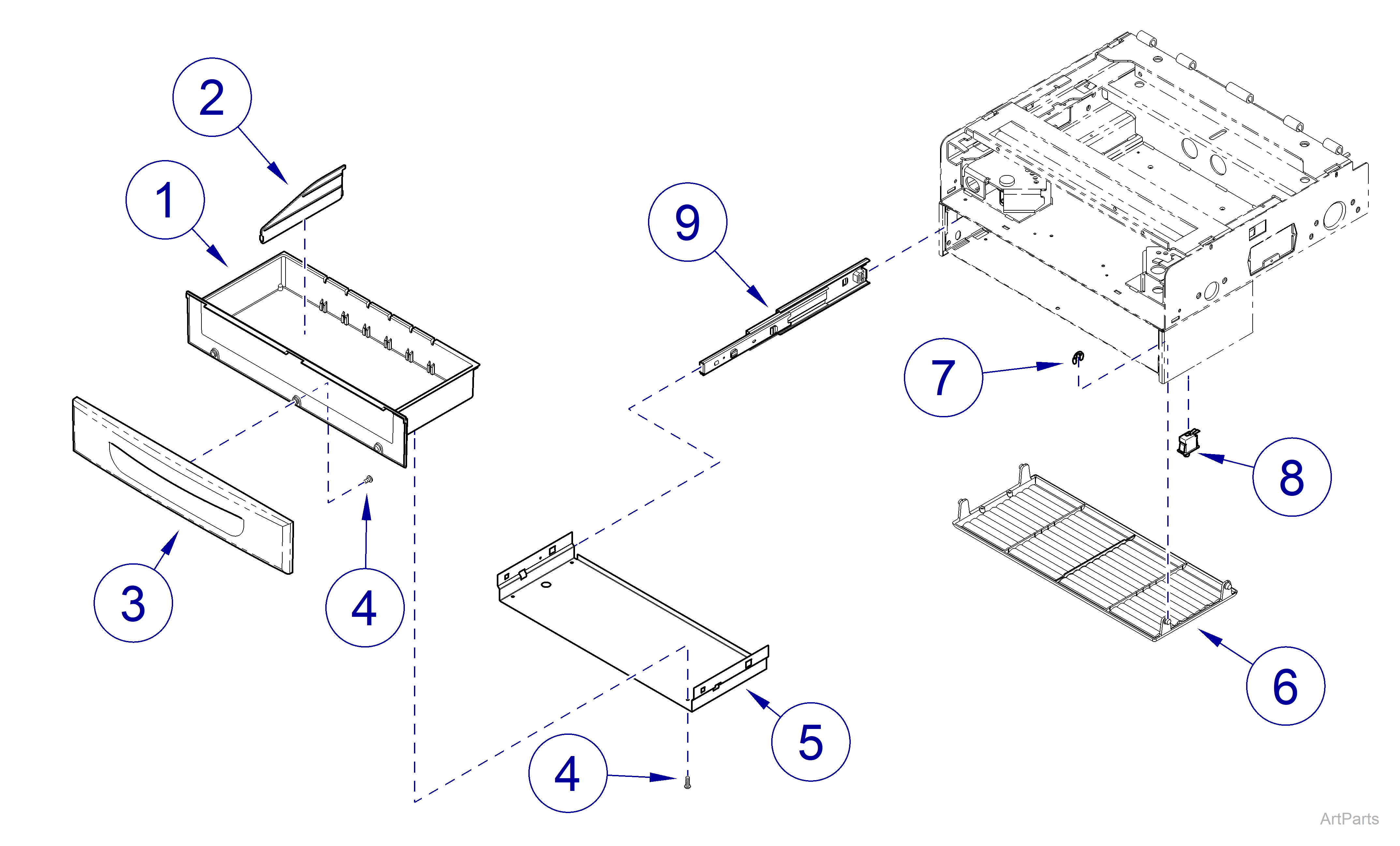

224 and 225 Chair Drawer Components
|
Model |
224 -002, -003, -011 | 225 |
| Serial Number | V2200 thru Present | V2200 thru Present |
| 224 and 225 Chair Drawer Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
053-2673-00-813 | Drawer | 1 |
|
2 |
029-10065-00-813 |
Drawer Dividers - includes qty. 3 |
1 |
|
3 |
002-10046-00 | Drawer Front - includes item 4 | 1 |
|
4 |
042-0184-02 | Screw | 7 |
|
5 |
050-10265-00-813 | Heat Sink | 1 |
|
6 |
053-2664-00-813 | Drawer Bale | 1 |
|
7 |
042-0065-09 | E-Clip | 4 |
|
8 |
015-1055-00 | Limit Switch | 2 |
|
9 |
002-10389-00 | Drawer Slide Kit - includes Right and Left Hand Slides | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
