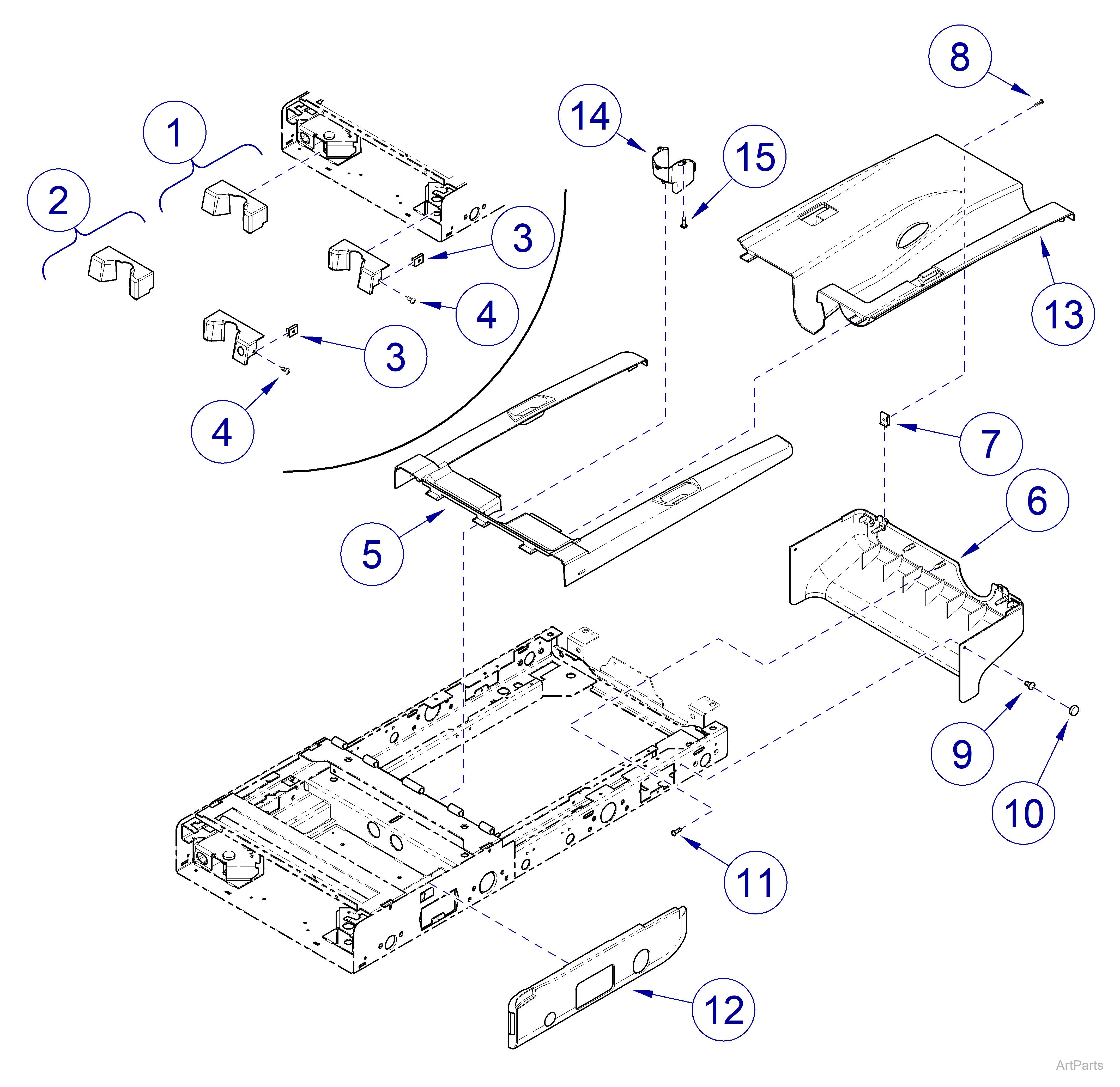

224 and 225 Chair Cladding / Covers
|
Model |
224 | 225 |
| Serial Number | V2200 thru Present | V2200 thru Present |
| 224 and 225 Chair Cladding / Covers | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-10033-00 | Switch Housing Kit - includes items 3 and 4 | 2 |
|
2 |
002-10033-01 | Switch Housing Kit w/ Hole - includes items 3 and 4 | 2 |
|
3 |
121971 | U-Fastener | 1 |
|
4 |
Screw #10-24 x 3/8” | 2 | |
|
5 |
053-2633-00-813 | Fixed Cover | 1 |
|
6 |
002-10044-00 | Back Cladding Kit - includes items 7 thru 11 | 1 |
|
7 |
121971 | U-Fastener | 2 |
|
8 |
040-0010-178 | Screw #10-24 x 1/2” | 2 |
|
9 |
040-0010-47 | Screw #10-24 x 3/8” | 2 |
|
10 |
053-2626-00-791 | Screw Cap | 2 |
|
11 |
042-0184-01 | Screw M4 x 1.79 x 12M | 2 |
|
12 |
Side Cladding Options | ||
| 002-10051-00 | Side Cladding - RH | 1 | |
| 002-10052-00 | Side Cladding - LH | 1 | |
|
13 |
053-2632-00-813 | Top Cover | 1 |
|
14 |
053-10042-00-813 | Gas Spring Cover - 224 only | 1 |
|
15 |
042-0184-01 | Screw - 224 only | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
