224 and 225 Chair Shrouds
Serial Number Range: V2200 thru V2865590
|

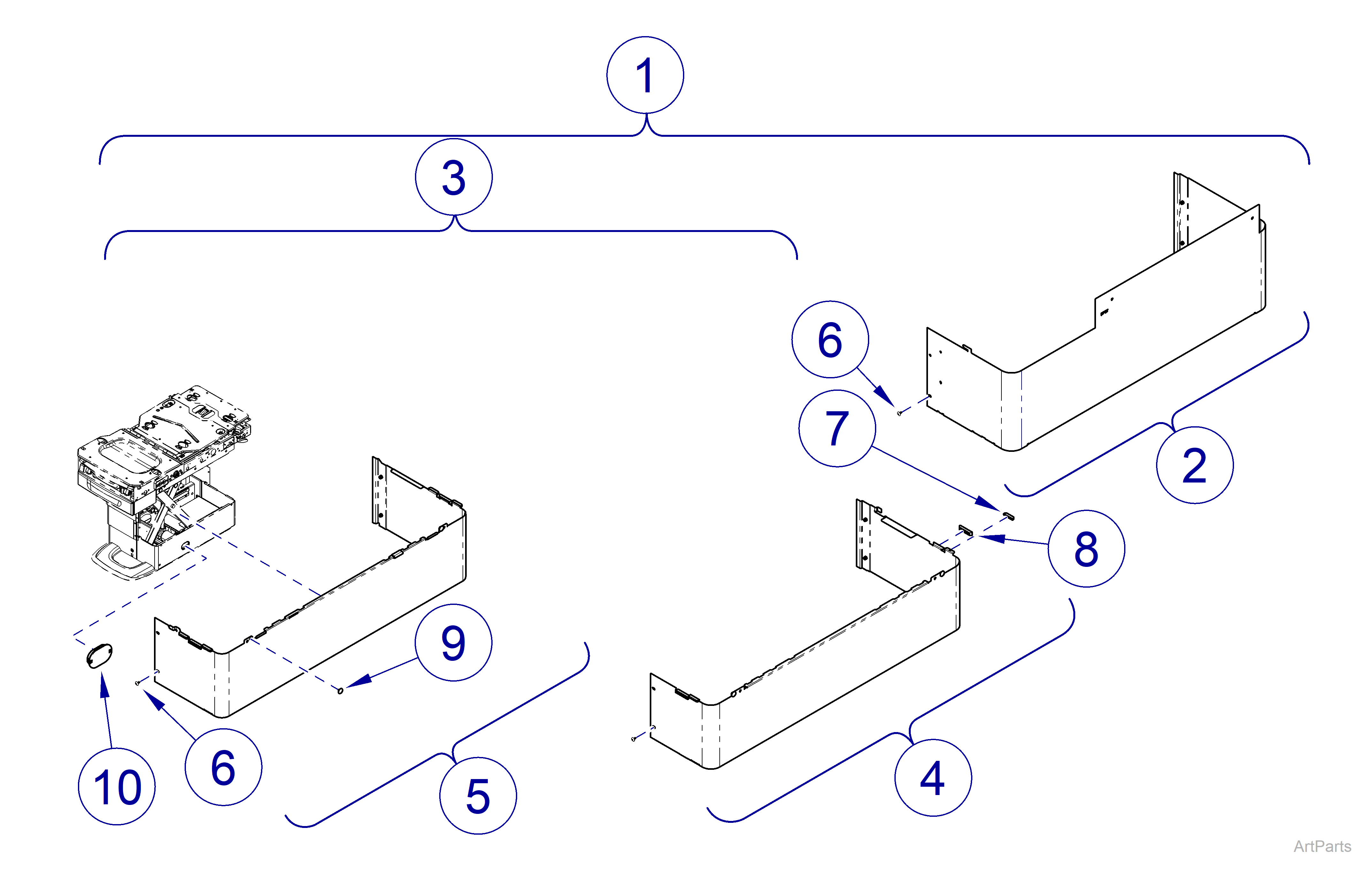

Model |
224 | 225 |
| Serial Number | V2200 thru V2865590 | V2200 thru V2865590 |
| 224 and 225 Chair Shrouds | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-10031-00 | Shroud Assembly Kit - includes items 2 and 3 | 1 |
|
2 |
Outer Shroud Kit Options | ||
| 002-10048-00 | LH shown - includes item 6 |
1 |
|
| 002-10047-00 | RH - includes item 6 |
1 |
|
|
3 |
002-10032-00 | Mid Shroud Assembly Kit - includes items 4 and 5 | 1 |
|
4 |
002-10272-00 | Outer Middle Shroud Kit - includes items 6-9 |
2 |
|
5 |
002-10271-00 | Inner Middle Shroud Kit - includes items 6-9 |
2 |
|
6 |
040-0008-121 | Screw #8-32 x 5/16” | 12 |
|
7 |
053-0752-00 | Snap-On Glide | 12 |
|
8 |
053-2213-00 | Shroud Isolator | 8 |
|
9 |
053-2301-00 | Stem Bumper | 8 |
|
10 |
053-2684-00-815 | Motor Hole Plug | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V2865591 thru Present
|

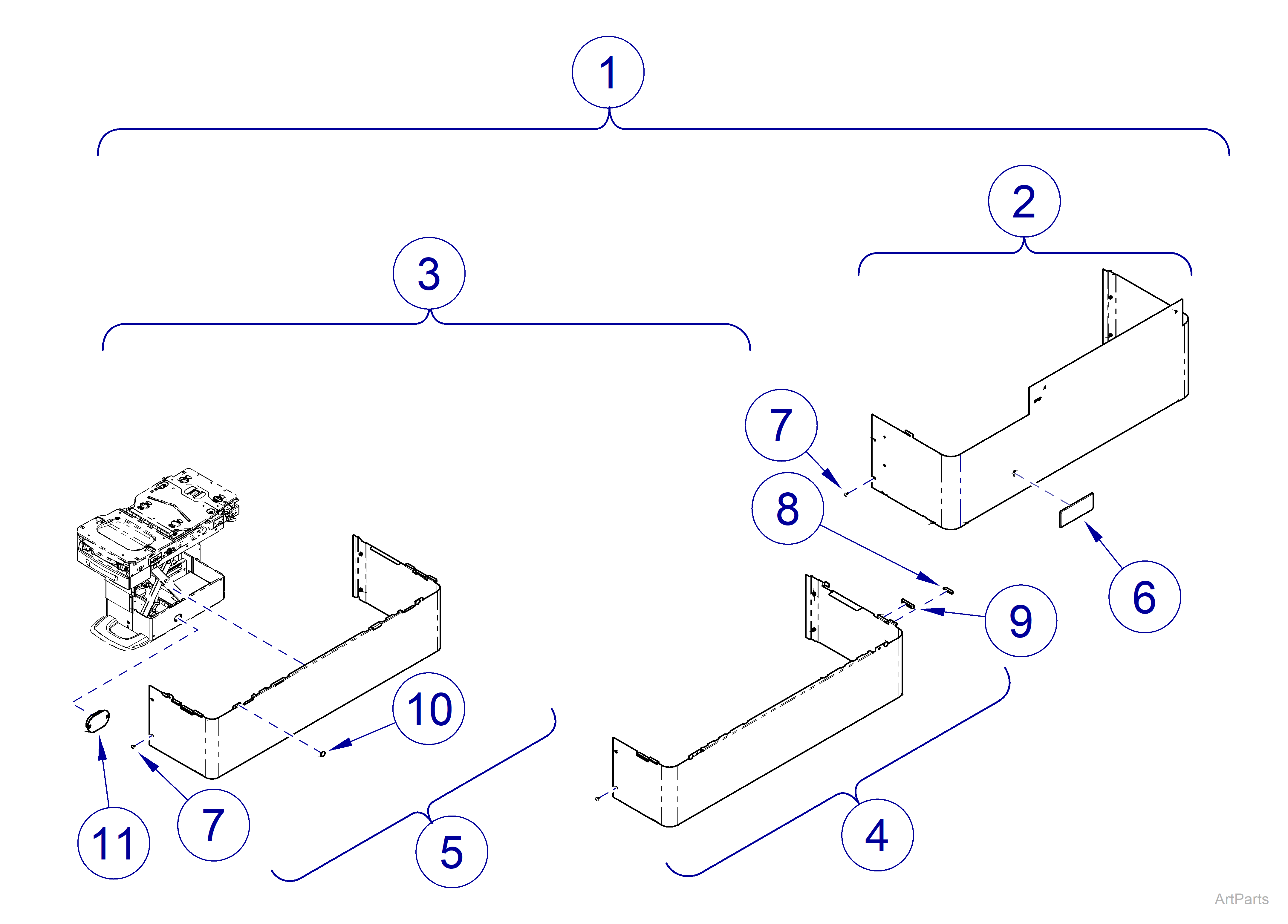

Model |
224 | 225 |
| Serial Number | V2865591 thru Present | V2865591 thru Present |
| 224 and 225 Chair Shrouds | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-10031-00 | Shroud Assembly Kit - includes items 2 and 3 | 1 |
|
2 |
Outer Shroud Kit Options | ||
| 002-10048-00 | LH shown - includes item 6 and 7 |
1 |
|
| 002-10047-00 | RH - includes item 6 and 7 |
1 |
|
|
3 |
002-10032-00 | Mid Shroud Assembly Kit - includes items 4 and 5 | 1 |
|
4 |
002-10272-00 | Outer Middle Shroud Kit - includes items 7-10 |
2 |
|
5 |
002-10271-00 | Inner Middle Shroud Kit - includes items 7-10 |
2 |
|
6 |
053-10849-00 | Ritter Badge | 2 |
|
7 |
040-0008-121 | Screw #8-32 x 5/16” | 12 |
|
8 |
053-0752-00 | Snap-On Glide | 12 |
|
9 |
053-2213-00 | Shroud Isolator | 8 |
|
10 |
053-2301-00 | Stem Bumper | 8 |
|
11 |
053-2684-00-815 | Motor Hole Plug | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
