224 and 225 Chair Drawer Heater System Theory of Operation

Model	224-002 and -003	225-002 and -003
Serial Number	All	All

224 and 225 Chair Drawer Heater System Theory of Operation

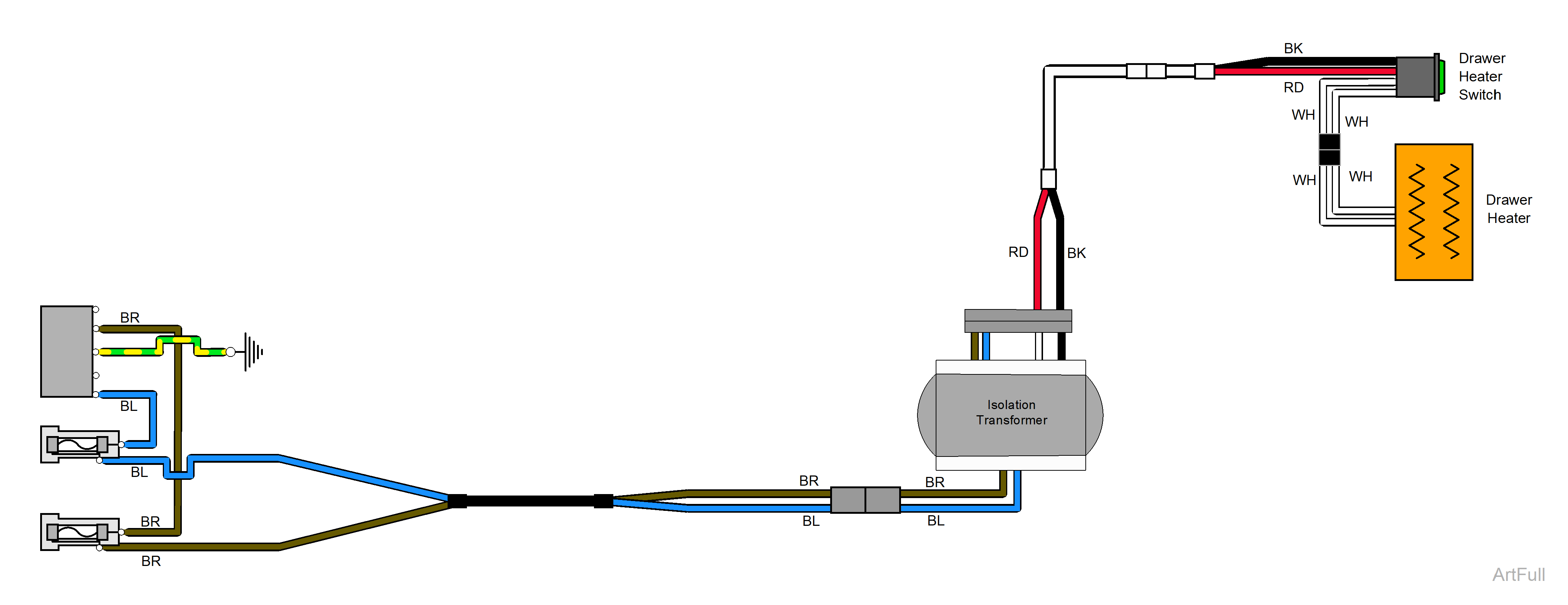

This illustration shows only the components that affect the Drawer Heater System.

Drawer Heater

Line voltage (115 VAC) is supplied directly to the Drawer Heater thru two inlet fuses, isolation transformer, and Drawer Heater switch. Voltage bypasses the PC Board(s).

When the Drawer Heater switch is turned on, current flows to the heater plate. When the heater plate is energized, it warms the contents of the drawer.
