To isolate a foot control malfunction, check continuity of each switch within foot control.

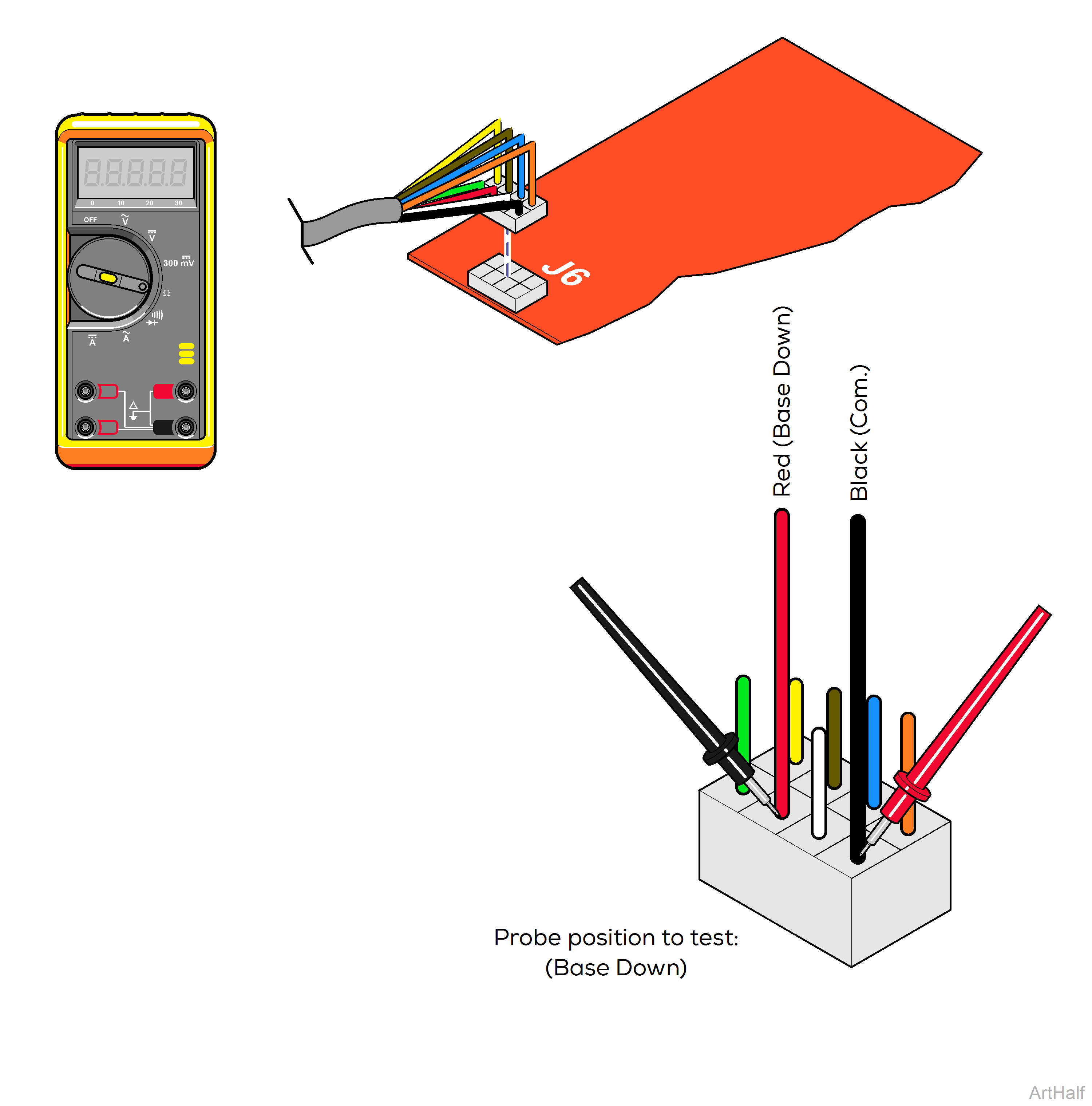

1.Disconnect wire harness from J6 on Motor Control PC board.

2.Set meter to Ohms.

3.Place one meter probe on Black wire (Common) of wire harness. Place other meter probe on the wire that corresponds to the switch being tested.

Switch	Base Down
Base Up	White
Base Down	Red
Back Up	Green
Back Down	Orange
N/A	Blue
N/A	Brown

With Switch Untripped
Meter Reading	Required Action
Any resistance reading	Replace Control
OL	Switch is good

With Switch Tripped
Meter Reading	Required Action
Any resistance reading	Switch is good
OL	Test control cord Refer to: Foot control cord test below

To isolate a foot control cord malfunction, check continuity of each wire within foot control cord.

1.Disconnect control cord from foot control and chair base.

2.Set meter to Ohms.

3.Place meter probes on each wire within the control cord.

Meter Reading	Required Action
Any resistance reading less than 20 ohms	Control cord is good.
OL	Replace control cord.
