225 Exam Chair Seat / Back Mounting Frame

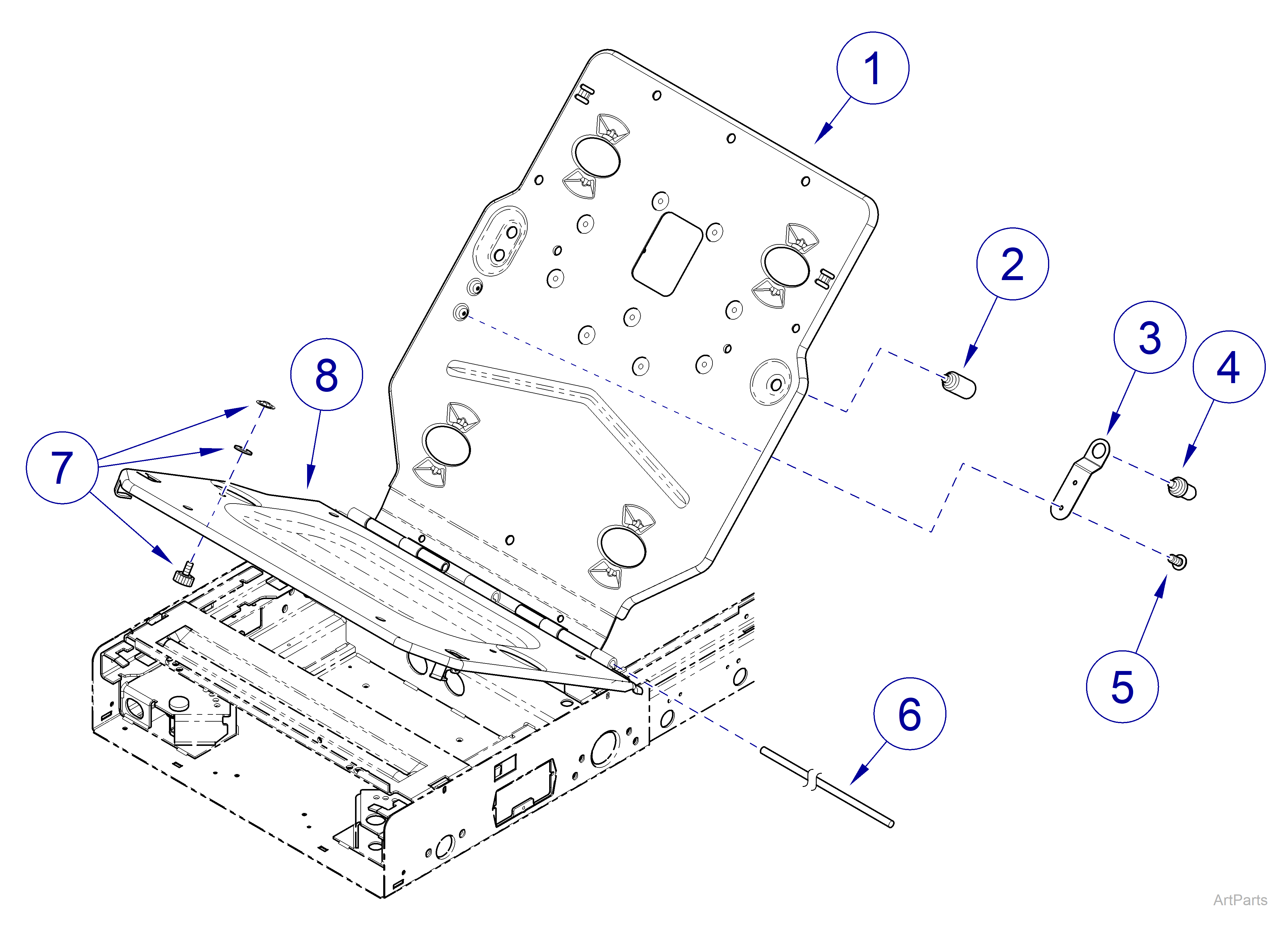

Serial Number Range: V2200 Thru V2633627
|
Model |
225 |
| Serial Number | V2200 thru V2633627 |
| 225 Exam Chair Seat / Back Mounting Frame | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-7104-00-813 |
Back Rest Mounting Frame |
NSS |
|
2 |
053-2692-00-814 | Back Rest Bumper | 2 |
|
3 |
050-6494-00-813 | Limit Switch Bracket | 1 |
|
4 |
053-2691-00-814 | Limit Switch Bumper | 1 |
|
5 |
040-0010-47 | Screw | 2 |
|
6 |
057-0840-00 | Hinge Rod | 1 |
|
7 |
002-10270-00 | Upholstery Thumb Screw Kit | 1 |
|
8 |
050-10112-00-813 | Seat Mounting Frame | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

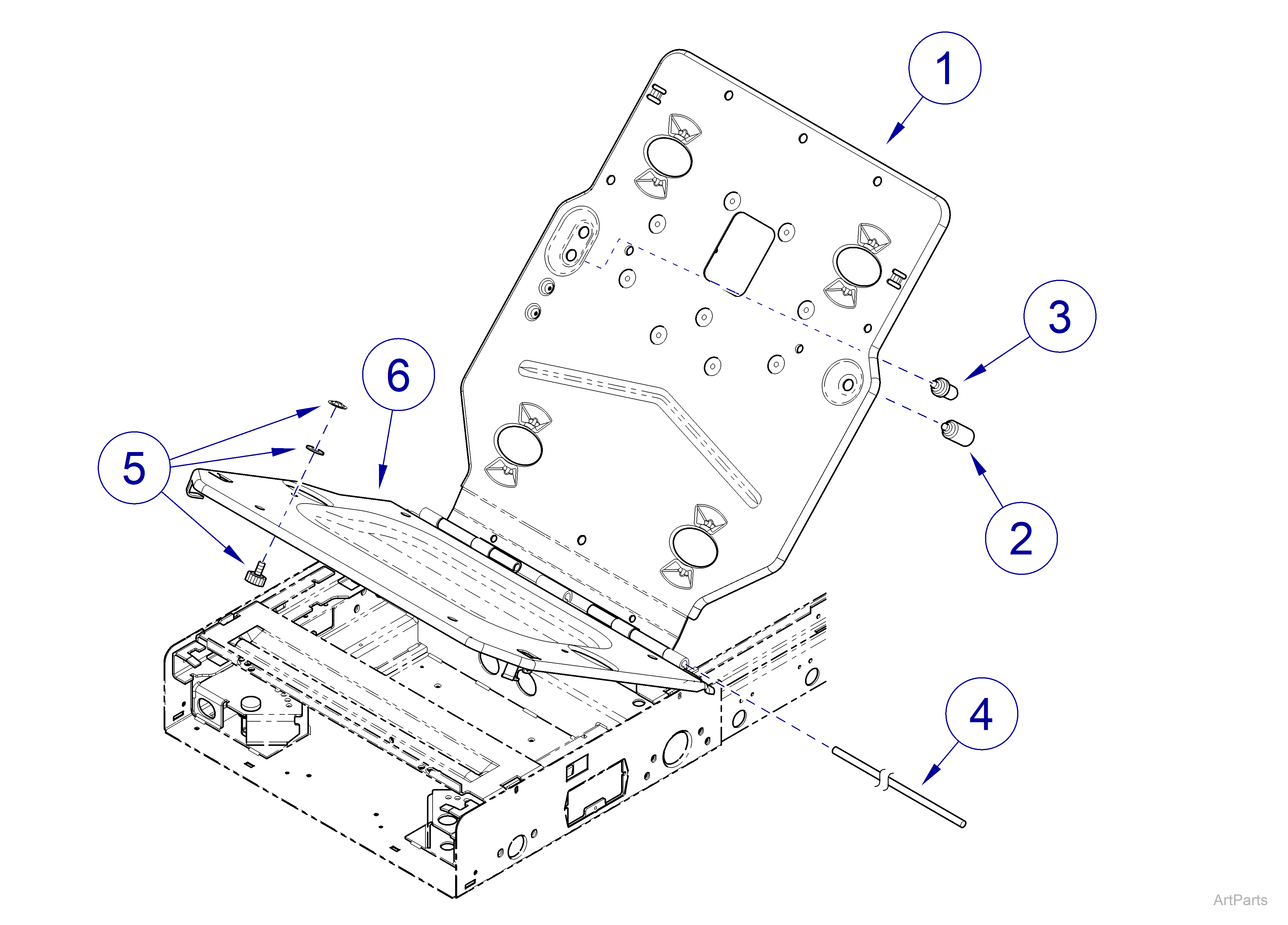

Serial Number Range: V2633628 Thru Present
|
Model |
225 |
| Serial Number | V2633628 thru Present |
| 225 Exam Chair Seat / Back Mounting Frame | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-7104-00-813 |
Back Rest Mounting Frame |
NSS |
|
2 |
053-2692-00-814 | Back Rest Bumper | 2 |
|
3 |
053-2691-00-814 | Limit Switch Bumper | 1 |
|
4 |
057-0840-00 | Hinge Rod | 1 |
|
5 |
002-10270-00 | Upholstery Thumb Screw Kit | 1 |
|
6 |
050-10112-00-813 | Seat Mounting Frame | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
