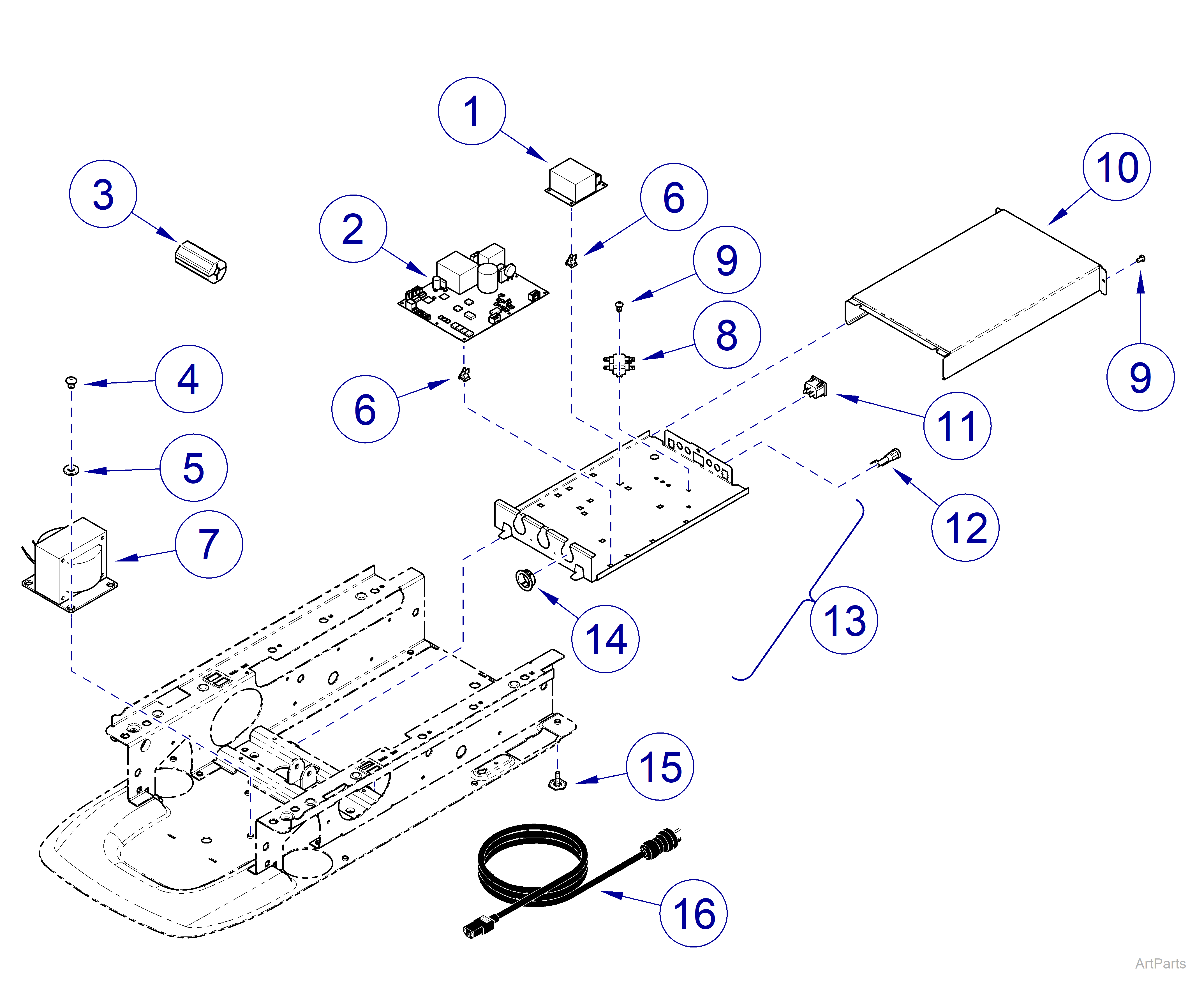

225 Exam Chair Base Components
|
Model |
225 |
| Serial Number | V2200 thru Present |
| 225 Exam Chair Base Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
015-3506-00 | Passive PC Board | 1 |
|
2 |
002-10083-01 | PC Board - include item 3 | 1 |
| 3 | 015-1581-00 | EMI Suppression Core | 1 |
|
4 |
040-0312-49 | Screw 5/16-#18 x 3/8” | 2 |
|
5 |
045-0001-157 | Flat Washer 5/16” | 2 |
|
6 |
053-1664-00-000 | Standoff | 12 |
|
7 |
015-3478-00 | Transformer | 1 |
|
8 |
015-2622-00 | Line Filter | 1 |
|
9 |
040-0008-29 | Screw #32 x 5/16” |
5 |
|
10 |
002-10447-00 | PC Board Cover Kit | 1 |
|
11 |
015-0639-00 | Power Cord Inlet | 1 |
|
12 |
015-1259-06 | Fuse Holder | 4 |
|
13 |
002-10085-00 | Main Control Board Housing Kit - include item 14 | 1 |
|
14 |
053-0068-06 | Snap Bushing | 3 |
|
15 |
016-0001-00 | Leveling Foot | 2 |
|
16 |
015-1338-00 | Power Cord | 1 |
|
17 |
Refer to: | Fuses | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
