281 Chair Blood Draw Chair
Model Range 281-001 thru -004
|
Model |
281 -001 thru -004 |
| Serial Number | V2200 thru V1483909 and VAE000001 thru Present |
Refer to: Upholstery Color Options for the order number extension of your desired color.

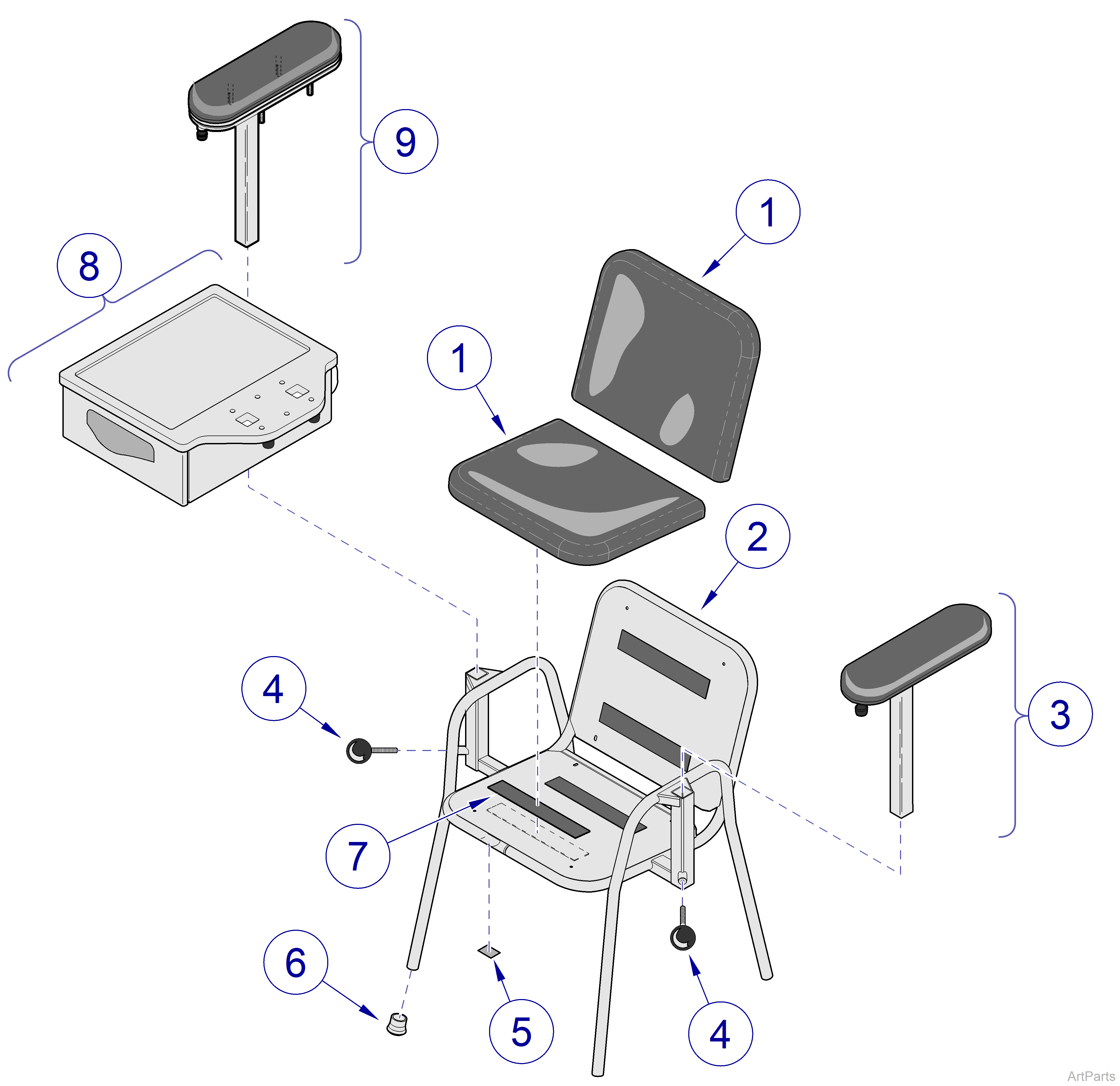

| 281 Chair Blood Draw Chair | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Upholstered Pad Options - specify color - Qty. of 2 to replace both seat and back | ||
| 028-0548-00 | Std | 1 | |
|
028-0711-00 |
Cal 133 |
NLA |
|
|
2 |
030-1517-00-216 |
Chair Weldment | NSS |
|
3 |
Refer to: | 281 Rotating Arm Assembly | - |
|
4 |
029-2476-00 | Knob Assembly | 2 |
|
5 |
Serial Number Label | NSS | |
|
6 |
053-0373-00-337 | Chair Tip, White | 4 |
|
7 |
053-0105-13 |
Loop Fastener Tape |
4 |
|
8 |
Refer to: | 281 Drawer Assembly | - |
|
9 |
Refer to: | 281 Drawer Rotating Arm Assembly | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Model Range 281-011 thru -014
|
Model |
281 -011 thru -014 |
| Serial Number | All |
Refer to: Upholstery Color Options for the order number extension of your desired color.
| 281 Chair Blood Draw Chair | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Upholstered Pad - specify color - Qty. of 2 to replace both seat and back | ||
| 028-0548-00 | Std | 1 | |
|
028-0711-00 |
Cal 133 |
NLA |
|
|
2 |
030-1517-00-813 |
Chair Weldment | NLA |
|
3 |
Refer to: | 281 Rotating Arm Assembly | - |
|
4 |
029-2476-00 | Knob Assembly | 2 |
|
5 |
Serial Number Label | 1 | |
|
6 |
053-0373-00-337 | Chair Tip, White | 4 |
|
7 |
053-0105-13 |
Loop Fastener Tape |
4 |
|
8 |
Refer to: | 281 Drawer Assembly | - |
|
9 |
Refer to: | 281 Drawer Rotating | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
