626 Chair Base Up / Down Function Theory of Operation
The illustrations show only the components that affect the Base Up / Down function. Refer to the dropdowns for a detailed description of the Base Up / Down operation.

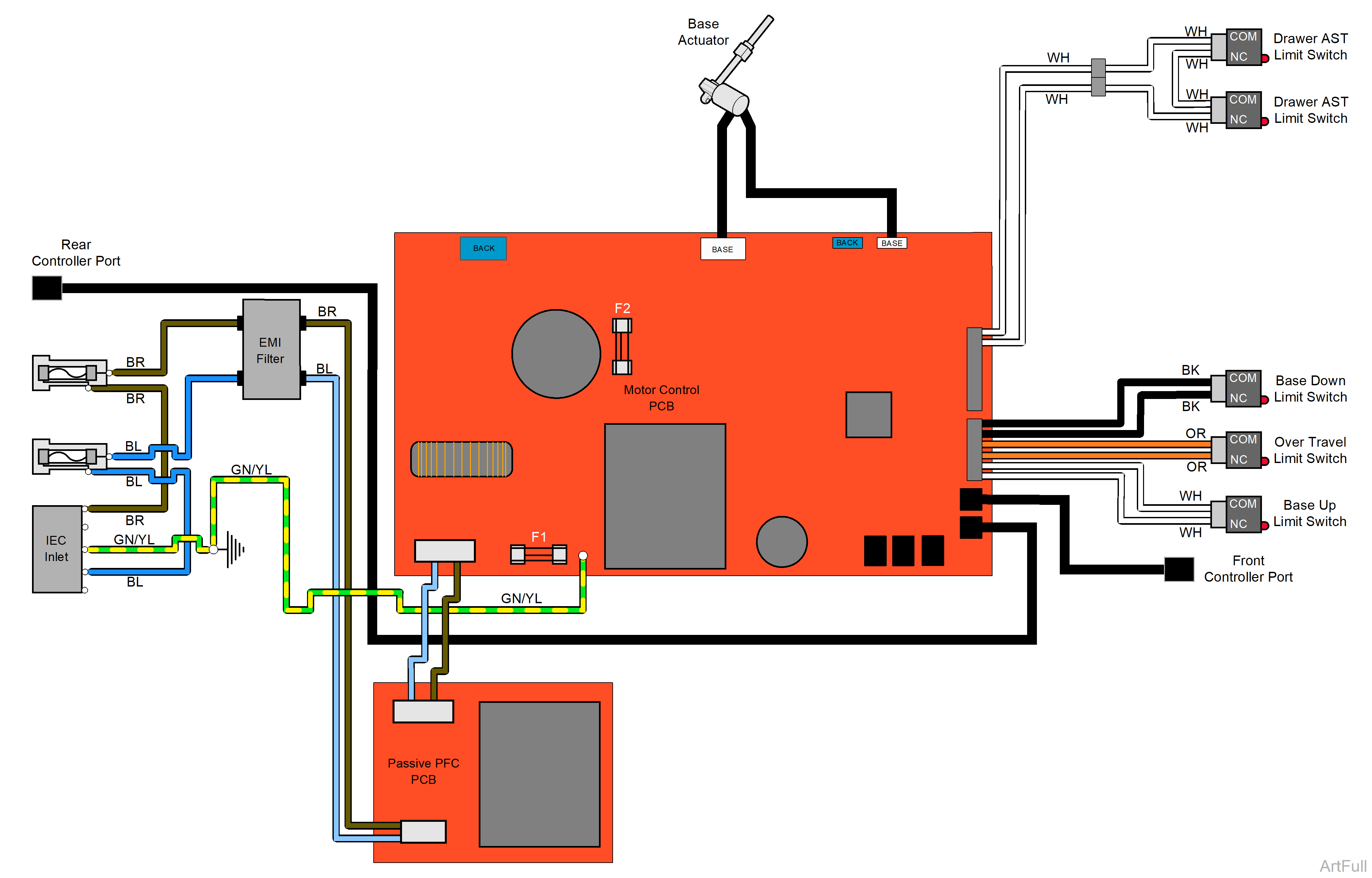

Model Range 626-001 and -002
|
Model |
626-001 and -002 |
| Serial Number | All |
Power to Foot / Hand Control
Line voltage (115 VAC) is supplied thru two primary fuses located at the table base.
The 115 VAC is sent thru the Passive PFC board to the Motor Control PC board. The Motor Control PC board reduces the voltage to 3.3 VDC which is supplied to the foot / hand control.
Fuse F1 on the Motor Control PC board protects the transformer on the board and the electronics supplied by the transformer.
Base Up Operation
When the Base Up function is activated, the foot / hand control sends a command to the Motor Control PC Board. The Motor Control PC board supplies the correct voltage to the Base actuator motor.
Fuse F2 on the Motor Control PC board protects the Base actuator motor.
The actuator motor runs and raises the table.
The actuator motor runs until:
•Foot / Hand control button is released.
•Stop button is pressed.
•Base Up limit switch is tripped.
•Overtravel limit switch is tripped.
•Overcurrent protection tripped.
Base Down Operation
When the Base Down function is activated, the foot / hand control sends a command to the Motor Control PC board. The Motor Control PC board supplies the correct voltage to the Base actuator motor.
Fuse F2 on the Motor Control PC board protects the Base actuator motor.
The actuator motor runs and lowers the table.
The actuator motor runs until:
•Foot / Hand control button is released.
•Stop button is pressed.
•Base Down limit switch is tripped.
•Active Sensing Technology™ activated.
•Overcurrent protection tripped.

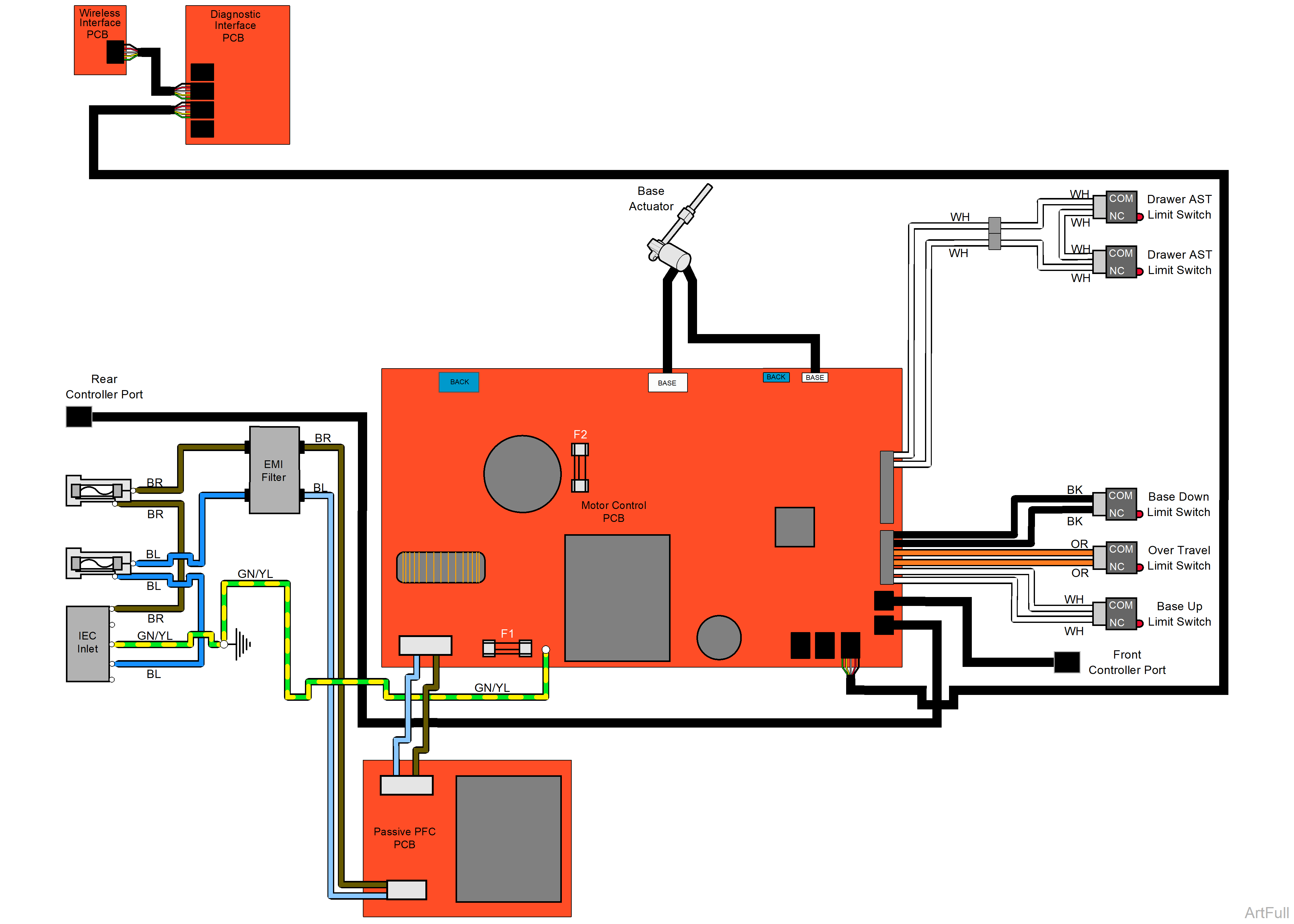

Model Range 626-003 and -004
|
Model |
626-003 and -004 |
| Serial Number | All |
Power to Foot / Hand Control
Line voltage (115 VAC) is supplied thru two primary fuses located at the table base.
The 115 VAC is sent thru the Passive PFC board to the Motor Control PC board. The Motor Control PC board reduces the voltage to 12 VDC which is supplied thru the Diagnostic Interface PC board to the Wireless Interface PC board. The Wireless Interface PC board transmits a signal to the foot / hand controls.
Fuse F1 on the Motor Control PC board protects the transformer on the board and the electronics supplied by the transformer.
Base Up Operation
When the Base Up function is activated, the foot / hand control transmits a signal to the Wireless Interface PC board. That command is sent thru the Diagnostic Interface PC board to the Motor Control PC Board. The Motor Control PC board supplies the correct voltage to the Base actuator motor.
Fuse F2 on the Motor Control PC board protects the Base actuator motor.
The actuator motor runs and raises the table.
The actuator motor runs until:
•Foot / Hand control button is released.
•Stop button is pressed.
•Base Up limit switch is tripped.
•Overtravel limit switch is tripped.
•Overcurrent protection tripped.
Base Down Operation
When the Base Down function is activated, the foot / hand control transmits a signal to the Wireless Interface PC board. That command is sent thru the Diagnostic Interface PC board to the Motor Control PC Board. The Motor Control PC board supplies the correct voltage to the Base actuator motor.
Fuse F2 on the Motor Control PC board protects the Base actuator motor.
The actuator motor runs and lowers the table.
The actuator motor runs until:
•Foot / Hand control button is released.
•Stop button is pressed.
•Base Down limit switch is tripped.
•Active Sensing Technology™ activated.
•Overcurrent protection tripped.
Model Range 626-005 and -006
|
Model |
626-005 and -006 |
| Serial Number | All |
Power to Foot / Hand Control
Line voltage (115 VAC) is supplied thru two primary fuses located at the table base.
The 115 VAC is sent thru the Passive PFC board to the Motor Control PC board. The Motor Control PC board reduces the voltage to 3.3 VDC which is supplied thru the Wired Scale Control PC board to the foot / hand control.
Fuse F1 on the Motor Control PC board protects the transformer on the board and the electronics supplied by the transformer.
Base Up Operation
When the Base Up function is activated, the foot / hand control sends a command thru the Wired Scale Control PC board to the Motor Control PC Board. The Motor Control PC board supplies the correct voltage to the Base actuator motor.
Fuse F2 on the Motor Control PC board protects the Base actuator motor.
The actuator motor runs and raises the table.
The actuator motor runs until:
•Foot / Hand control button is released.
•Stop button is pressed.
•Base Up limit switch is tripped.
•Overtravel limit switch is tripped.
•Overcurrent protection tripped.
Base Down Operation
When the Base Down function is activated, the foot / hand control sends a command thru the Wired Scale Control PC board to the Motor Control PC board. The Motor Control PC board supplies the correct voltage to the Base actuator motor.
Fuse F2 on the Motor Control PC board protects the Base actuator motor.
The actuator motor runs and lowers the table.
The actuator motor runs until:
•Foot / Hand control button is released.
•Stop button is pressed.
•Base Down limit switch is tripped.
•Active Sensing Technology™ activated.
•Overcurrent protection tripped.
