626 Chair Receptacles Theory of Operation

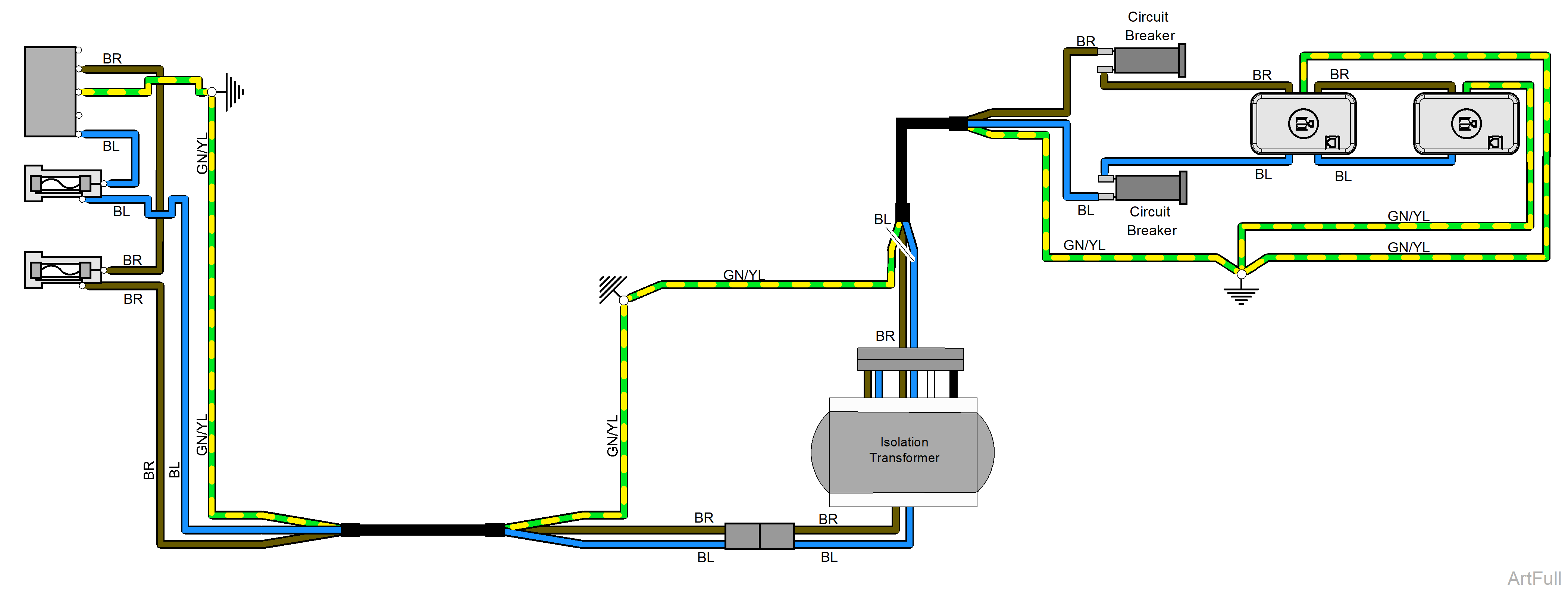

The illustrations below show only the components that affect the chair receptacles. A detailed description of current flow during this function also appears below.

Chair Receptacles

Line voltage (115 VAC) is supplied directly to the receptacles thru two inlet fuses, isolation transformer, and circuit breakers. Voltage bypasses the PC Boards.

Open

Model	626-001 and -002
Serial Number	All

Model	626-003, -004, -005, and -006
Serial Number	All
