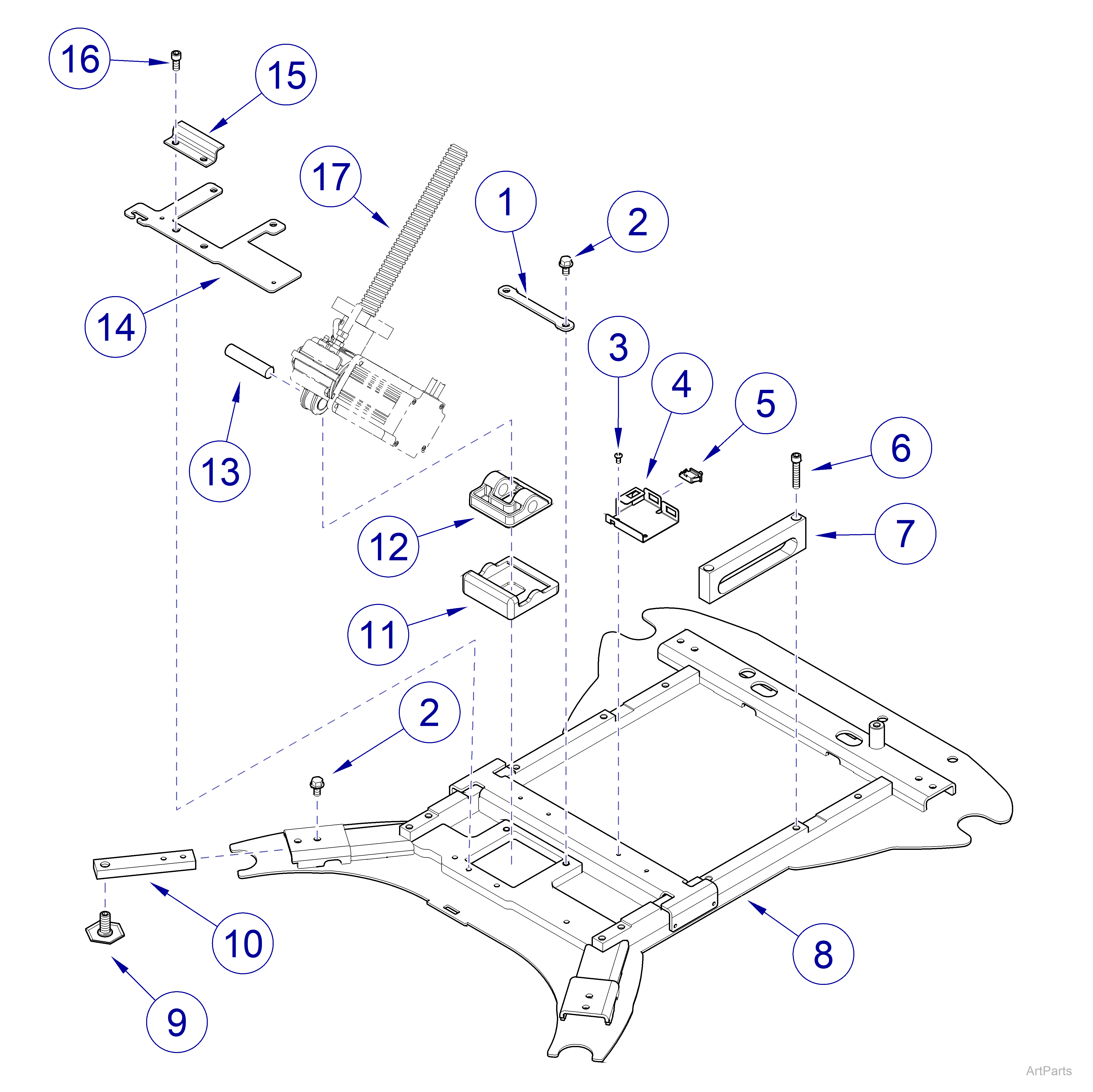

630 Chair Base Plate Components
Serial Number Range: V2200 thru V1460921
|
Model |
630 -010, -011, -020, -021 |
| Serial Number | V2200 thru V1460921 |
| 630 Chair Base Plate Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-8972-00-216 |
Base Cables Bracket |
1 |
|
2 |
040-0010-47 |
Screw 10-24 x 3/8” |
4 |
|
3 |
015-3025-00 |
Limit Switch |
3 |
|
4 |
040-0312-78 |
Screw 5/16”-18 x 1-3/4” |
4 |
|
5 |
051-1308-00 |
Roller Rail |
2 |
|
6 |
Base Weldment - Non Serviceable |
NSS | |
|
7 |
051-1292-00-216 |
Leveling Foot Mount |
4 |
|
8 |
016-1196-00 |
Leveling Foot |
4 |
|
9 |
040-0312-25 |
Bolt 3/8”-18 x 5/8” |
10 |
|
10 |
050-8717-00 |
Base Limit Switch Bracket |
1 |
|
11 |
057-1300-00 |
Base Actuator Pin |
1 |
|
12 |
050-8961-00-216 |
Actuator Pin Clamp |
1 |
|
13 |
Refer to: |
- |
|
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V1460922 thru Present
|
Model |
630 -010, -011, -020, -021 |
| Serial Number | V1460922 thru Present |
| 630 Chair Base Plate Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
050-9370-00 |
Clevis Toe Clamp |
1 |
|
2 |
040-0312-25 |
Bolt 3/8”-18 x 5/8” |
10 |
|
3 |
040-0010-47 |
Screw 10-24 x 3/8” |
4 |
|
4 |
050-8717-00 |
Base Limit Switch Bracket |
1 |
|
5 |
015-3025-00 |
Limit Switch |
3 |
|
6 |
040-0312-78 |
Screw 5/16”-18 x 1-3/4” |
6 |
|
7 |
051-1308-00 |
Roller Rail |
2 |
|
8 |
Base Weldment - Non Serviceable |
NSS |
|
|
9 |
016-1196-00 |
Leveling Foot |
4 |
|
10 |
051-1292-00-216 |
Leveling Foot Mount |
4 |
|
11 |
053-2547-00 |
Isolator |
1 |
|
12 |
020-0421-01 |
Clevis Block |
1 |
|
13 |
057-1429-00 |
Base Actuator Pin |
1 |
|
14 |
050-9384-00-216 |
Adapter Plate |
1 |
|
15 |
051-1341-00 |
Heal Block |
1 |
|
16 |
Refer to: |
- |
|
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
