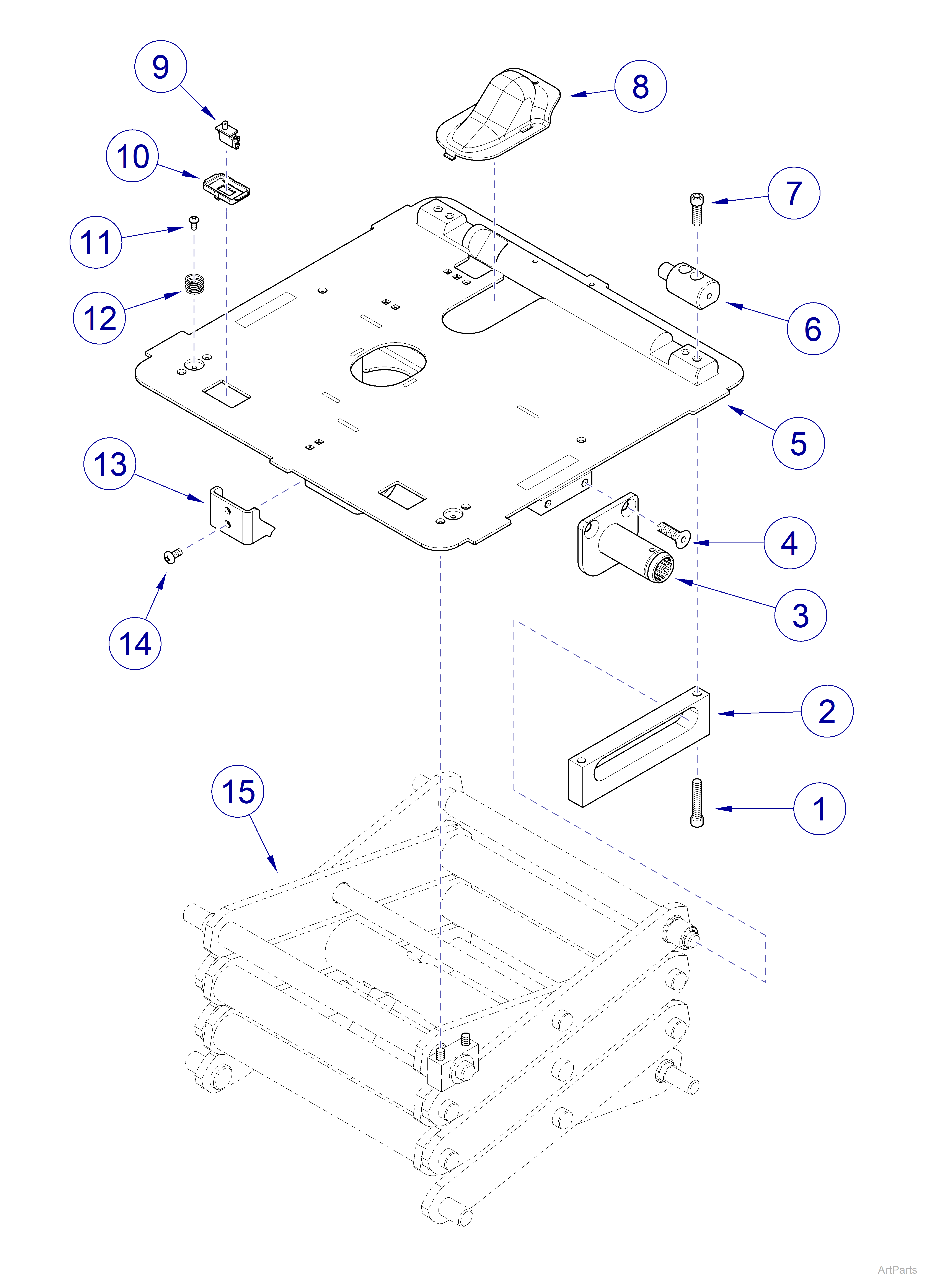

630 Chair Column Top Components
|
Model |
630 -010 thru -013, -020 thru -023 |
| Serial Number | V2200 thru Present |
| 630 Chair Column Top Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0312-78 |
Screw 5/16”-18 x 1-3/4” |
4 |
|
2 |
051-1308-00 |
Roller Rail |
2 |
|
3 |
030-2083-00 |
Spline Weldment |
2 |
|
4 |
040-0375-45 |
Screw 3/8”-16 x 1” |
4 |
|
5 |
Column Top Weldment - Non Serviceable |
NSS |
|
|
6 |
057-1270-00-312 |
Seat Pivot Pin |
2 |
|
7 |
040-0312-41 |
Screw 5/16”-18 x 1” |
4 |
|
8 |
053-2392-00-312 |
Screw Tip Cover |
1 |
|
9 |
015-3025-00 |
Switch |
2 |
|
10 |
053-2361-00-312 |
Limit Switch Bracket |
2 |
|
11 |
040-0010-47 |
Screw 10-24 x 3/8” |
2 |
|
12 |
025-0114-00 |
Foot Bail Spring |
2 |
|
13 |
050-8964-00-216 |
Tilt Pin Clamp |
1 |
|
14 |
040-0250-162 |
Screw 1/4”-20 x 1/2” |
2 |
|
15 |
Refer to: |
- |
|
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
