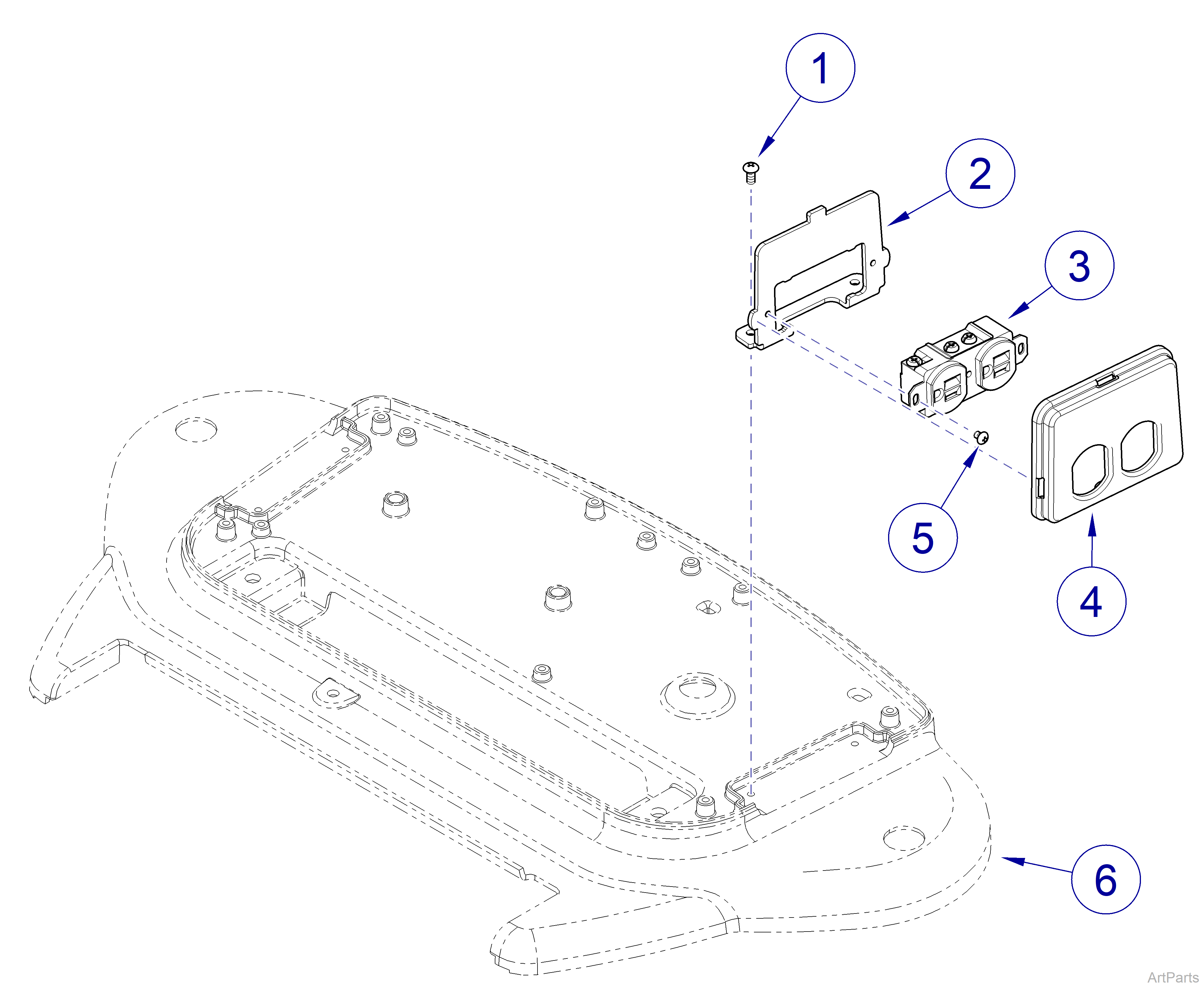

630 Chair Outlet Components

Model	630 -010, -011, -020, -021
Serial Number	V2200 thru Present

630 Chair Outlet Components
Item	Part Number	Description	Qty
1	040-0010-47	Screw 10-24 x 3/8”	4
2	050-8880-00-312	Outlet Plate	2
3	015-0083-02	Receptacle	2
4	053-2431-01-312	Outlet Cover	2
5	040-0008-97	Screw 8-32 x 1/4”	4
6	Refer to:	Base Covers and Electrical Components	-
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number
