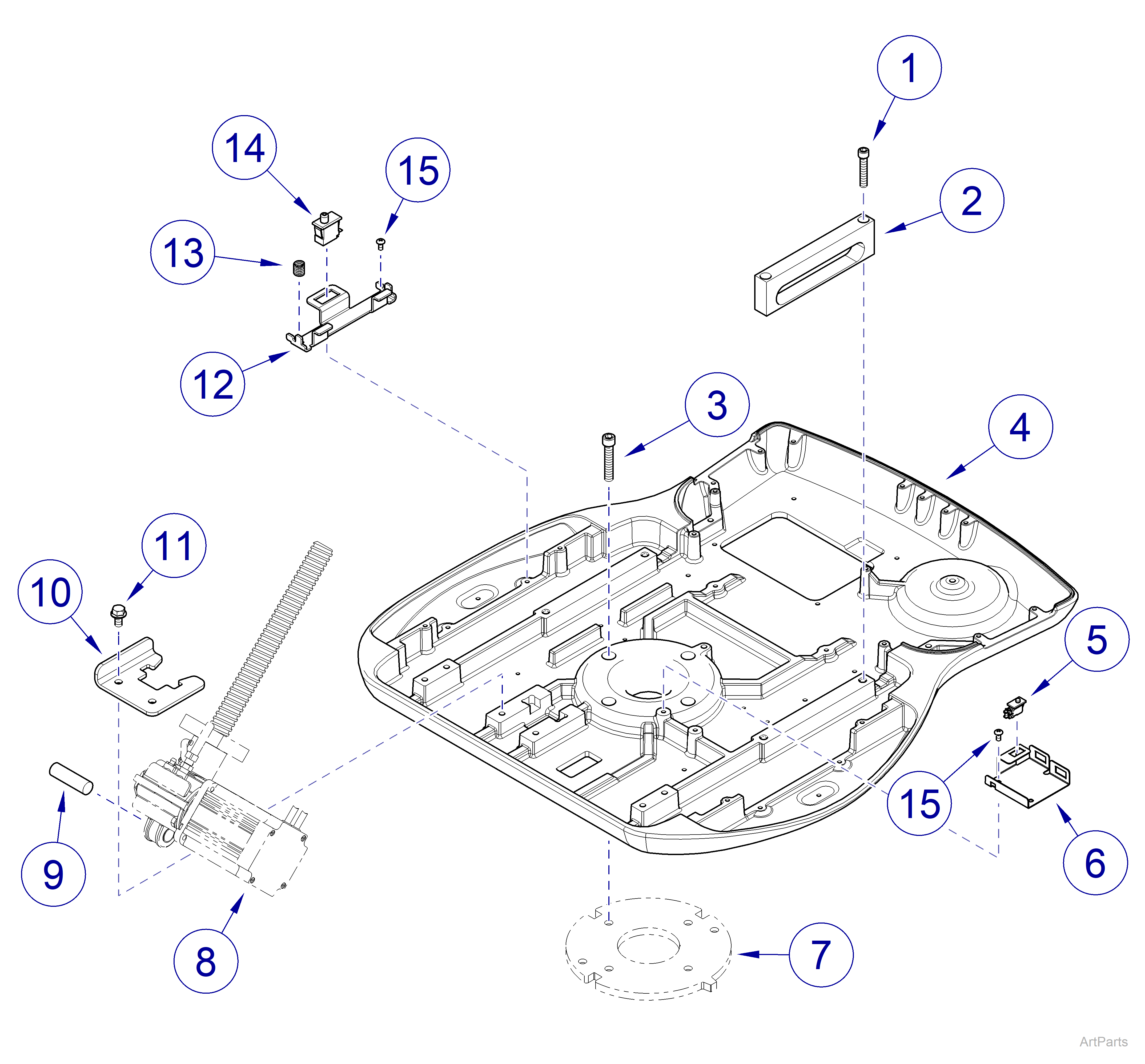

630 Chair Rotational Upper Base Components
Serial Number Range: V2200 thru V1640921
|
Model |
630 -012, -013, -022, -023 |
| Serial Number | V2200 thru V1640921 |
| 630 Chair Rotational Upper Base Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0312-78 |
Screw 5/16”-18 x 1-3/4” |
4 |
|
2 |
051-1308-00 |
Roller Rail |
2 |
|
3 |
040-0375-52 |
Screw 3/8”-16 x 2” |
4 |
|
4 |
Upper Base Casting |
NSS |
|
|
5 |
015-3025-00 |
Switch |
3 |
|
6 |
050-8717-00 |
Base Limit Switch Bracket |
1 |
|
7 |
Refer to: |
- |
|
|
8 |
Refer to: |
- |
|
|
9 |
057-1300-00 |
Base Actuator Pin |
1 |
|
10 |
050-8961-00-216 |
Actuator Pin Clamp |
1 |
|
11 |
040-0312-25 |
Bolt 5/16”-18 x 5/8” |
2 |
|
12 |
050-6425-00-000 |
Switch Hinge Bracket |
2 |
|
13 |
025-0042-13 |
Compression Spring |
4 |
|
14 |
015-1055-00 |
Switch |
2 |
|
15 |
040-0010-47 |
Screw 10-24 x 3/8” |
7 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V1640922 thru Present
|
Model |
630 -012, -013, -022, -023 |
| Serial Number | V1640922 thru Present |

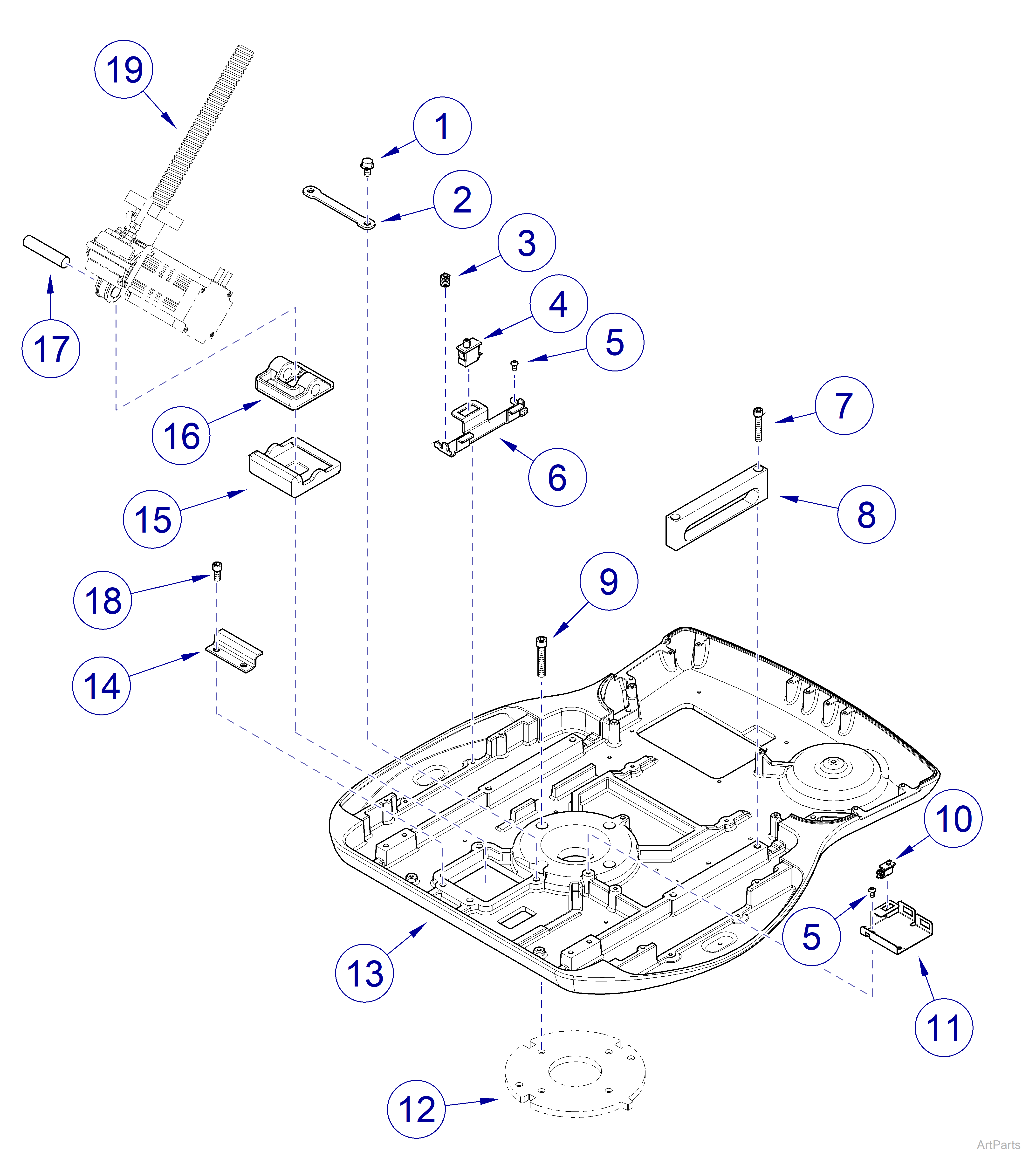

![[%=ProductNames/Product.630HumanForm% ]Rotational Upper Base Components](../../Resources/Images/MAF/MAF9758.png)
| 630 Chair Rotational Upper Base Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
040-0312-25 |
Bolt 5/16”-18 x 5/8” |
2 |
|
2 |
050-9370-00 |
Clevis Toe Clamp |
1 |
|
3 |
025-0042-13 |
Compression Spring |
2 |
|
4 |
015-1055-00 |
Switch |
2 |
|
5 |
040-0010-47 |
Screw 10-24 x 3/8” |
7 |
|
6 |
050-6425-00-000 |
Switch Hinge Bracket |
2 |
|
7 |
040-0312-78 |
Screw 5/16”-18 x 1-3/4” |
6 |
|
8 |
051-1308-00 |
Roller Rail |
2 |
|
9 |
040-0375-52 |
Screw 3/8”-16 x 2” |
4 |
|
10 |
015-3025-00 |
Switch |
3 |
|
11 |
050-8717-00 |
Base Limit Switch Bracket |
1 |
|
12 |
Refer to: |
- |
|
|
13 |
020-0399-00-312 |
Upper Base Casting |
1 |
|
14 |
051-1341-00 |
Heal Block |
1 |
|
15 |
053-2547-00 |
Isolator |
1 |
|
16 |
020-0421-01 |
Clevis Block |
1 |
|
17 |
057-1429-00 |
Base Actuator Pin |
1 |
|
18 |
Refer to: |
- |
|
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
