WARNING

Always disconnect chair from power source before removing any covers. Failure to do so may result in personal injury.

630 Chair Foot Smart Sensor Switches

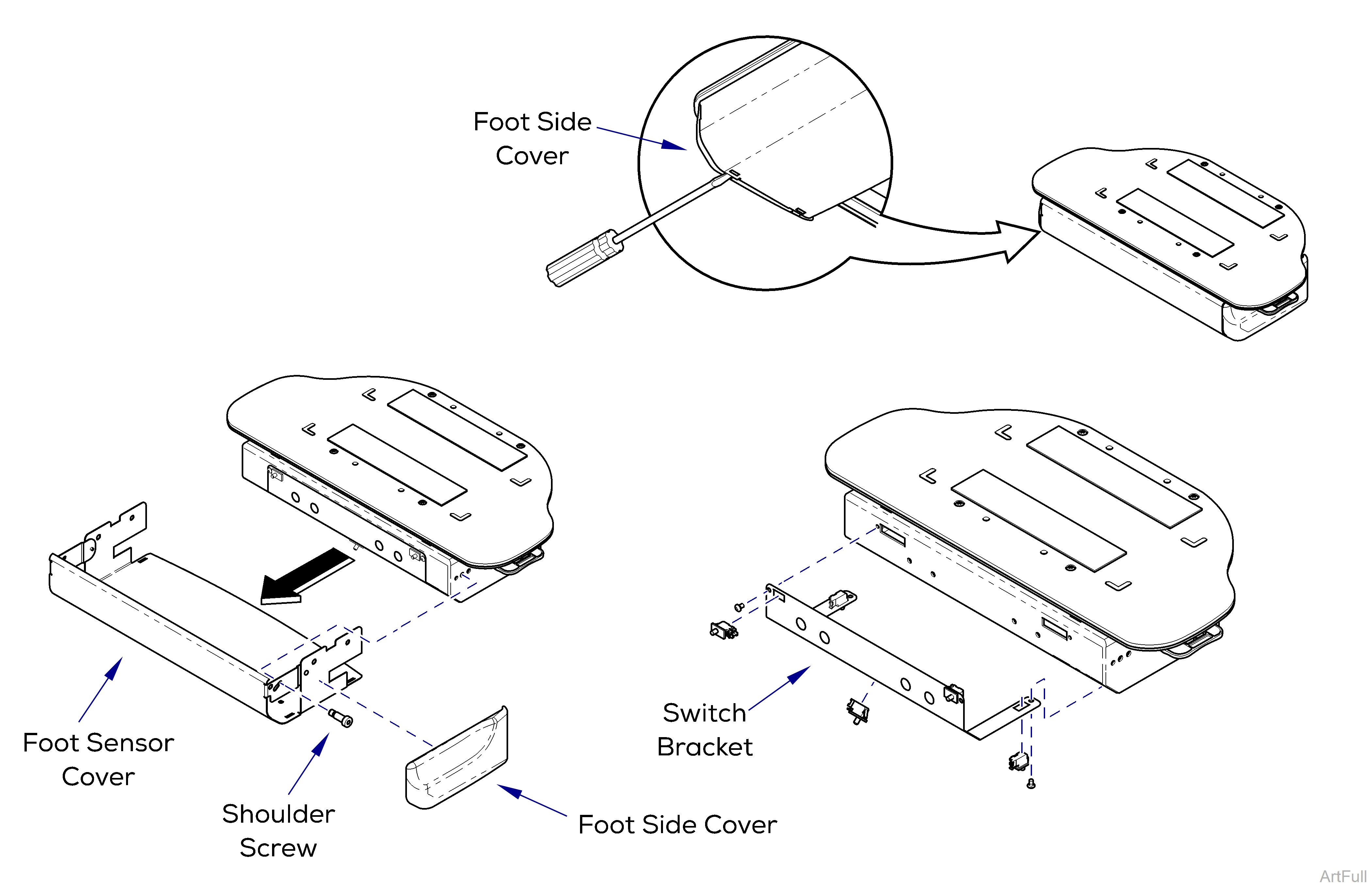

1.Insert flat blade screwdriver into slots on bottom of foot side covers to disengage and remove.

2. Remove two shoulder screws and pull foot sensor cover forward.

3.Remove four screws to loosen switch bracket.

4. Depress tab on switch to remove switch from switch bracket.
