630 Chair Premium UltraFree Upholstery

Model

 630 -010 thru -013, -020 thru -023
Serial Number V2200 thru Present

630 Human Form Procedures Chair Premium UltraFree Upholstery

Refer to: Upholstery Color Options for the order number extension of your desired color.

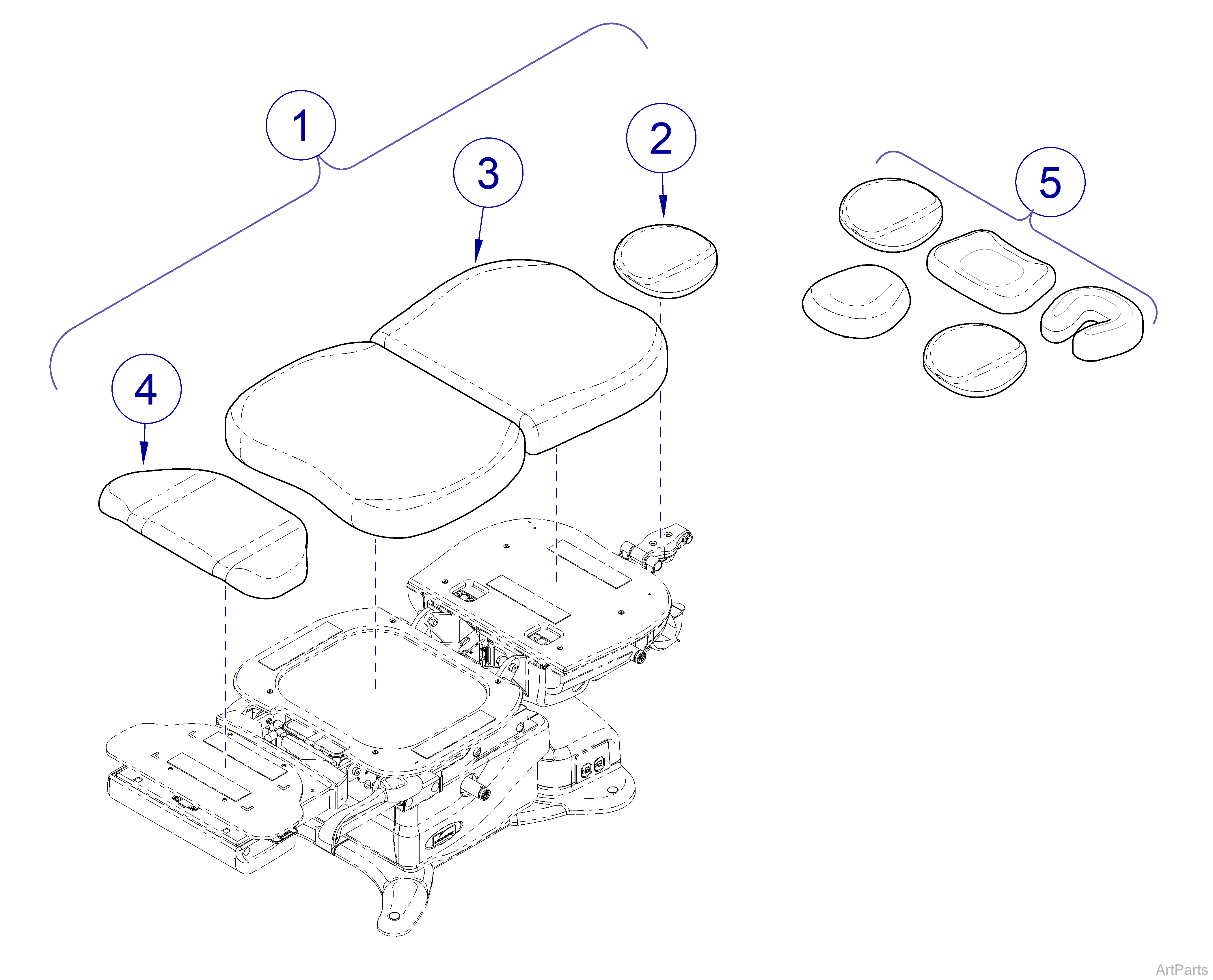

630 Chair Premium UltraFree Upholstery
Item Part Number Description Qty

1

 UltraPremium Upholstery Kit Options - Includes items 2 thru 4
  002-10114-xxx 28” Standard - Shown 1


002-10115-xxx

 28” Cal. 133

NLA

  002-10116-xxx 32” Standard 1


002-10117-xxx

 32” Cal. 133

NLA

2

 Refer to:

Standard Headrest Assembly Optional Headrests

 -

3

 Back / Seat Section Upholstery Options
  028-10043-xxx 28” Standard - Shown 1


028-10044-xxx

 28” Cal. 133

NLA

  028-10045-xxx 32” Standard 1


028-10046-xxx

 32” Cal. 133

NLA

4

 Foot Section Upholstery Options
  028-0813-xxx Standard - Shown 1


028-0814-xxx

 Cal. 133

NLA

5

 Refer to: Optional Headrests -

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
