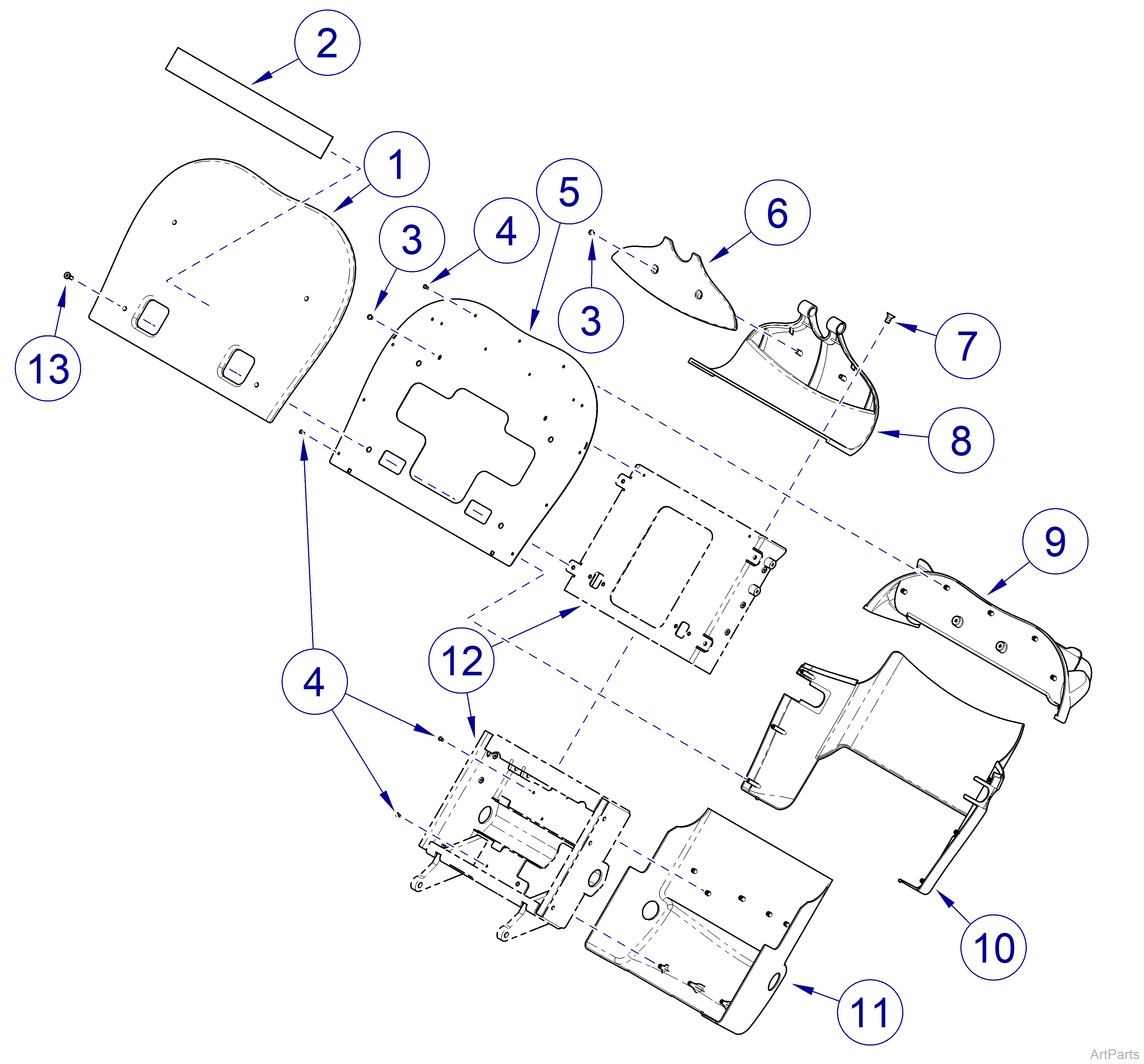

630 Chair Back Section Covers and Panels
|
Model |
630 -010 thru -013, -020 thru -023 |
| Serial Number | V2200 thru Present |
| 630 Chair Back Section - Covers and Panels | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-5828-00 | Back Substrate Assembly - 28” - Includes item 2 | 1 |
|
2 |
053-0131-14 | Hook Fastener Tape | 2 |
|
3 |
040-0010-47 | Screw 10-24 x 3/8” | 4 |
|
4 |
042-0184-01 | Screw M4 x 1.79 x 12M | 16 |
|
5 |
050-8857-00-312 | Sliding Back Mounting Plate | 1 |
|
6 |
053-2453-00-312 | Headrest Casting Cover | 1 |
|
7 |
Screw 5/16” x 18 - 5/8” Flat Head | NSS | |
|
8 |
020-0398-01-312 | Headrest Pivot Casting | 1 |
|
9 |
029-6127-00-312 | Paper Roll Holder Assembly | 1 |
|
10 |
053-2471-00-312 | Sliding Back Cover | 1 |
|
11 |
053-2470-00-312 | Fixed Back Cover | 1 |
|
12 |
Refer to: | Back Section - Main Components | - |
|
13 |
Bolt | 4 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
