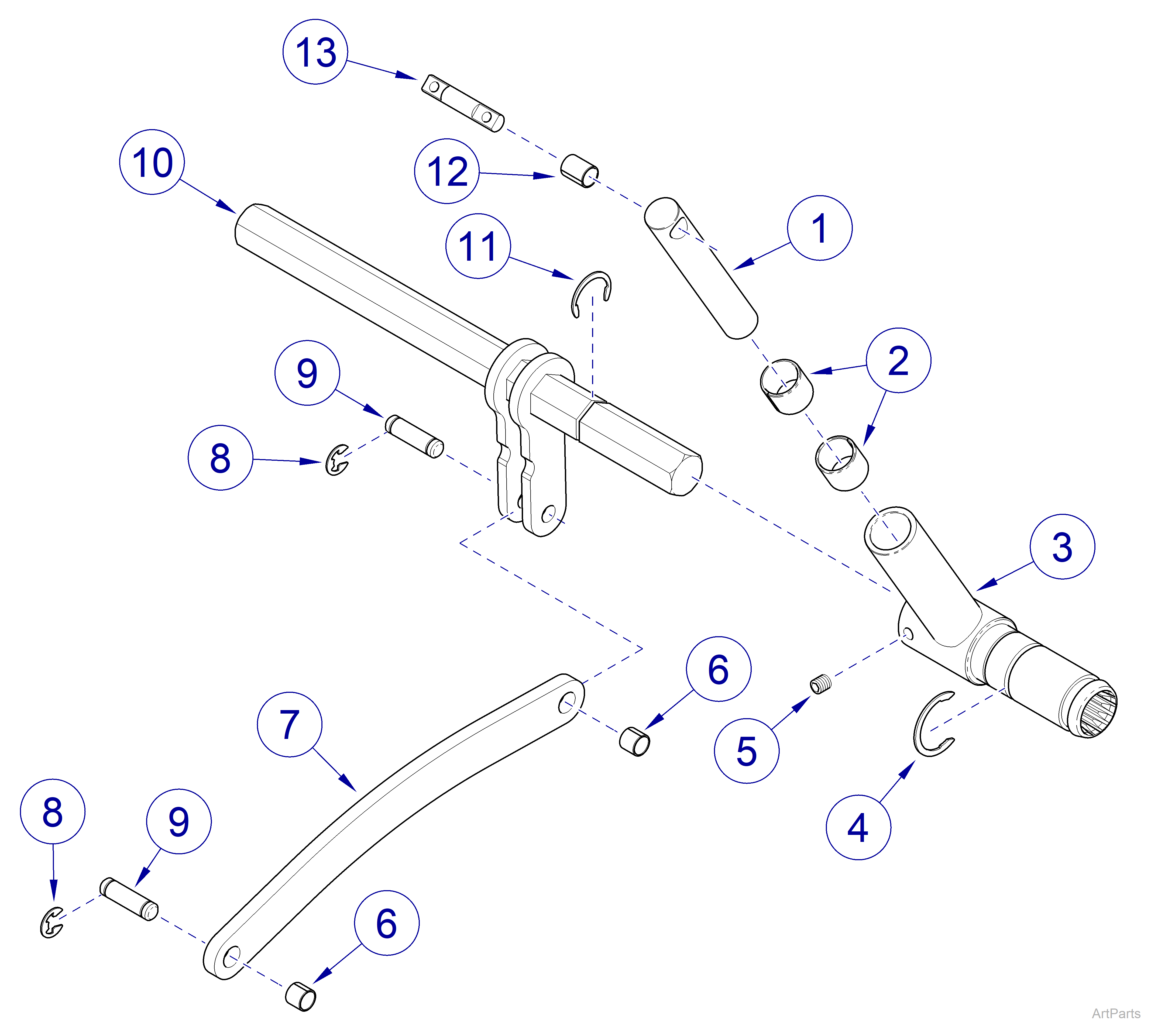

630 Chair Back Section Linkage Components
|
Model |
630 -010 thru -013, -020 thru -023 |
| Serial Number | V2200 thru Present |
| 630 Chair Back Section Linkage Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
057-1246-00 | Sliding Back Piston | 2 |
|
2 |
016-1569-02 | Sleeve Bearing | 4 |
|
3 |
Cylinder Weldment Options - Non Serviceable | ||
| Right Hand | NSS | ||
| Left Hand - Shown | NSS | ||
|
4 |
016-0131-31 | Crescent Ring | 2 |
|
5 |
040-0312-28 | Set Screw 5/16”-18 x 5/16” | 4 |
|
6 |
016-1569-05 | Sleeve Bearing | 2 |
|
7 |
050-8516-00-312 | Sliding Back Linkage | 1 |
|
8 |
042-0007-00 | E-Ring 3/8” | 4 |
|
9 |
042-0006-07 | Clevis Pin | 2 |
|
10 |
Drag Link Weldment - Non Serviceable | NSS | |
|
11 |
042-0676-00 | E-Ring 7/8” | 2 |
|
12 |
016-1569-03 | Sleeve Bearing | 2 |
|
13 |
057-1247-00 | Link Pin | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
