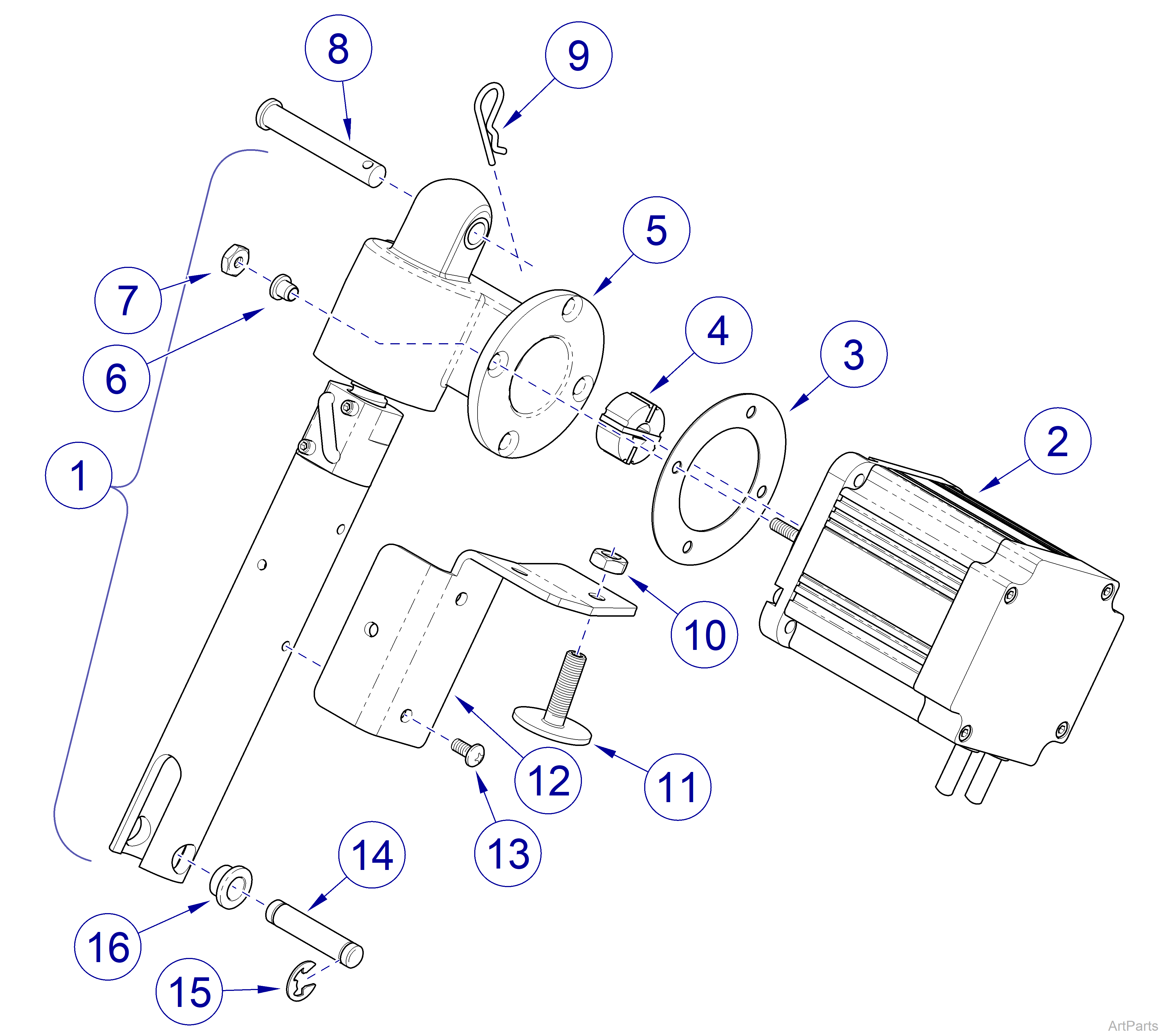

630 Chair Back Actuator
|
Model |
630 -010 thru -013, -020 thru -023 |
| Serial Number | V2200 thru Present |
| 630 Chair Back Actuator | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1729-01 | Back Actuator Kit w/ Motor - Includes items 2 thru 8 | 1 |
|
2 |
015-3029-00 | Back Brushless DC Motor | 1 |
|
3 |
053-1337-00 | Motor Isolator | 1 |
|
4 |
016-0662-00 | Motor Coupler | 1 |
|
5 |
002-1729-00 | Back Actuator Kit w/o Motor | 1 |
|
6 |
053-0198-01 |
Shoulder Washer | NLA |
|
7 |
041-0010-10 | Lock Nut #10-32 | 2 |
|
8 |
042-0005-04 | Clevis Pin | 1 |
|
9 |
042-0004-01 | Cotter Pin | 1 |
|
10 |
Nut 5/16” - 18 | NSS | |
|
11 |
016-1584-00 | Leveler | 2 |
|
12 |
050-8744-00 | Limit Switch Bracket | 1 |
|
13 |
040-0010-36 | Screw 10-32 x 5/16” | 2 |
|
14 |
042-0639-00 | Clevis Pin | 1 |
|
15 |
042-0007-00 | E-Ring | 2 |
|
16 |
016-0131-21 | Flanged Bearing | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
