630 Chair Fuses
|
Model |
630 -010 thru -013, -020 thru -023 |
| Serial Number | V2200 thru Present |

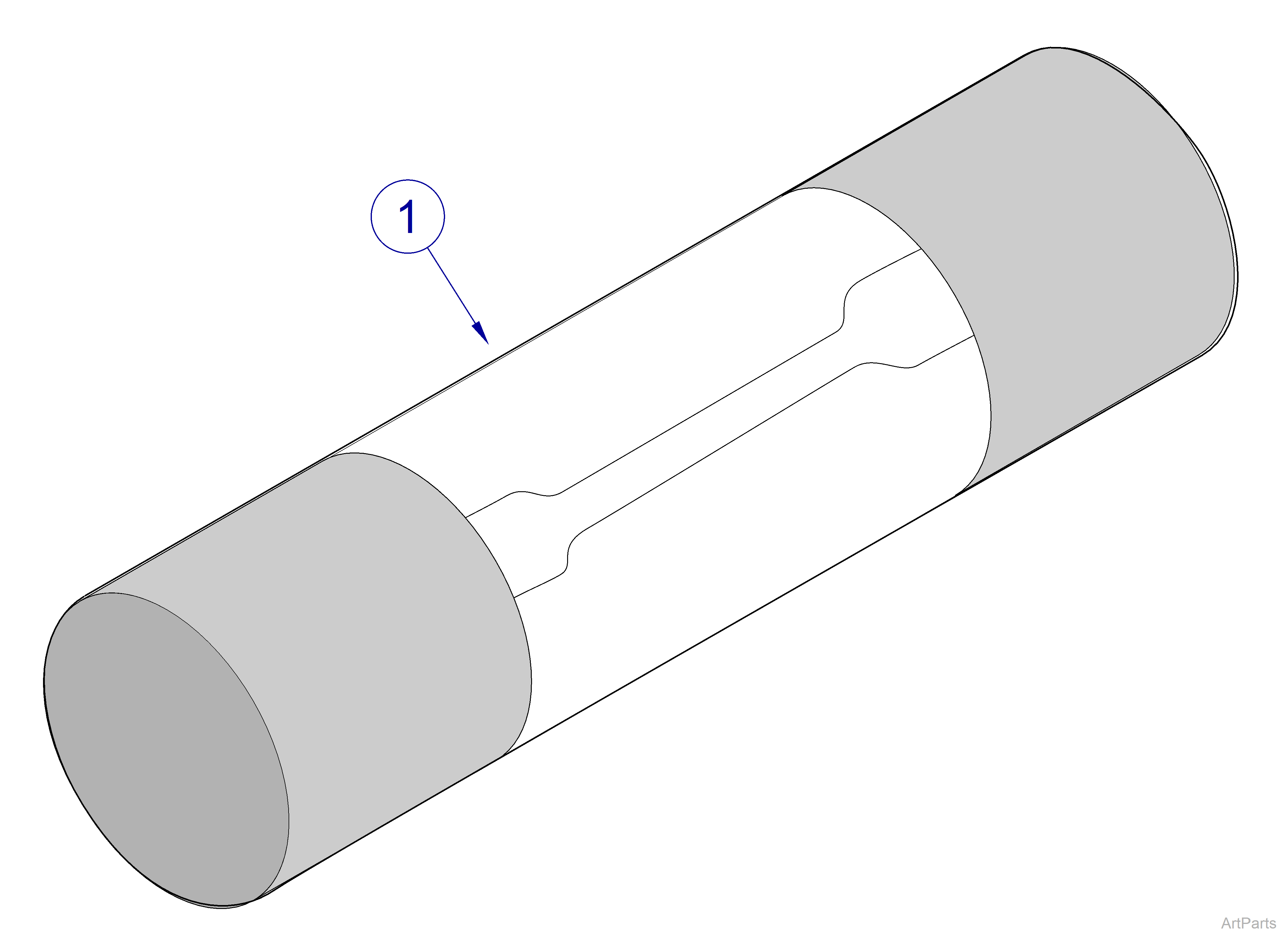

| 630 Chair Fuses | |||
|---|---|---|---|
| Location | Function(s) Affected | Rating | Part Number |
|
Power Supply PC Board F1 and F2 |
All | 6.3A, 250V, Slo-Blo, 5 x 20 mm | |
|
Power Supply PC Board F3 and F4 |
Tilt, Back and Foot Functions | 10A, 250V, Slo-Blo, 5.2 x 20 mm | 015-0346-58 |
|
Power Supply PC Board F5 |
Base Function | 10A, 250V, Slo-Blo, 5.2 x 20 mm | 015-0346-58 |
|
Motor Control Hub PC Board F1 |
Foot Function | 5A, 250V, Slo-Blo, 5 x 20 mm | 015-0346-22 |
|
Motor Control Hub PC Board F2 |
Tilt Function | 5A, 250V, Slo-Blo, 5 x 20 mm | 015-0346-22 |
|
Motor Control Hub PC Board F3 |
Back Function | 5A, 250V, Slo-Blo, 5 x 20 mm | 015-0346-22 |
