630 Chair Diagnostic LED’s Test and Repair

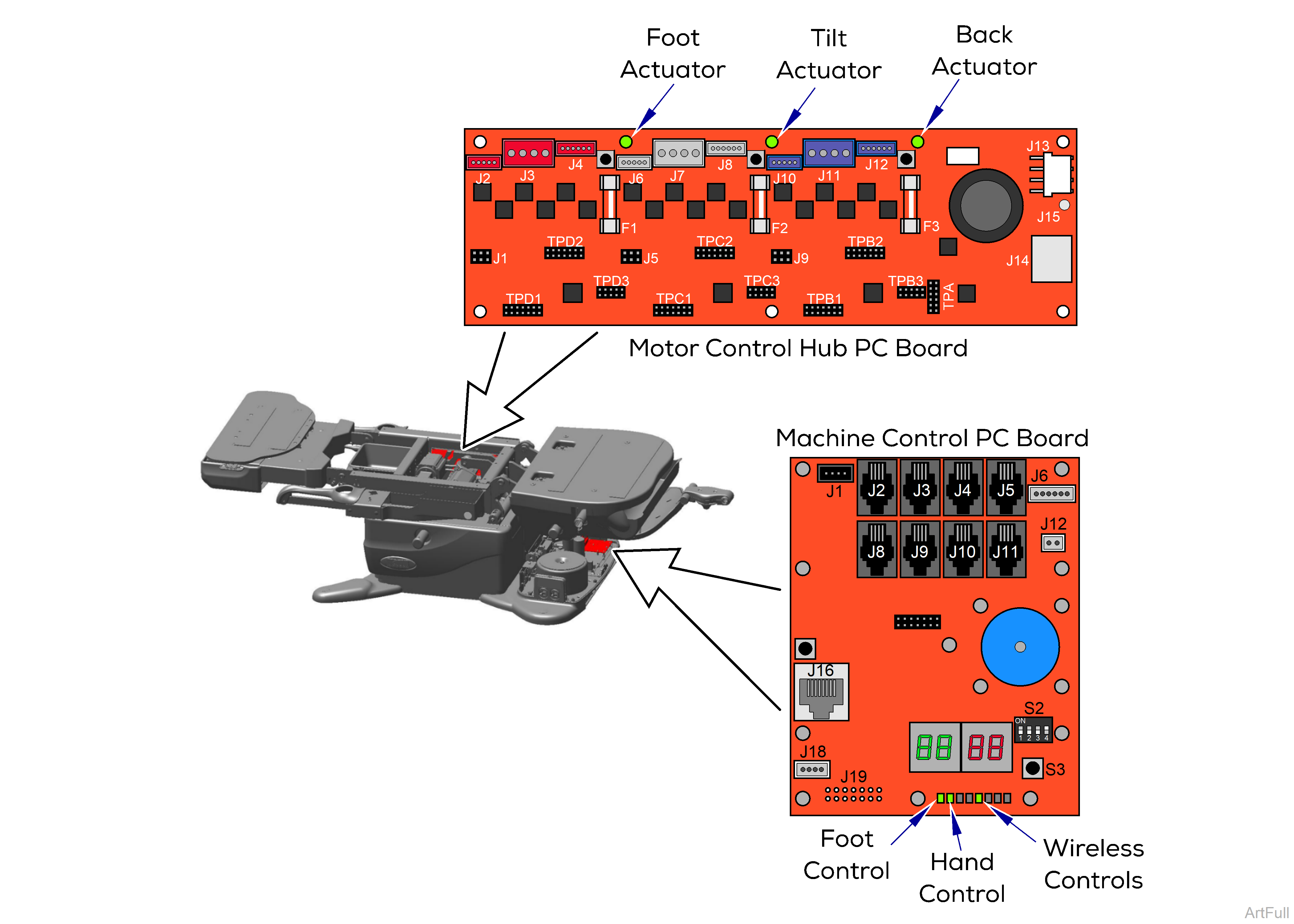

This illustration shows only the LED’s used for diagnostic trouble shooting.
The Machine Control PC Board is mounted on the Power Supply PC Board.
| Activity |
Definition |
|---|---|
| On Continuously | Everything OK, No activity |
| Slow Flashing | Communicating |
| Fast Flashing | Malfunction |
| OFF | No power |
