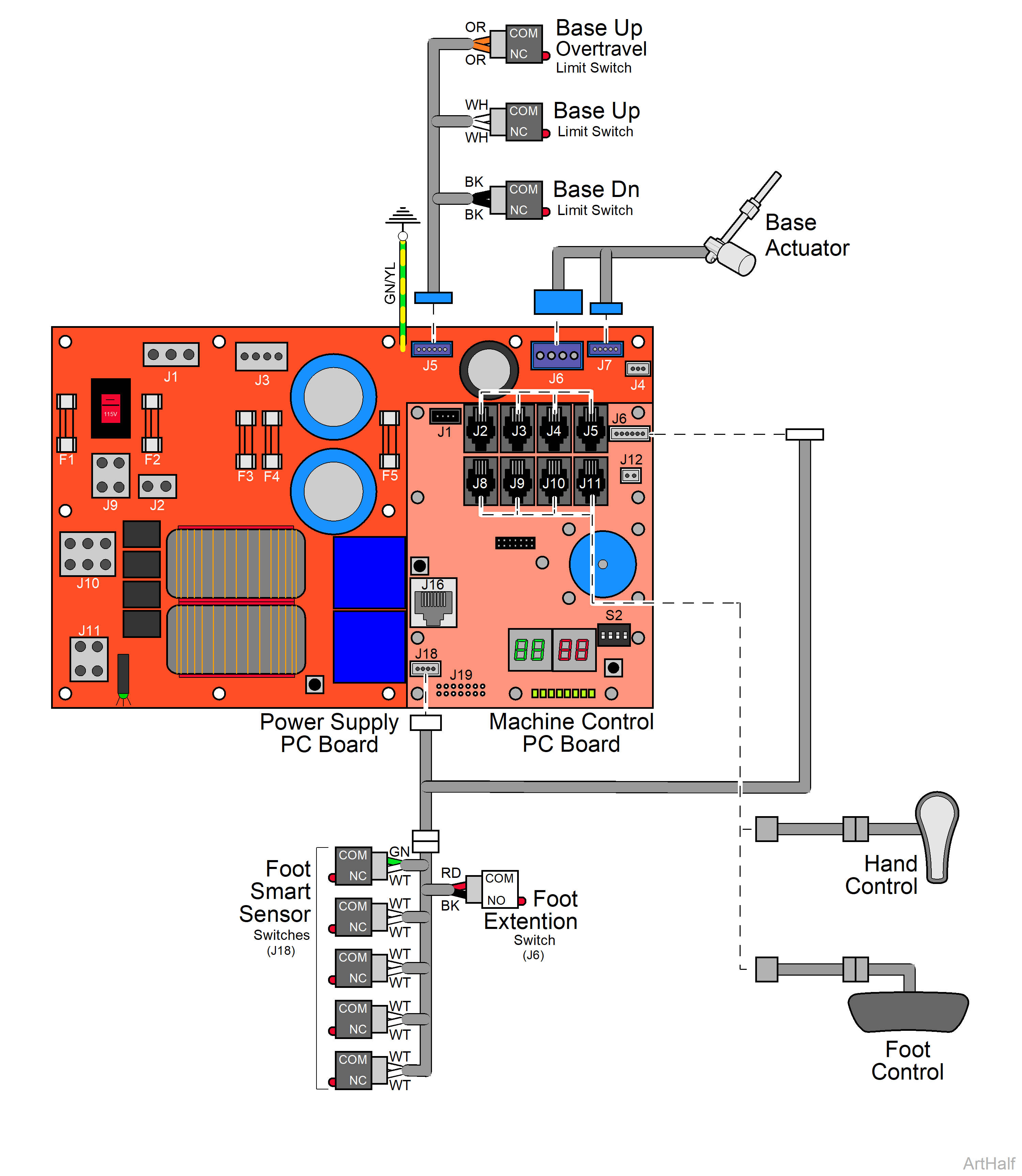

This illustration shows only the fuses and connections that affect the Base Up/Down function.

Equipment Alert

Anytime the limit switch wires or the actuator wires are disconnected, the PC Board must be calibrated.

630 Chair Base Function / Fuses and Connections
