631 Chair Base Actuator
|
Model |
631-001 |
| Serial Number | V2200 thru Present |

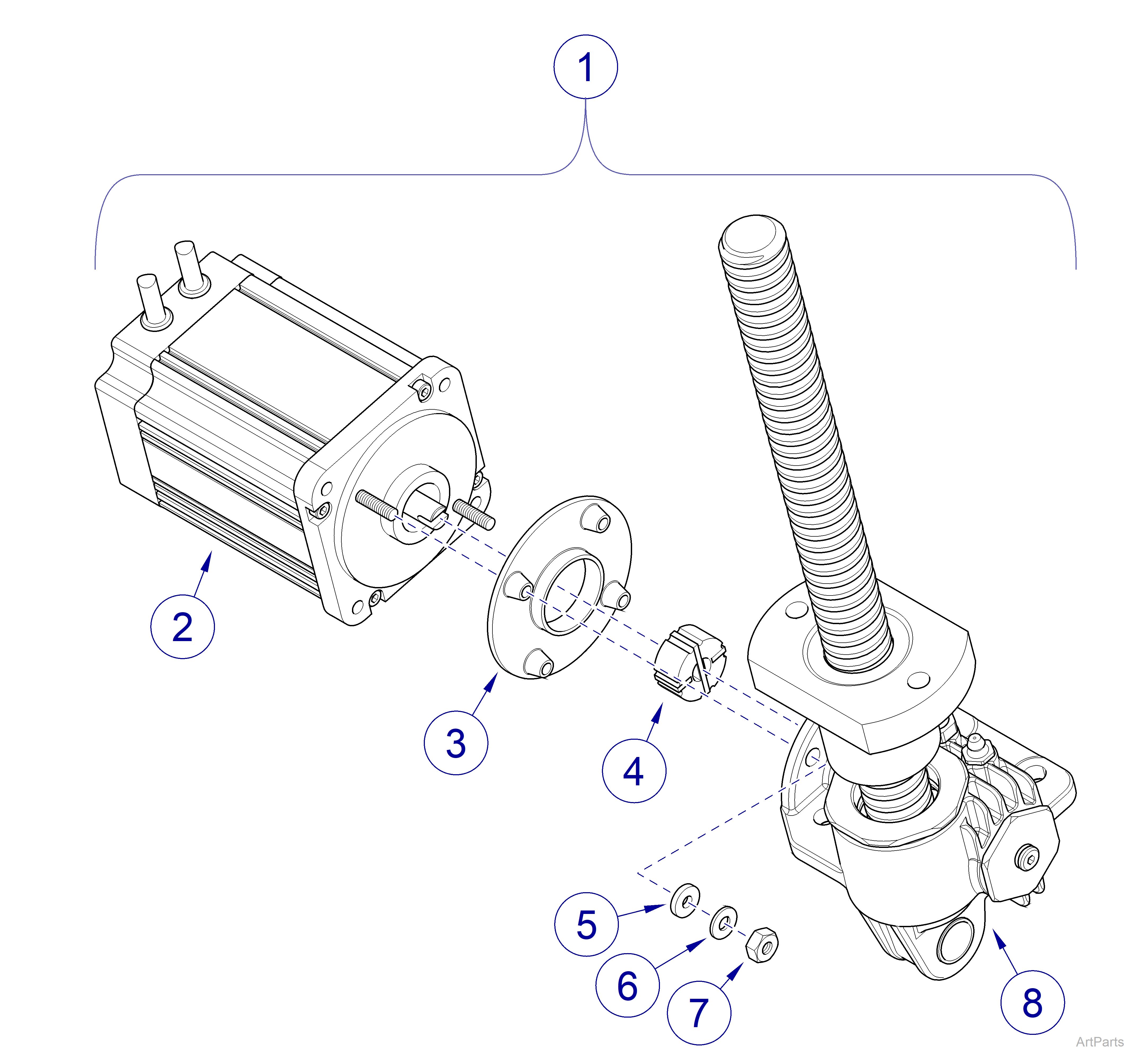

![[%=ProductNames/Product.631% ]Base Actuator](../../Resources/Images/MAF/MAF12449revA.png)
| 631 Chair Base Actuator | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-11244-01 |
Base Actuator w/ Motor - includes items 2 thru 8 |
1 |
|
2 |
015-2949-00 |
Base Motor |
1 |
|
3 |
053-2127-00 |
Motor Isolator |
1 |
|
4 |
016-0662-00 |
Motor Coupler |
1 |
|
5 |
053-2097-00 |
Isolator Washer |
2 |
|
6 |
045-0001-00 |
Washer #10 |
2 |
|
7 |
041-0010-10 |
Lock Nut 10-32 |
2 |
|
8 |
002-11244-00 |
Base Actuator w/o Motor |
1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
