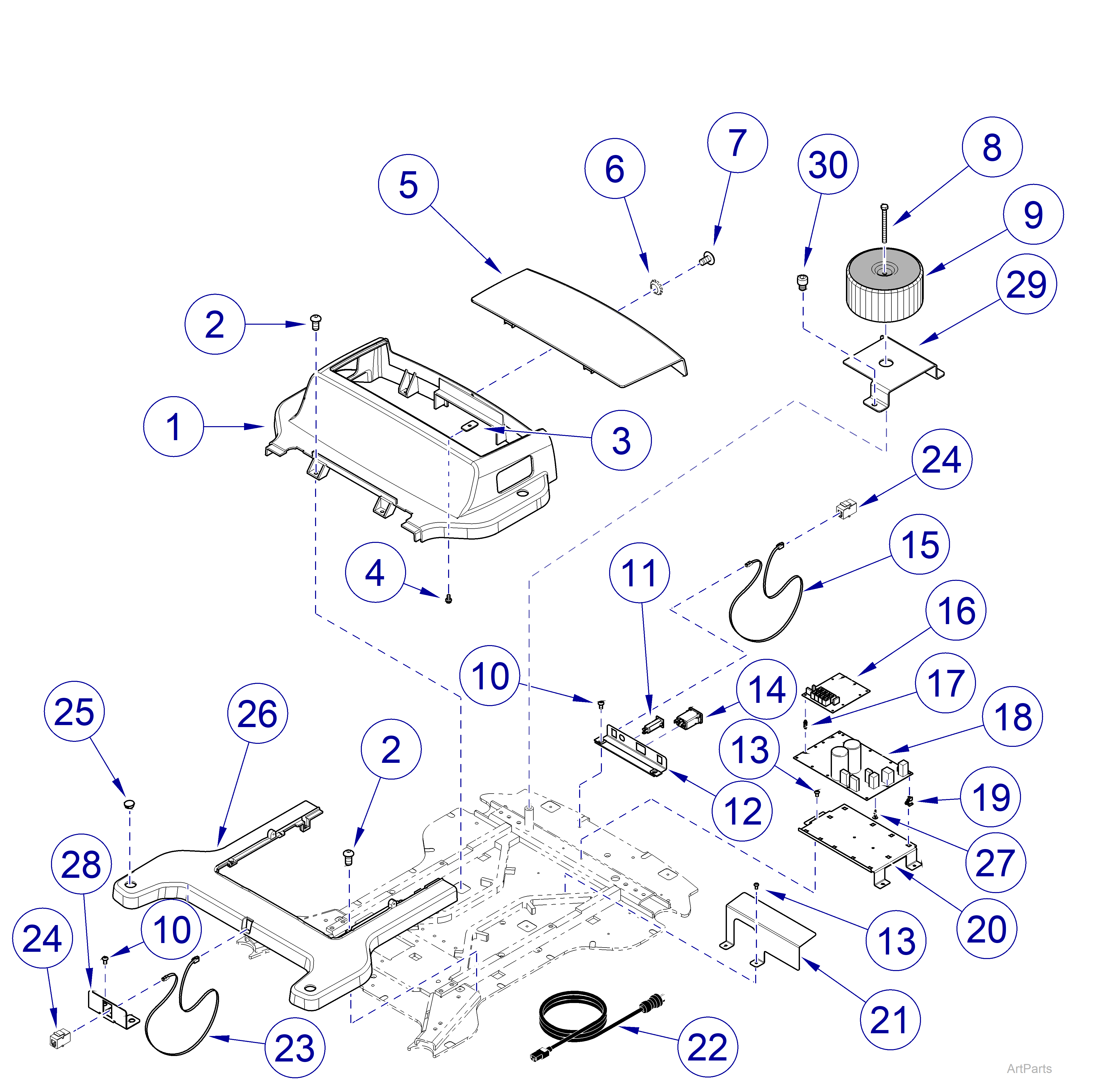

631 Chair Base Covers and Electrical Components
|
Model |
631-001 |
| Serial Number | V2200 thru Present |
| 631 Chair Base Covers and Electrical Components | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 1 | 020-10154-00-814 | Base Casting, Back | 1 |
| 2 | 040-0250-219 | Screw 1/4-20 x 1/2 in. | 8 |
| 3 | 050-12932-00 | Rear Cover Tab | 2 |
| 4 | 040-0250-65 | Screw 1/4-20 X 1/2 in. | 2 |
| 5 | 020-10155-00-814 | Base Casting, Back Lid | 1 |
| 6 | 045-0001-182 | 1/4 in. Ext Tooth CSUNK Lock | 1 |
| 7 | 040-0250-174 | Screw 1/4-20 x 3/4 in. | 1 |
| 8 | 040-0312-107 | Screw 5/16-18 x 3 1/2 in. | 1 |
| 9 | 002-11245-00 | Toroid Transformer Kit - includes item 8 | 1 |
| 10 | 040-0250-216 | Screw 1/4-20 x 1/4 in. | 4 |
| 11 | 015-3267-00 | Circuit Breaker, 3A | 1 |
| 12 | 050-13409-00 | Rear Plug In Bracket | 1 |
| 13 | 040-0010-161 | Screw #10-24 x 1/4 in. | 5 |
| 14 | 015-3034-00 | Power Entry Module | 1 |
| 15 | 015-12342-00 | Hand Control Harness | 2 |
| 16 | 002-1748-08 | Machine Control Non Programable PC Board Kit - includes item 17 | 1 |
|
17 |
053-2507-00 | PCB Standoff, Dual Lock | 8 |
| 18 | 002-1747-00 | Power Supply PC Board Kit - includes items 19 and 27 | 1 |
| 19 | 053-1664-00-000 | Standoff | 11 |
|
20 |
050-13269-00-813 | Bracket, Power PC Board | 1 |
| 21 | 050-13580-00-813 | Bracket, Fluid Ingress | 1 |
| 22 | 015-1338-00 | Cordset, 8 ft | 1 |
| 23 | 015-12342-01 | Foot Control Harness | 1 |
| 24 | 015-12333-00 | RJ9 to RJ9 Connector | 3 |
| 25 | 053-0050-29 | Hole Plug | 4 |
| 26 | 020-10152-00-814 | Base Cover, Front | 1 |
| 27 | 053-1858-01 | PCB Standoff | 2 |
| 28 | 050-13407-00 | Bracket, Front Plug - In | 1 |
| 29 | 050-13410-00 | Bracket, Toroid | 1 |
| 30 | 040-0312-46 | Screw, 5/16-18 x 3/8 in. | 3 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
