631 Chair Base Cover Access Procedures
WARNING
Always disconnect chair from power source before removing any covers. Failure to do so may result in personal injury.

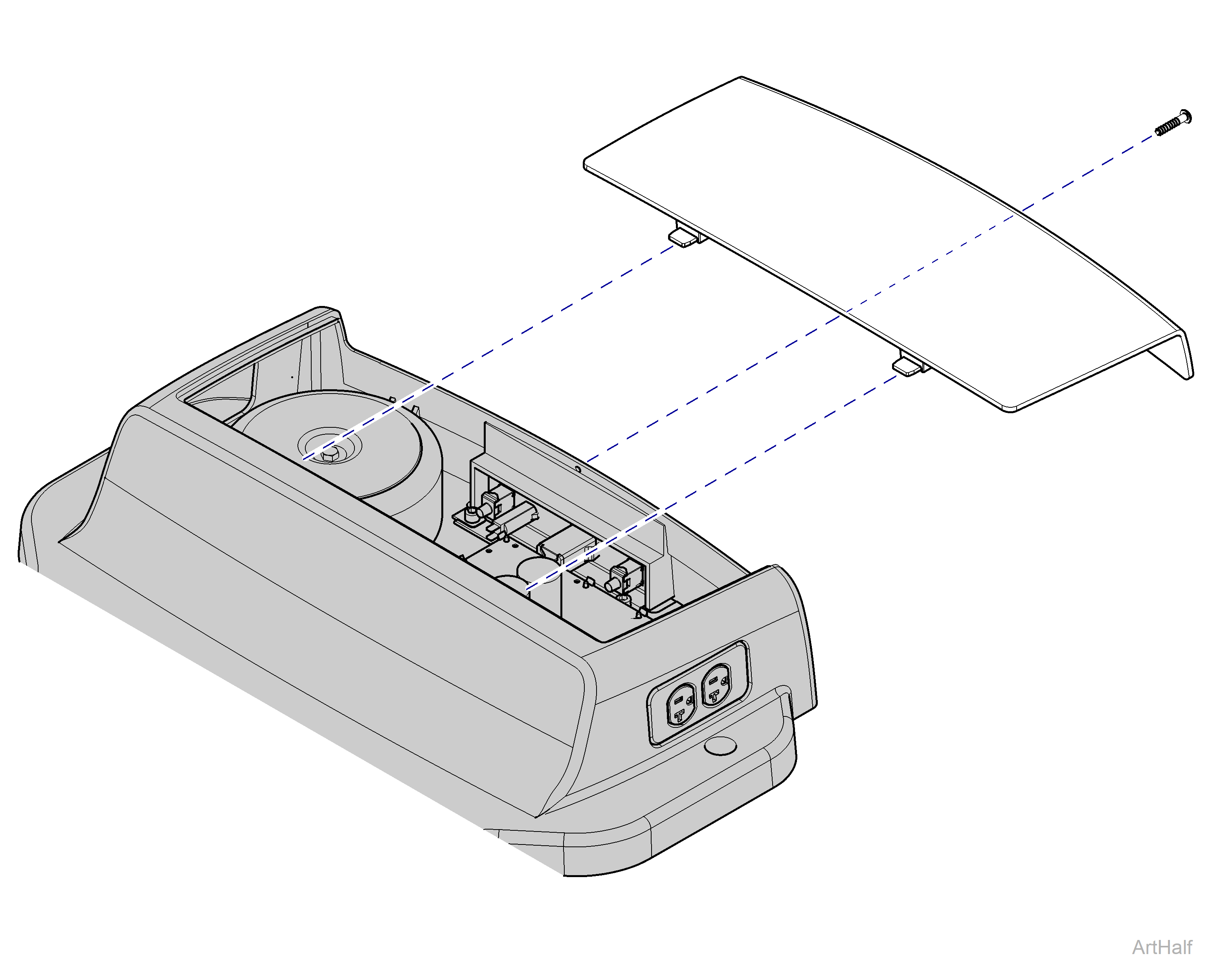

Removal
1. Remove one screw and lock washer.
2. Slide cover back and lift off of base.
Installation
1.Align tabs and position cover on base.
2.Secure with one screw and lock washer.
