631 Chair Base Shrouds / Cladding Access Procedures

WARNING

Always disconnect chair from power source before removing any covers. Failure to do so may result in personal injury.

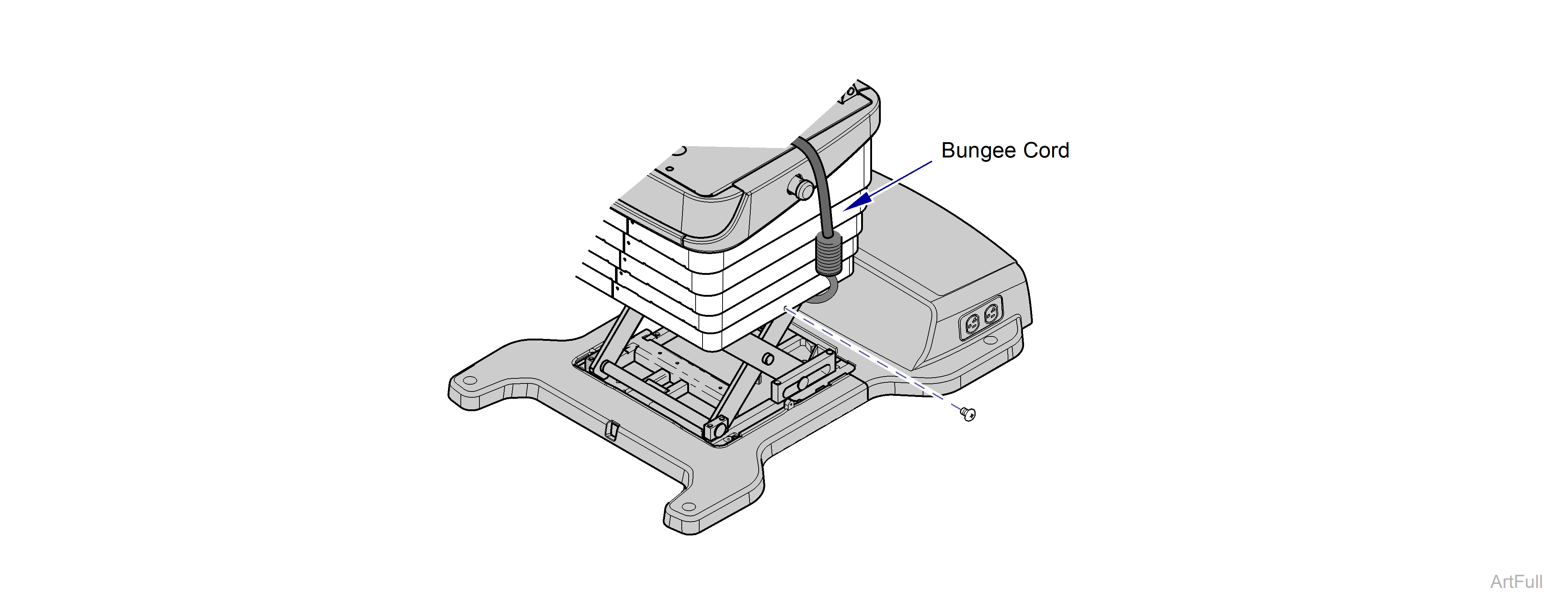

630 Chair Raising Base Shrouds / Cladding w/ bungee cord

1.Remove two screws from inner shrouds.

2.Stretch bungee cord across top of base column under seat.

It may be necessary to run Tilt Up function to route bungee cord under seat section.

These illustrations show top components removed for clarity only.

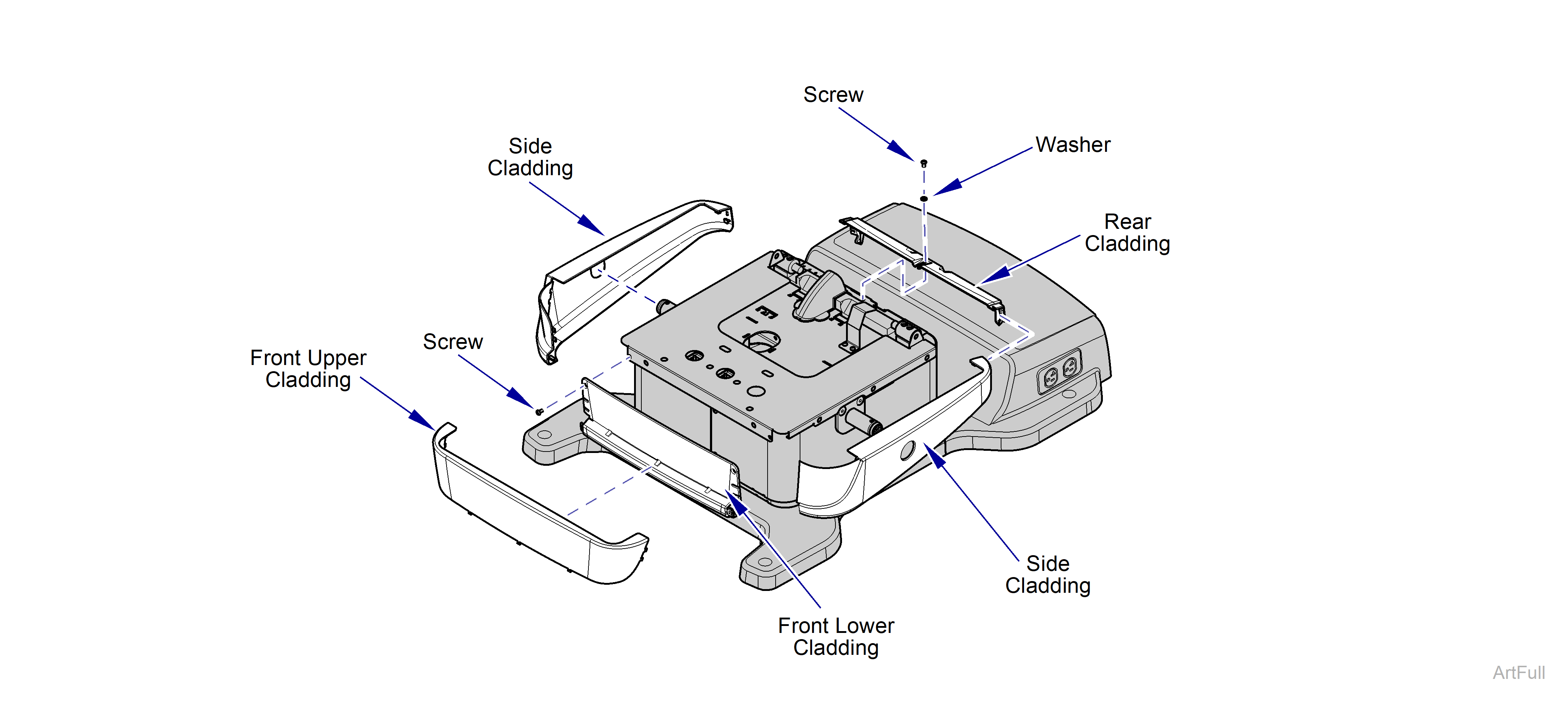

630 Chair Cladding Removal / Installation

1.Pull outward on the top of front upper cladding and unsnap.

2. Unsnap side cladding from front lower cladding and rear cladding to remove.

3.Remove two screws from front lower cladding.

4.Remove one screw and washer from rear cladding.

1.Position rear cladding and secure with washer and screw.

2.Position front lower cladding and secure with two screws.

3.Position side cladding and snap into place.

4.Engage bottom tabs of front upper cladding and snap onto front lower cladding.

Equipment Alert

Lower the base before removing the shrouds. This illustration shows the base raised and top components removed for clarity only.

For ease of shroud removal, it is recommended to remove the bail. This illustration shows top components removed for clarity only.

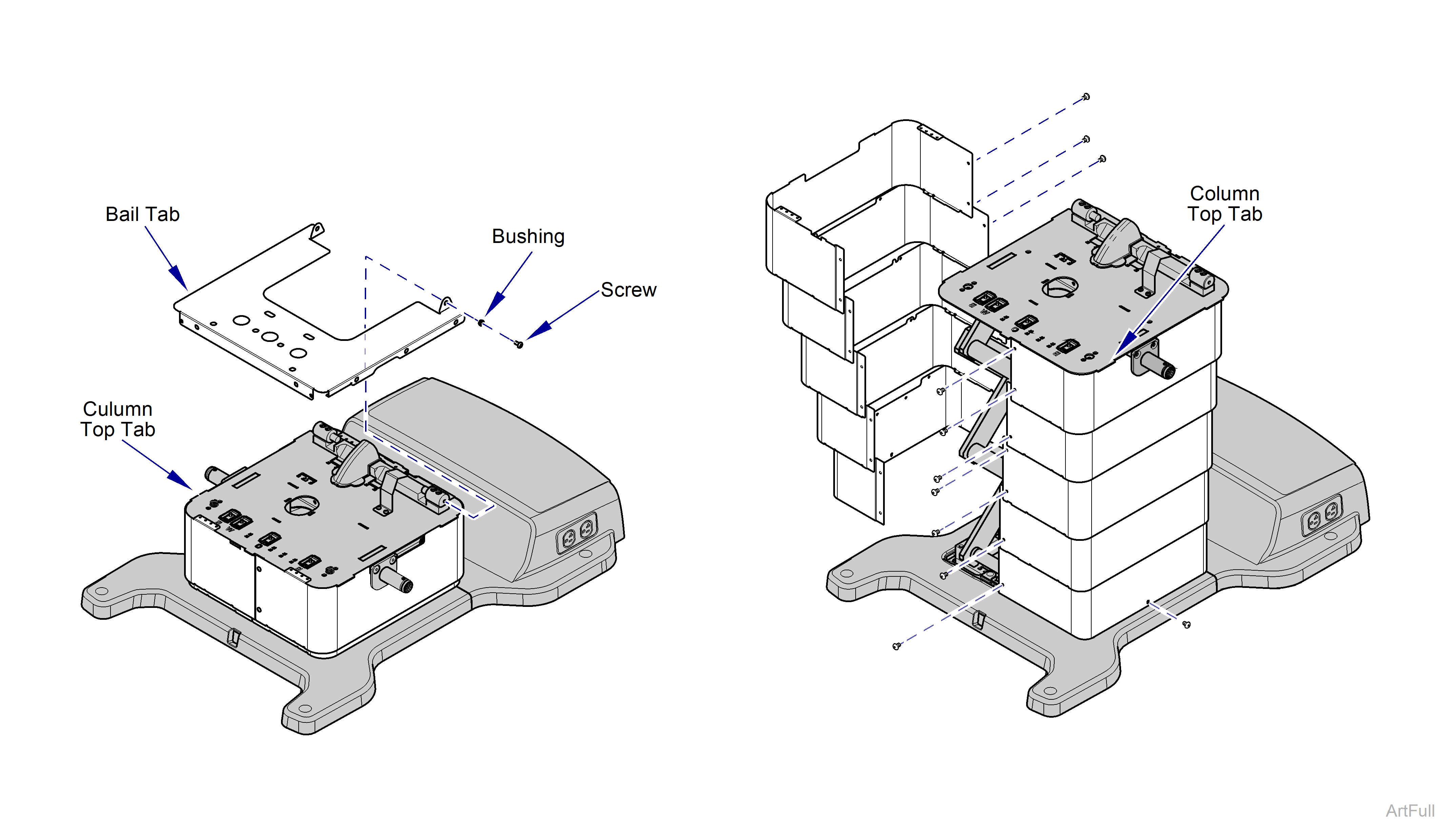

630 Chair Shroud Removal / Installation

1.Remove two screws and two bushings.

2.Slide bail forward and remove.

Equipment Alert

Be sure front bail tabs capture the column top tabs.

1.Position bail on top of column.

2.Secure with two bushings and two screws.

1.Lower base completely, then raise four to six inches.

2. Remove screws from both ends of outer shrouds.

3. Pull shrouds outward to disengage tabs.

4.Repeat for middle and inner shrouds.

5. Remove two screws from inner shrouds.

Be sure shroud tabs stack on top of each other.

1.Position inner shrouds and secure with two screws.

2.Position middle and outer shrouds and secure with screws at both ends.
