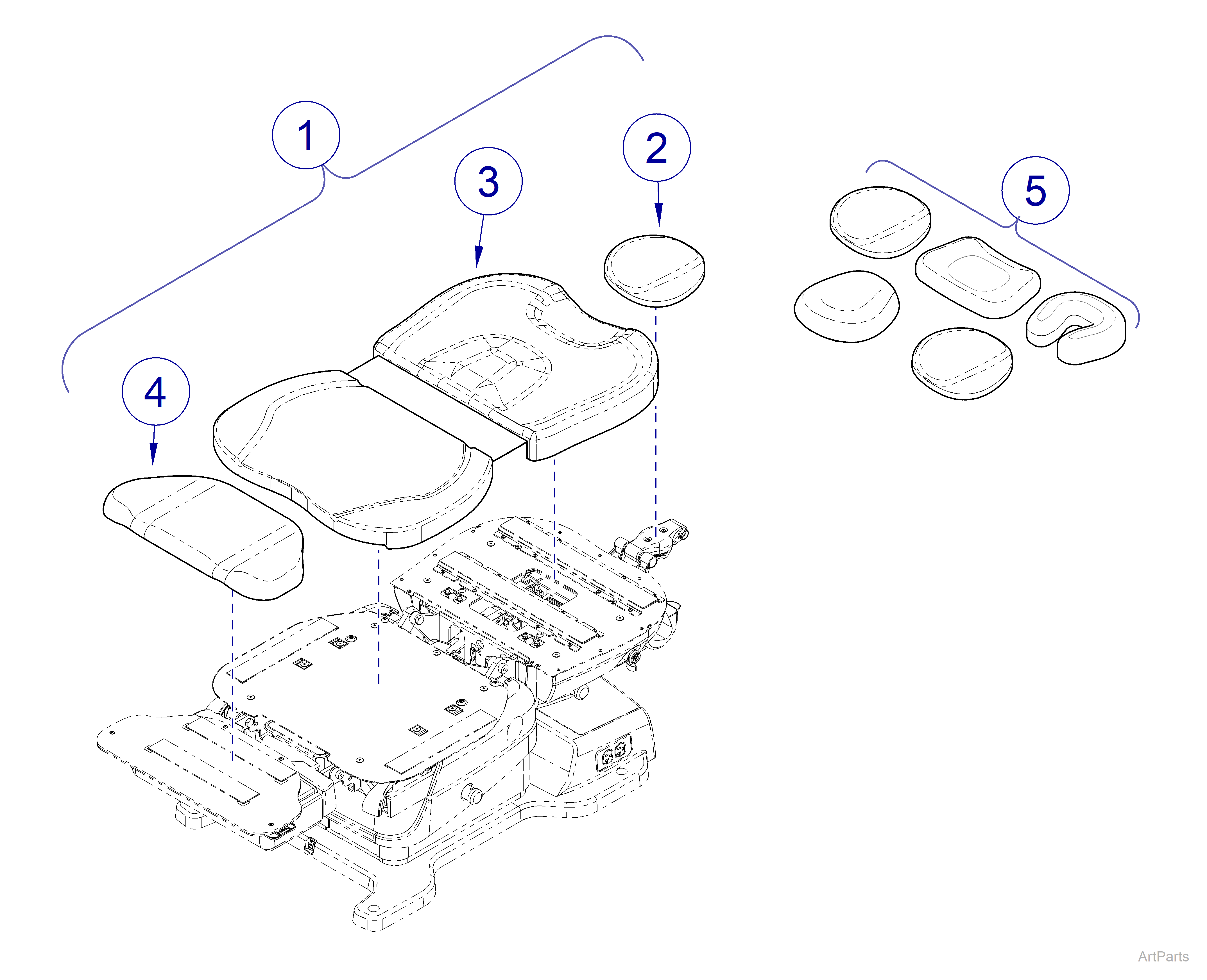

631 Chair Premium UltraFree Upholstery
|
Model |
631-001 |
| Serial Number | V2200 thru Present |
Refer to: Upholstery Color Options for the order number extension of your desired color.
| 631 Chair Premium UltraFree Upholstery | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Premium UltraFree Upholstery Kit Options - Includes items 2 thru 4 | ||
| 002-10610-xxx | 28 in. Premium UltraFree Upholstery | 1 | |
| 002-10612-xxx | 32 in. Premium UltraFree Upholstery | 1 | |
|
2 |
Refer to: |
Standard Headrest Assembly Optional Headrests |
- |
|
3 |
Back / Seat Section Upholstery Options | ||
| 028-10104-xxx | 28 in. Premium UltraFree Upholstery | 1 | |
| 028-10106-xxx | 32 in. Premium UltraFree Upholstery | 1 | |
| 4 | 028-10132-xxx | Foot Section Upholstery | 1 |
|
5 |
Refer to: | Optional Headrests | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
