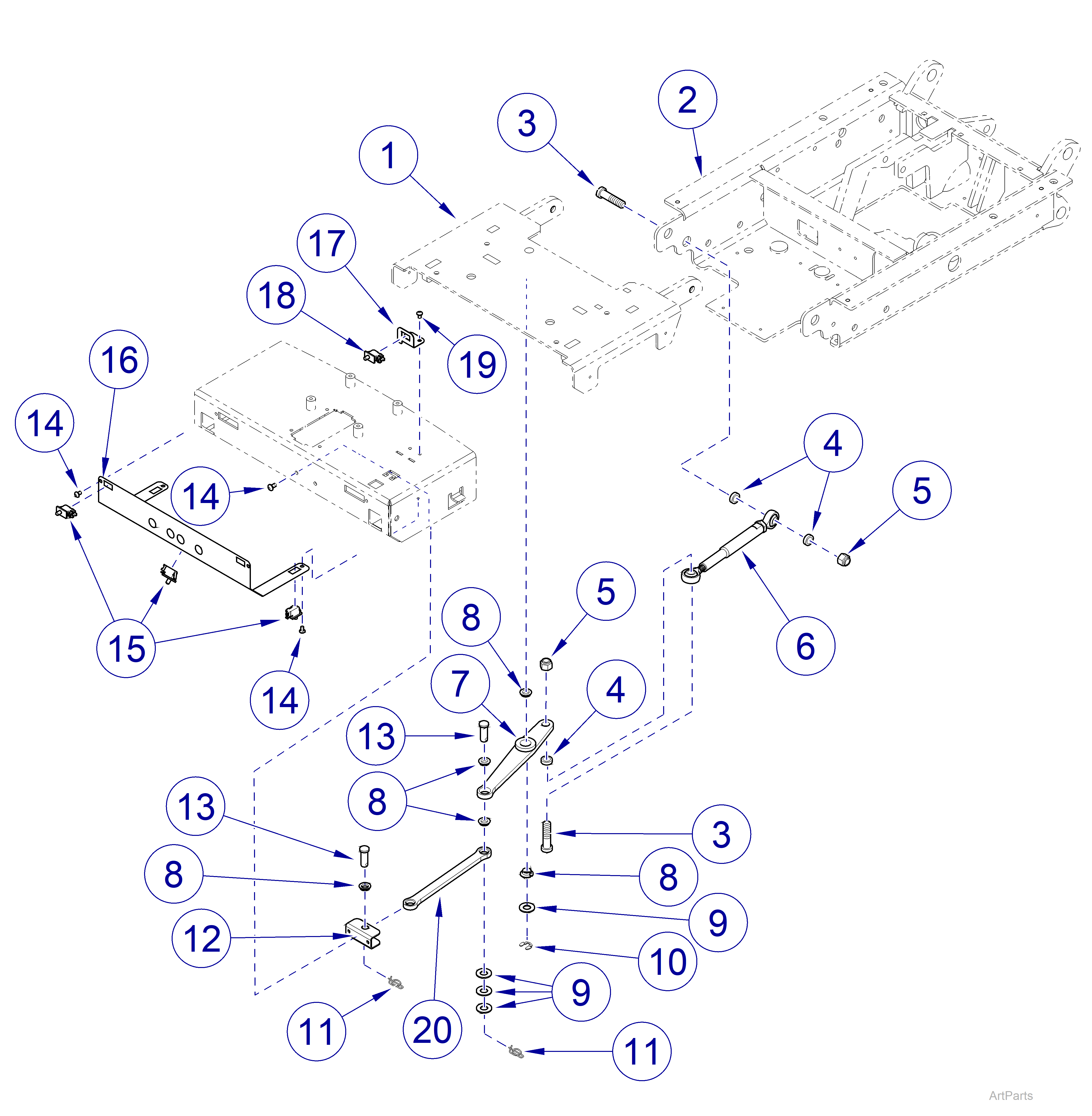

631 Chair Foot Section Linkage and Switches
|
Model |
631-001 |
| Serial Number | V2200 thru Present |
| Foot Section Linkage and Switches | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Refer to: | Foot Section - Main Components | - |
|
2 |
Refer to: | Seat Section | - |
| 3 | 040-0312-04 | 5/16-18 X 1-1/4 in. Hex Socket Low Head | 2 |
| 4 | 050-13420-00 | Spacer | 3 |
| 5 | 041-0312-01 | 5/16-18 Hex Nut, Nylon Insert | 2 |
| 6 | 029-11958-00 | Turnbuckle Assy | 1 |
| 7 | 029-11904-00 | Foot Link Assy | 1 |
| 8 | 016-1570-02 | Flange Bearing | 5 |
| 9 | 045-0001-49 | 3/8 in. Type-A Plain Washer | 4 |
| 10 | 042-0065-01 | Klipring 3/8 in. | 1 |
| 11 | 042-0063-00 | 3/8 in. Rue Ring, Cotter | 2 |
| 12 | 050-13296-00-813 | Mount, Foot Linkage | 1 |
| 13 | 042-0602-22 | Clevis Pin | 2 |
| 14 | 040-0010-47 | #10-24 X 3/8 in. Pan Head | 6 |
| 15 | 015-3025-00 | Switch - Normally Closed | 5 |
| 16 | 050-13251-00-813 | Bracket, Foot Switch | 1 |
| 17 | 050-8883-00 | Foot Indicator Switch Bracket | 1 |
| 18 | 015-3264-00 | Switch - Normally Open | 1 |
| 19 | 042-0010-24 | Pop Rivet | 2 |
| 20 | 050-13297-00-813 | Link, Foot | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
