Model

 631-001
Serial Number V2200 thru Present

631 Procedure Chair Tilt Actuator

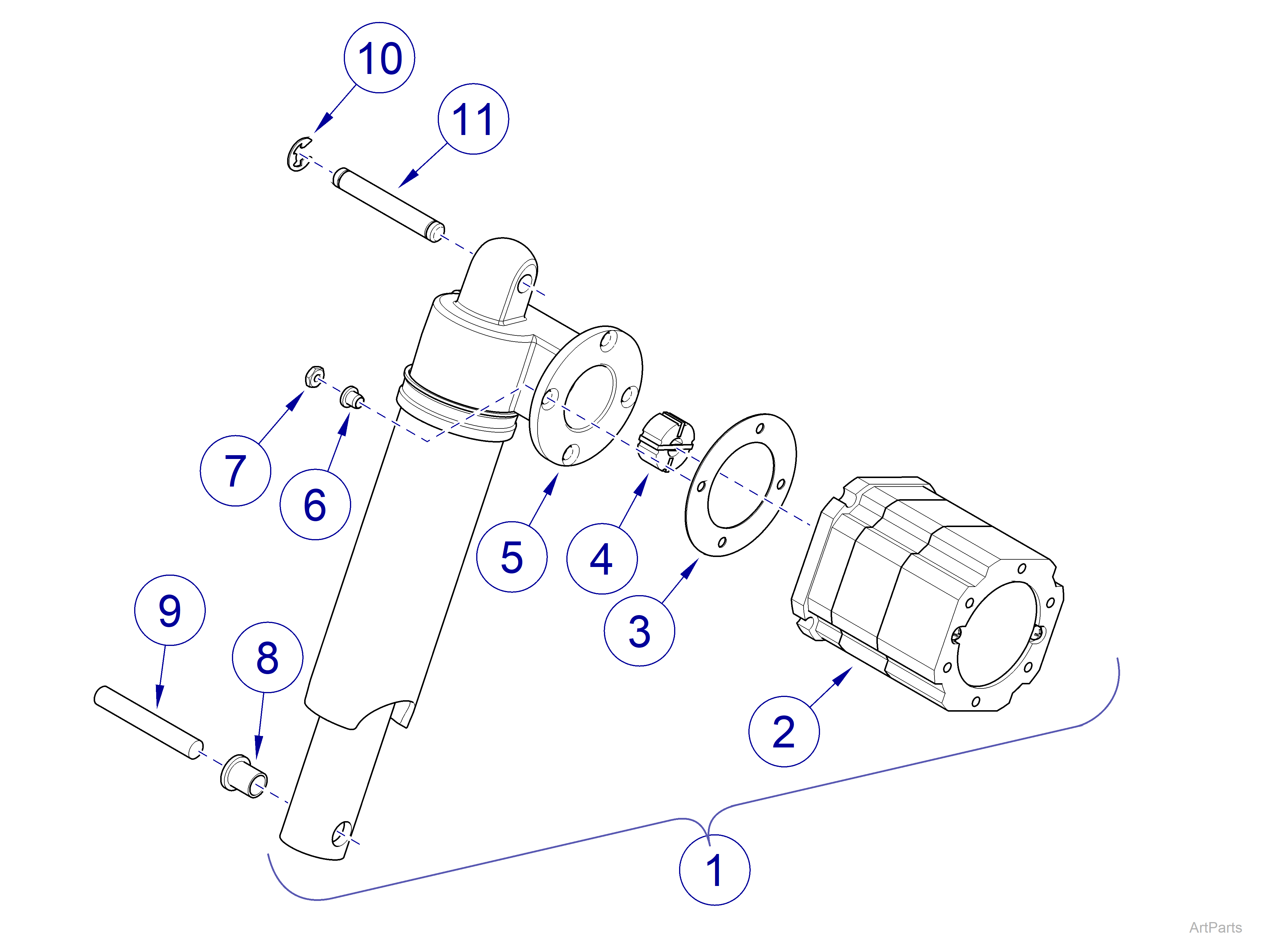

631 Chair Tilt Actuator
Item Part Number Description Qty
1 002-11259-01 Tilt Actuator w/ Motor - Includes items 2 thru 7 1

2

 015-3030-00 Tilt Brushless DC Motor 1

3

 053-1337-00 Motor Isolator 1

4

 016-0662-00 Motor Coupler 1
5 002-11259-00 Tilt Actuator Kit w/o Motor 1

6

 053-0198-00 Shoulder Washer 2

7

 041-0010-10 Lock Nut #10-32 2

8

 016-0131-32 Flanged Bearing 2

9

 057-1347-00 Actuator Pin 1

10

 042-0007-00 E-Ring 1

11

 042-10063-00 Clevis Pin, Headed 1

12

 015-0016-00 Wire Tie - Not Shown 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
